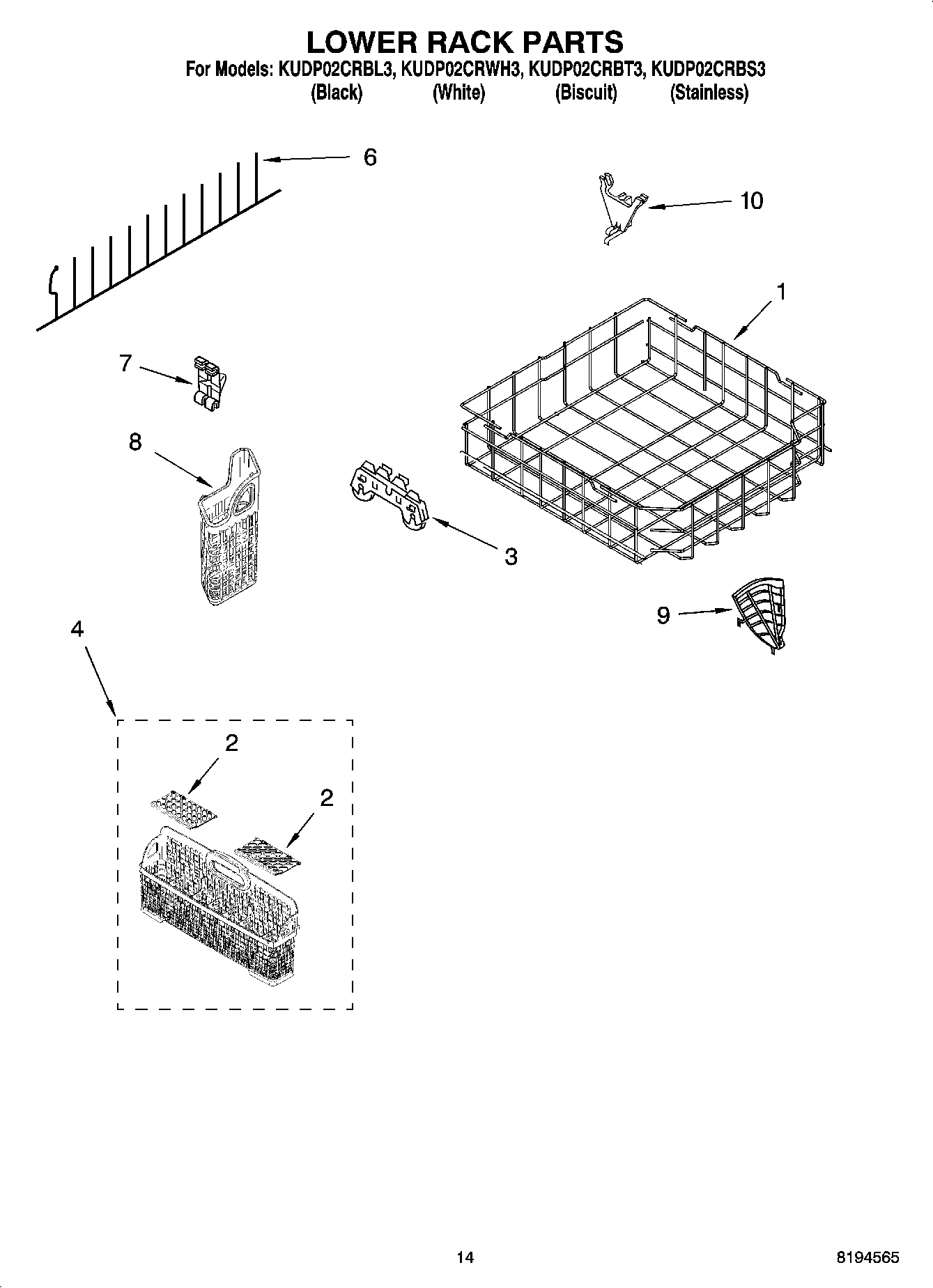

KUDP02CRBL3 11 – LOWER RACK PARTS, OPTIONAL PARTS (NOT INCLUDED)

KUDP02CRBL3 11 – LOWER RACK PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

KUDP02CRBL3 11 – LOWER RACK PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
350930 Whirlpool White Spray Paint
8212489 Whirlpool Dishwasher Panel
W10202939 Whirlpool Touch Up
WP676453 Whirlpool Dishwasher Touch-Up
WP676455 Whirlpool Dishwasher Touch-Up
Side Panel Kits (White)
Side Panel Kits (Black)
Side Panel Kits (Biscuit)
Side Panel Kits (Stainless Steel)
Towel Bar Handle Kit (Stainless Steel)
WPL ARI114936A
WPL ARI114937A
8171477 Whirlpool Dishwasher Mounting Bracket
4396853 Whirlpool Dishwasher Touch-Up
4396840RC Whirlpool Gray Rack Repair Kit
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
WPL ARI114938A
4392899 Whirlpool Biscuit Touch-Up Paint
4392901 Whirlpool Biscuit Spray Paint
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
285006 Whirlpool Spray
72032 Whirlpool Touch Up Paint Black
3385556 Whirlpool Drain Hose
4317824 Whirlpool Dishwasher 5' 3 Wire Prong Power Cord Kit
4396838RC Whirlpool Rack Repair Kit White
4396277 Whirlpool Barrier Assembly
1W10728159 Whirlpool Dishwasher Lower Dishrack Assembly
28519663 Whirlpool Dishwasher Cover Assembly
28519695 Whirlpool Dishwasher Basket Cover
3WP8268713 Whirlpool Dishwasher Wheel
4WPW10190415 Whirlpool Dishwasher Basket Ware
6W10728160 Whirlpool Tine Assembly
7WP8531314 Whirlpool Dishwasher Retainer
8BASKET, UTENSIL
9WP8562069 Whirlpool Dishwasher Basket Ware
10WP8268523 Whirlpool Dishwasher Pivot Tine
