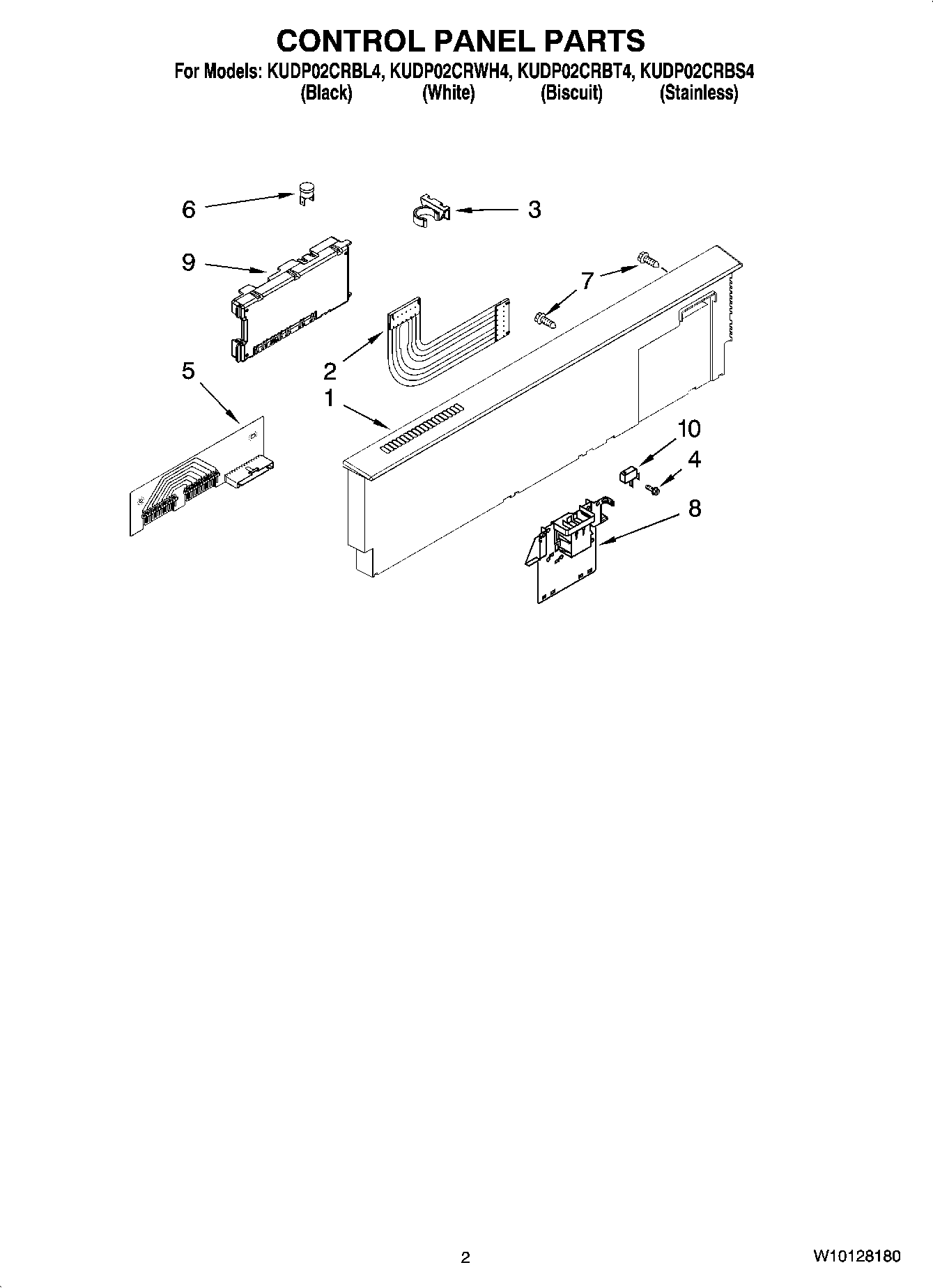

KUDP02CRBS4 02 – CONTROL PANEL PARTS

Products

Position	Product
1	Console Assembly (Includes Insert) (Biscuit)
1	Console Assembly (Includes Insert) (White)
1	WP8572354 Whirlpool Dishwasher Console
2	CABLE-RIBBON
3	Clip, BI-Metal
4	WP3400412 Whirlpool Dishwasher Screw
5	WP8531873 Whirlpool Dishwasher Control Board
6	W10258275 Whirlpool Dishwasher Bimetal Fuse
7	WPW10348409 Whirlpool Screw
8	8193830 Whirlpool Dishwasher Door Latch Switch Kit
9	WPW10084141-includeCORE Whirlpool WPW10084141 Dishwasher Electronic Control Board
10	WP8269209 Whirlpool Door Switch
