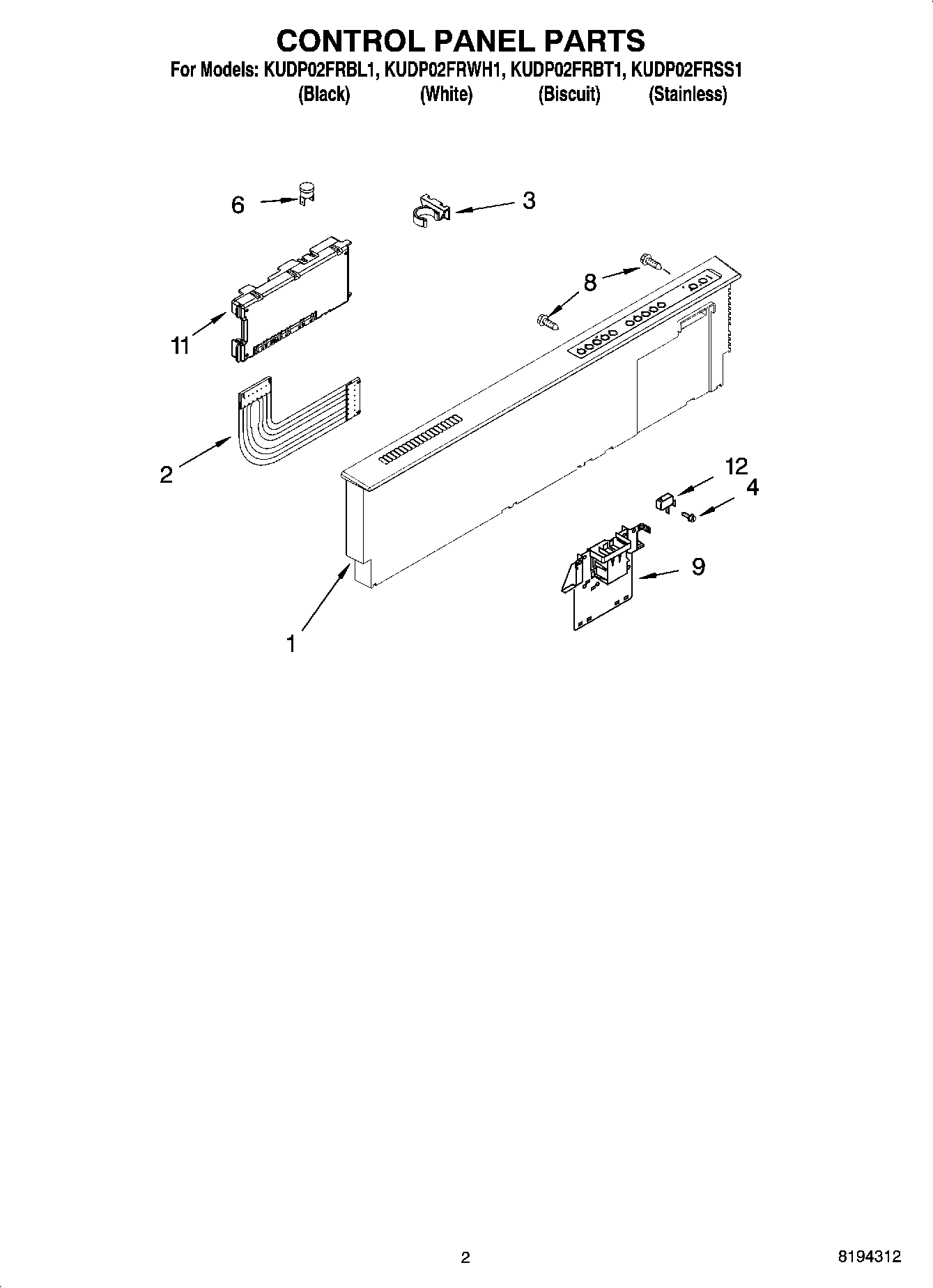

KUDP02FRBT1 02 – CONTROL PANEL PARTSadmin2025-04-26T12:59:21+00:00KUDP02FRBT1 02 – CONTROL PANEL PARTS ProductsPositionProduct1Console Assembly (Includes Insert) (Biscuit)1Console Assembly (Includes Insert) (Stainless)1Console Assembly (Includes Insert) (White)1Console Assembly (Includes Insert) (Black)2W10850507 Whirlpool Dishwasher Ribbon Cable3Clip, BI-Metal4WP3400412 Whirlpool Dishwasher Screw6W10258275 Whirlpool Dishwasher Bimetal Fuse8WPW10348409 Whirlpool Screw98193830 Whirlpool Dishwasher Door Latch Switch Kit11WPW10084141-includeCORE Whirlpool WPW10084141 Dishwasher Electronic Control Board12WP8269209 Whirlpool Door Switch
