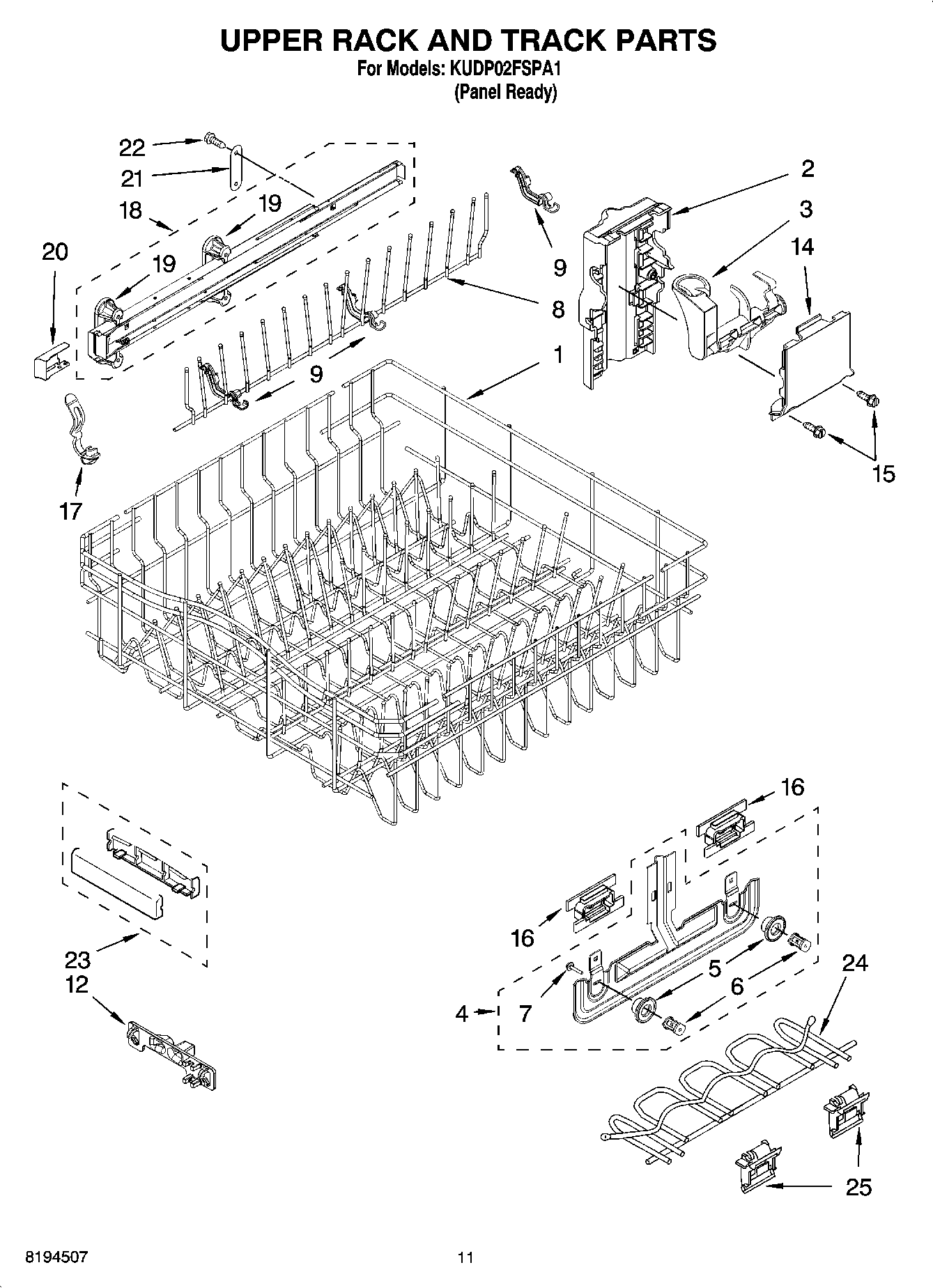

KUDP02FSPA1 09 – UPPER RACK AND TRACK PARTS

Products

Position	Product
1	W10727422 Whirlpool Dishwasher Dishrack
2	8193741 Whirlpool Dishwasher Adjuster P1
3	Actuator, Adjuster (Left Hand)
3	Actuator, Adjuster (Right Hand)
4	W10728567 Whirlpool Dishwasher Adjuster
5	WP8270138 Whirlpool Dishwasher Upper Wheel
6	WP8268703 Whirlpool Dishwasher Rack Axle
7	WP8281156 Whirlpool Dishwasher Screw
8	W10727426 Whirlpool Dishwasher Rack Tine
9	PIVOT-TINE
12	WP8539102 Whirlpool Dishwasher Positioner
15	WP9741232 Whirlpool Dishwasher Screw
16	WP8268738 Whirlpool Dishwasher Positioner
17	WP8539101 Whirlpool Dishwasher Clip
18	WPW10247511 Whirlpool Dishwasher Track
18	WPW10247512 Whirlpool Upper Slide Rail Left Side
19	Mount, Track (Also Order Item 21)
20	WP8573954 Whirlpool Dishwasher Stop Assembly
20	WP8573953 Whirlpool Dishwasher Stop Assembly
21	WP9743002 Whirlpool Dishwasher Gasket
22	WPW10348407 Whirlpool Dishwasher Screw
23	Handle, Dishrack
24	W11125975 Whirlpool Dishwasher Cup Shelf
25	Clip, Cupshelf
