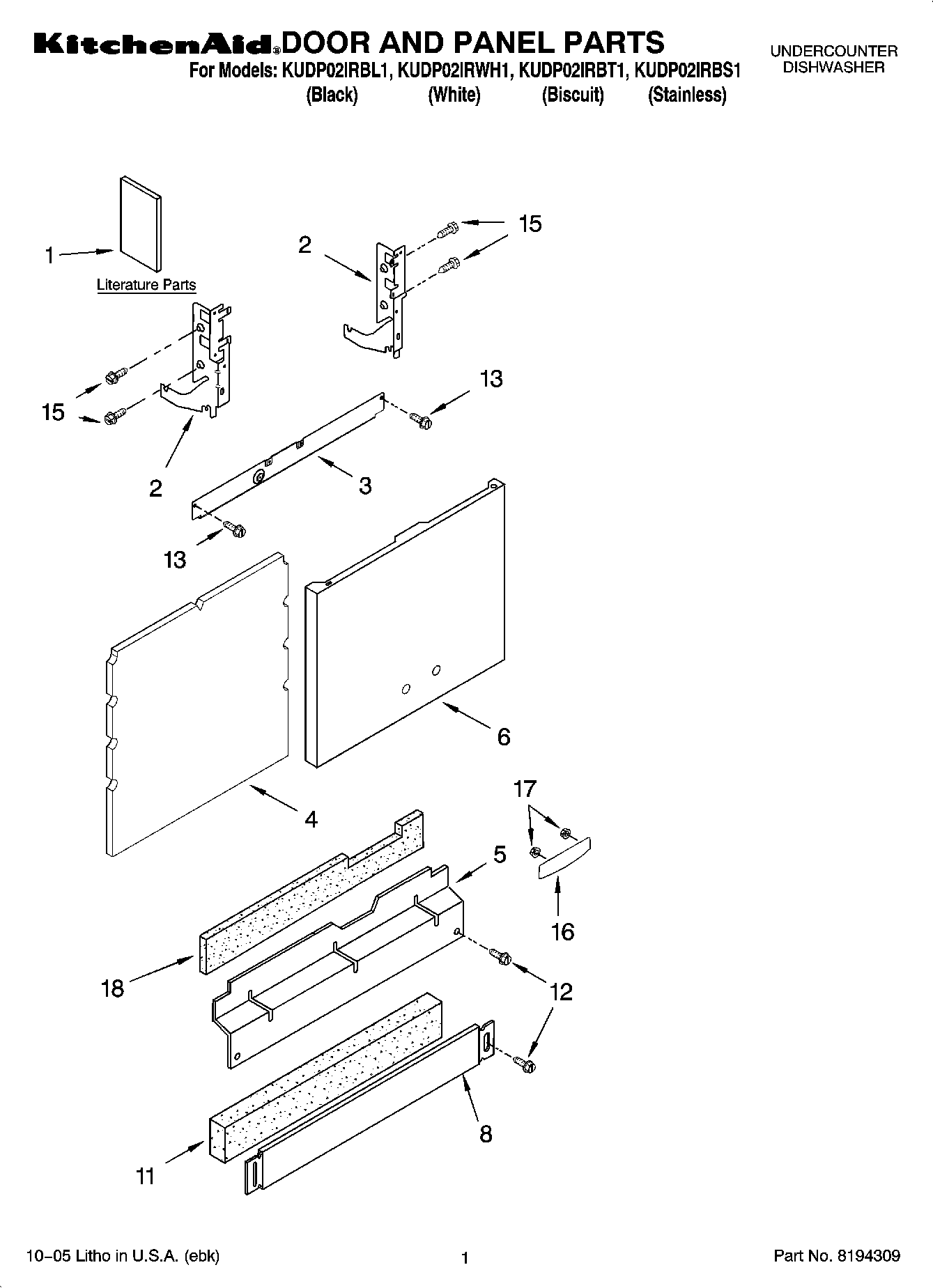

KUDP02IRBL1 01 – DOOR AND PANEL PARTS
Written by
in
KUDP02IRBL1 01 – DOOR AND PANEL PARTS
Products
Position
Product
1
Guide, Use & Care
1
Instructions, Installation
1
Energy Guide
1
Tech Sheet
1
DVD, Use & Care
1
Guide, Consumer Reference
2
W11612302 Whirlpool Dishwasher Door Hinge
2
W11612303 Whirlpool Door Hinge
3
Stiffener, Door
4
WPW10073520 Whirlpool Dishwasher Insulation Pad
5
W10871198 Whirlpool Dishwasher Panel
5
W10909066 Whirlpool Dishwasher Panel
6
W10301577 Whirlpool Outer Door Panel
6
Panel Front (Includes Item 6) (Black)
6
Panel Front (Includes Item 6) (White)
6
Panel Front (Includes Item 6) (Biscuit)
8
Toe Panel (Includes Item 11) (Biscuit)
8
WPW10586591 Whirlpool Dishwasher Toe Panel
8
W10909064 Whirlpool Dishwasher Black Access Panel
11
SHIELD
12
WP302868 Whirlpool Screw
13
WP489069 Whirlpool Compactor Screw
15
WP3400071 Whirlpool Screw
16
Nameplate (Biscuit)
16
Nameplate (White)
16
Nameplate (Black)
17
WP2004333 Whirlpool Refrigerator Nut
←
