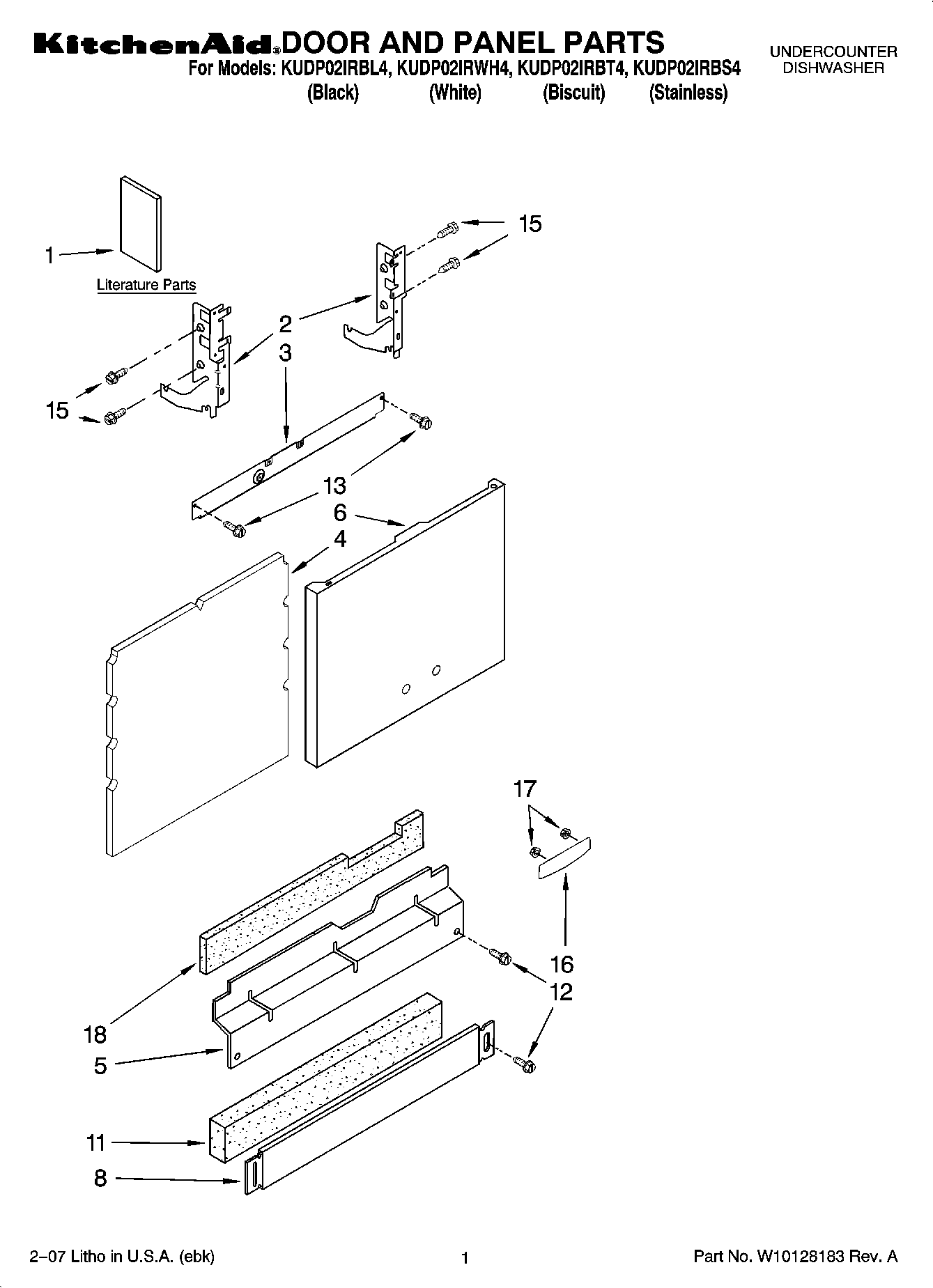

KUDP02IRBL4 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1Guide, Consumer Reference
1Guide, Use & Care
1Energy Guide
1Instructions, Installation
1Tech Sheet
2W11612303 Whirlpool Door Hinge
2W11612302 Whirlpool Dishwasher Door Hinge
3Stiffener, Door
4WPW10073520 Whirlpool Dishwasher Insulation Pad
5W10871198 Whirlpool Dishwasher Panel
5PANEL
5W10909066 Whirlpool Dishwasher Panel
6Panel, Full Front (Includes Items 16 & 17) (Black)
6Panel, Full Front (Includes Items 16 & 17) (Biscuit)
6Panel, Full Front (Includes Items 16 & 17) (White)
6W10301577 Whirlpool Outer Door Panel
8Toe Panel (Includes Items 7 & 11) (Biscuit)
8WPW10586591 Whirlpool Dishwasher Toe Panel
8W10909064 Whirlpool Dishwasher Black Access Panel
11SHIELD
12WP302868 Whirlpool Screw
13WP489069 Whirlpool Compactor Screw
15WP3400071 Whirlpool Screw
16Nameplate (Biscuit)
16Nameplate (White)
16Nameplate (Black)
17WP2004333 Whirlpool Refrigerator Nut
