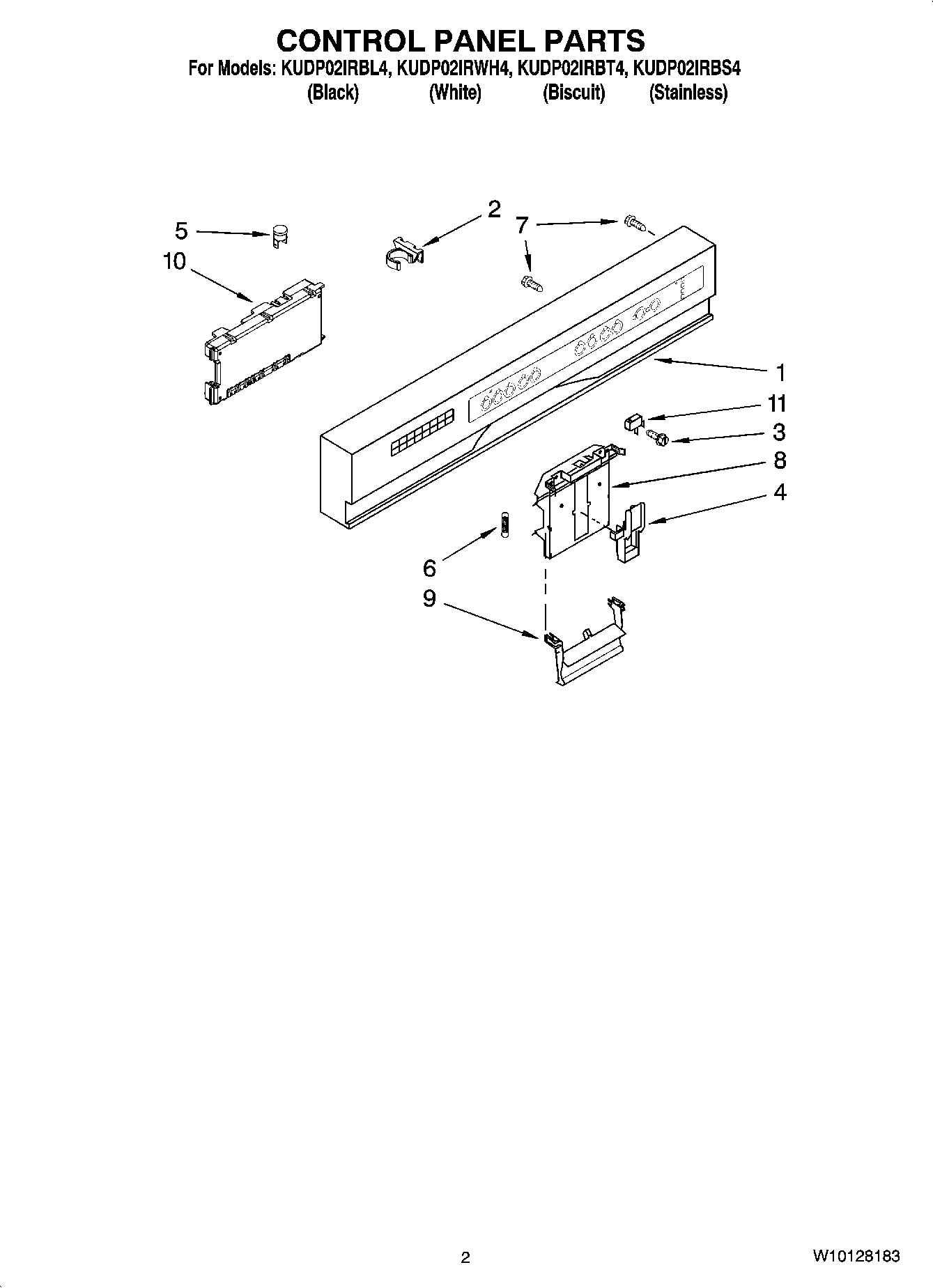

KUDP02IRBT4 02 – CONTROL PANEL PARTS

Products

PositionProduct
1Console Assembly (Includes Insert) (Biscuit)
1Console Assembly (Includes Insert) (White)
1Console Assembly (Includes Insert) (Black)
2Clip, BI-Metal
3WP3400412 Whirlpool Dishwasher Screw
4WP8524471 Whirlpool Dishwasher Actuator
5W10258275 Whirlpool Dishwasher Bimetal Fuse
6WP8268540 Whirlpool Door Handle Spring
7WPW10348409 Whirlpool Screw
88193882 Whirlpool Dishwasher Primary Latch Bolt
9WP8269117 Whirlpool Dishwasher Handle
10WPW10084141-includeCORE Whirlpool WPW10084141 Dishwasher Electronic Control Board
11WP8269209 Whirlpool Door Switch
