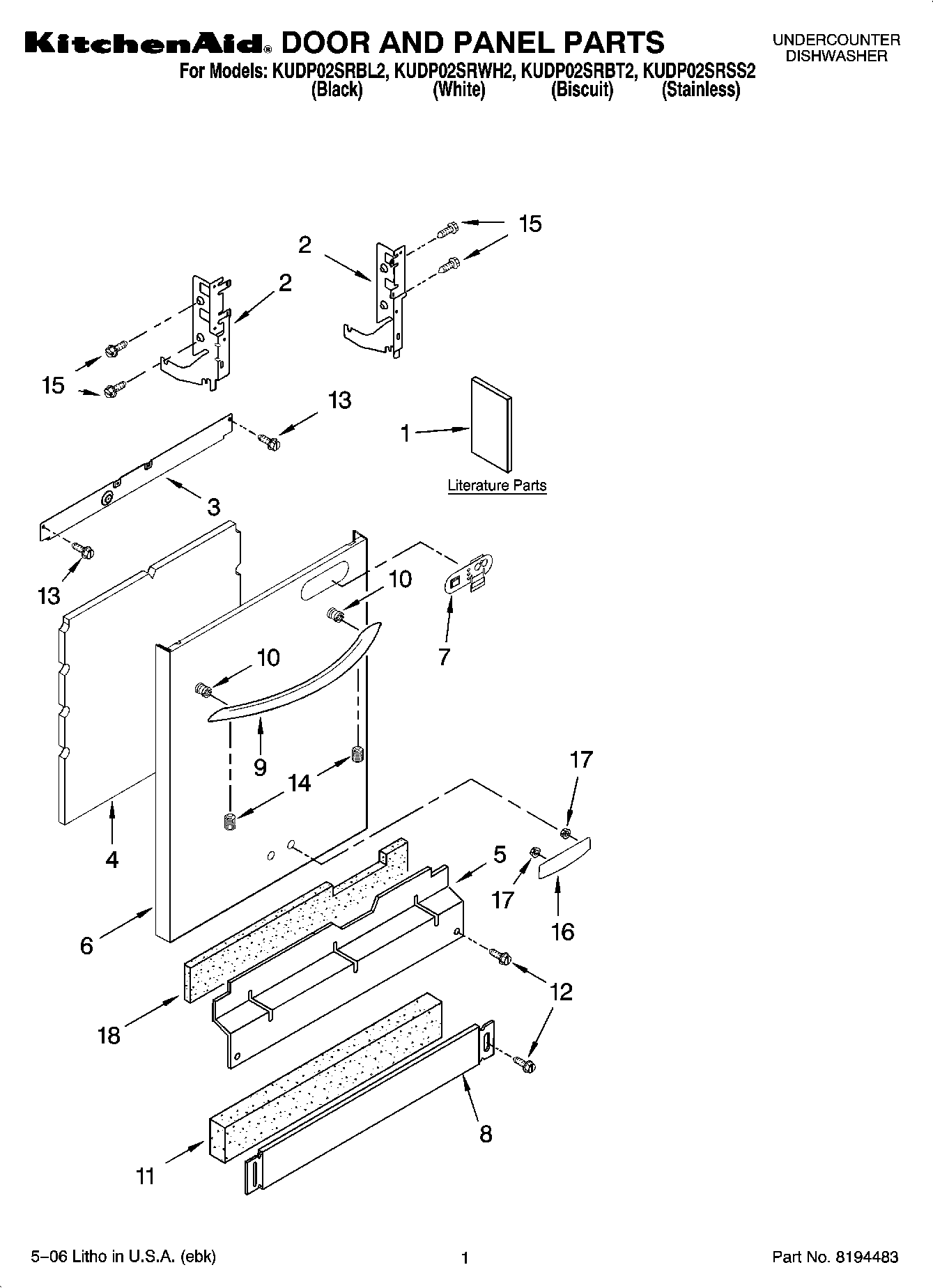

KUDP02SRBT2 01 – DOOR AND PANEL PARTS
Written by
in
KUDP02SRBT2 01 – DOOR AND PANEL PARTS
Products
Position
Product
1
Guide, Use & Care
1
DVD, Use & Care
1
Instructions, Installation
1
Tech Sheet
1
Energy Guide
1
Guide, Consumer Reference
2
W11612303 Whirlpool Door Hinge
2
W11612302 Whirlpool Dishwasher Door Hinge
3
Stiffener, Door
4
WPW10073520 Whirlpool Dishwasher Insulation Pad
5
PANEL
5
W10909066 Whirlpool Dishwasher Panel
5
W10871198 Whirlpool Dishwasher Panel
6
Panel, Full Front (Includes Items 16 & 17) (Black)
6
Panel, Full Front (Includes Items 16 & 17) (White)
6
Panel, Full Front (Includes Items 16 & 17) (Stainless)
6
Panel, Full Front (Includes Items 16 & 17) (Biscuit)
7
Overlay (Biscuit)
7
Overlay (Stainless)
7
Overlay (White)
7
Overlay (Black)
8
W10909064 Whirlpool Dishwasher Black Access Panel
8
Toe Panel (Includes Items 7 & 11) (Biscuit)
8
WPW10586591 Whirlpool Dishwasher Toe Panel
9
Handle (White)
9
Handle (Black)
9
W10083931A Whirlpool Dishwasher Stainless Steel Handle
9
Handle (Biscuit)
10
WP8564951 Whirlpool Dishwasher Stud
11
SHIELD
12
WP302868 Whirlpool Screw
13
WP489069 Whirlpool Compactor Screw
14
WP8534008 Whirlpool Screw
15
WP3400071 Whirlpool Screw
16
Nameplate (Biscuit)
16
Nameplate (White)
16
Nameplate (Black)
17
WP2004333 Whirlpool Refrigerator Nut
←
