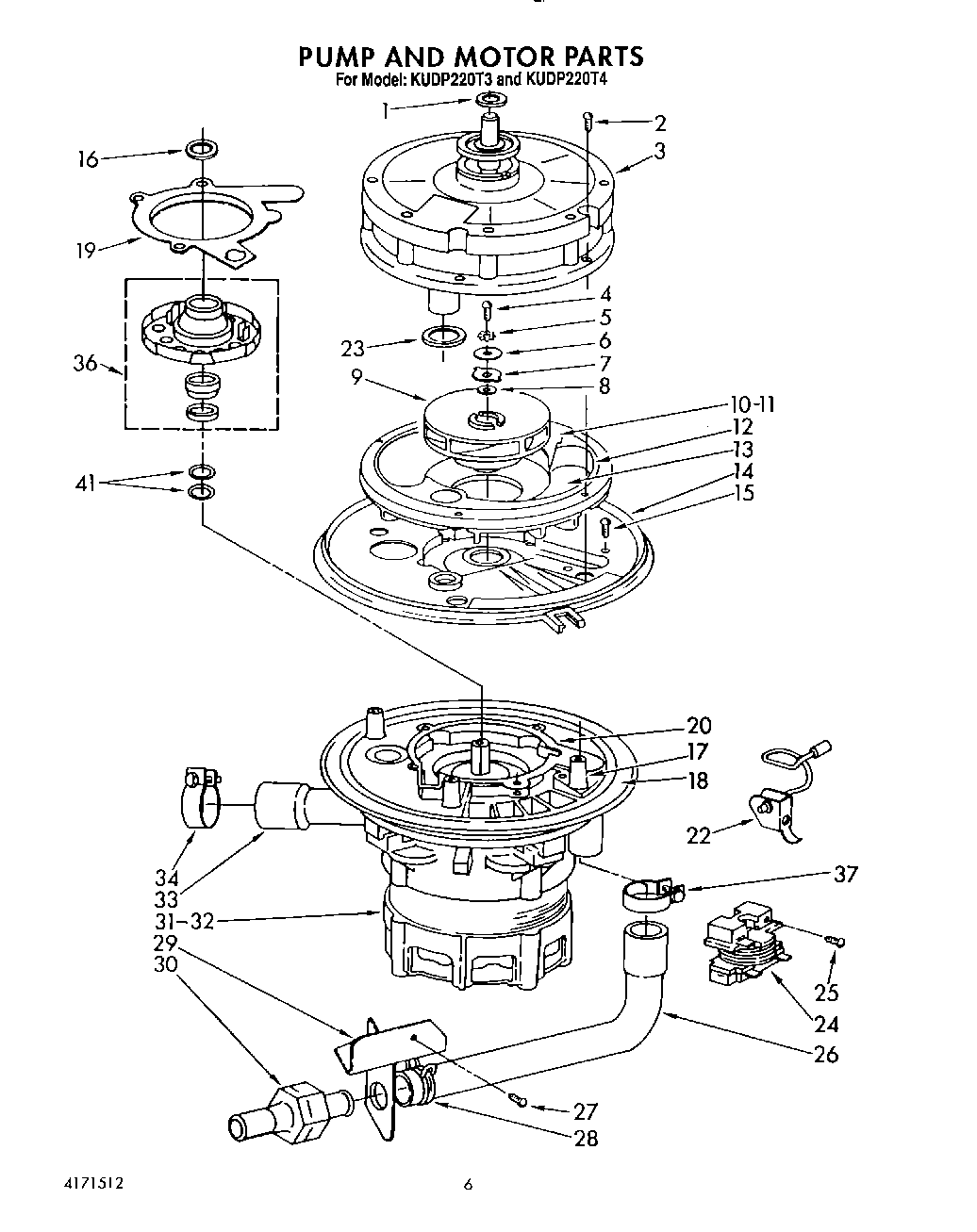

KUDP220T3 05 – PUMP AND MOTOR

Products

Position	Product
1	Washer
2	SCREW
3	Wash Pump Top (Includes Items 1 & 23)
4	Screw, 10-32
5	Washer
6	Washer, Spring (Impeller)
7	Washer, Impeller
8	``O`` Ring
9	Wash Impeller Assembly
10	Plate, Air Inlet Cover
11	Gasket, Cover Plate
12	Lower Pump Housing (Includes Items 13 & 23)
13	Seal, Wash Pump Ring
14	Fine Strainer
16	``O`` Ring
17	Motor Mounting Plate (Incls. Items 18 & 35)
18	Gasket, Motor Mounting Plate
19	Screw, 8-32 x 1/2
19	Drain Pump Top Assembly
20	Gasket, Drain Pump
22	Motor Clamp Assembly
23	Gasket, Venturi
24	Start Relay Kit (Includes Item 25)
25	Screw, 8-18 x 1-1/4
26	Tube - Flexible (Drain)
27	WP693304 Whirlpool Screw
28	Clamp, Hose (.937`` Dia.)
29	Bracket, Check Valve
30	Check Valve Assembly
31	Motor, Seal & Gasket Kit (Includes Items 18, 20 & 24)
32	Screw, 1/4-20 x 1
33	Connector, Overhead
34	Clamp, Hose (1.468`` Dia.)
36	Cutter Kit (Incls. Shaft Seal Kit)
37	3363365 Whirlpool Clamp
41	Shim Washer Kit
