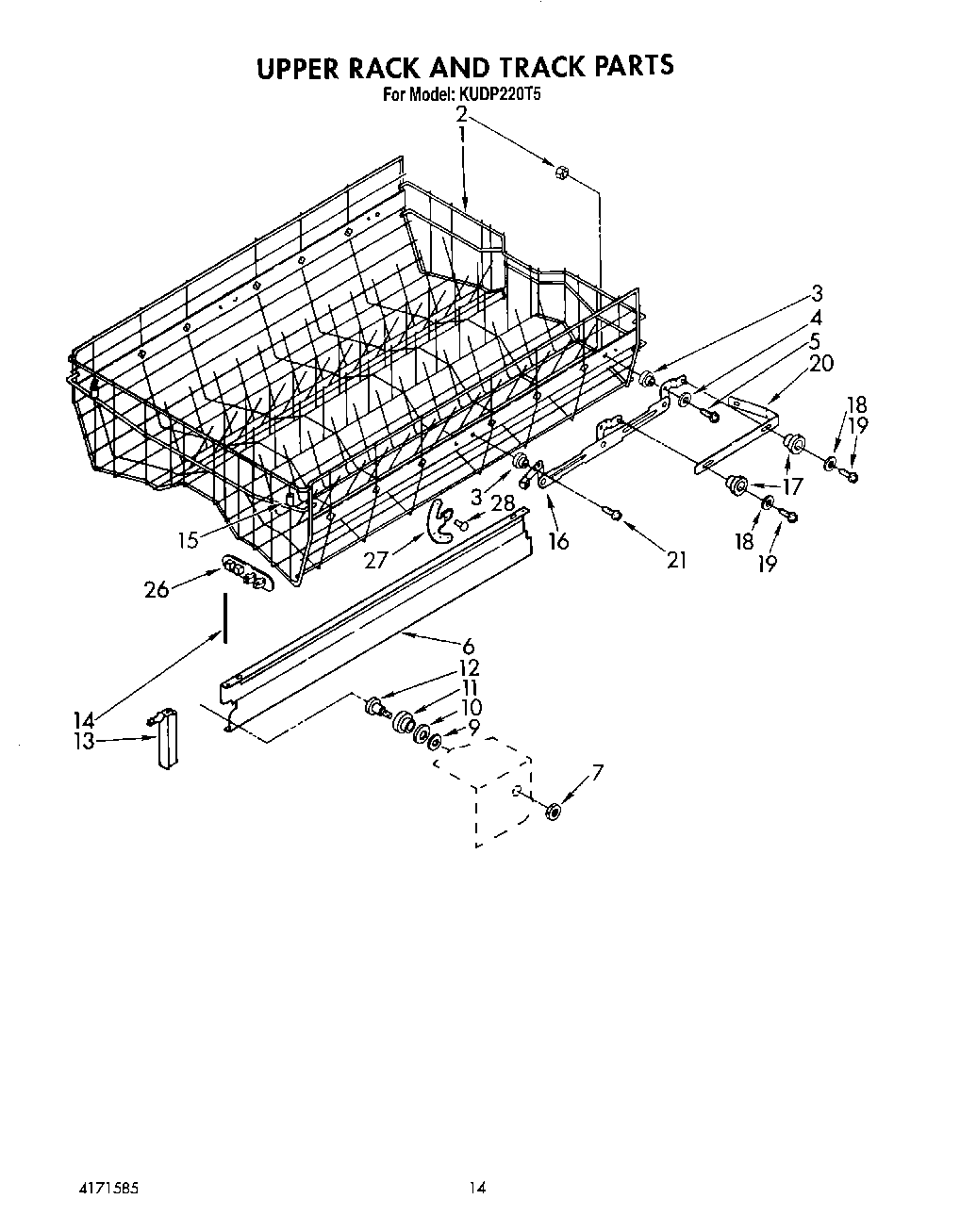

KUDP220T5 11 – UPPER RACK AND TRACK

Products

PositionProduct
1Complete Upper Rack Assembly (Includes Upper Sprayarm Parts)
1Upper Rack Assembly (Includes Items 2, 3, 4, 5 & 15)
2Nut, Roller
3Bearing & Spacer, Rack Roller
4Washer
6Track, Rack
7Nut, Lock
9Washer
10Washer, Cup
11Roller, Rack Track
12Screw. Track Roller
13Bumper, Rack Track
14Stud, Bumper Retaining
15Bumper, Upper Rack
16Track, Adjustable (L.H.)
16Track, Adjustable (R.H.)
17Roller, Upper Rack Track
18Washer
19Screw, 8-32 X 1/4 (4)
20Lift, Receiver (L.H.)
20Lift, Receiver (R.H.)
21Screw, 10-16 X 5/8
26Clip, Wash Arm Guard
27Rackstop (L.H.)
27Rackstop (R.H.)
28Rivet
