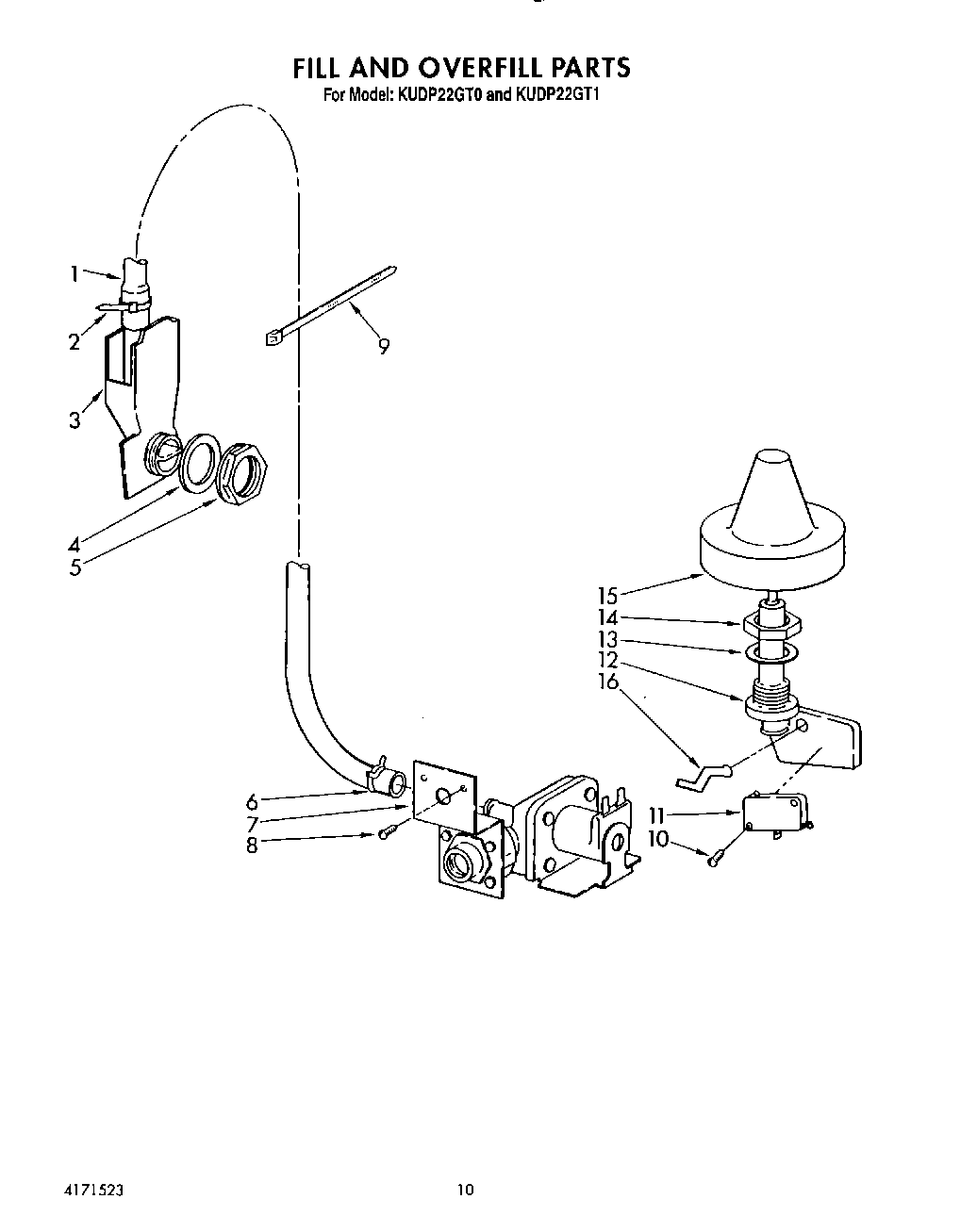

KUDP22GT0 08 – FILL AND OVERFILL

Products

Position	Product
1	Hose, Flexible (Fill Valve to Air Gap)
2	Clamp, Hose
3	Air Gap, Fill Assembly (Includes Items 1 & 2)
4	Gasket, Rinse Agent Dispenser
5	Nut, Rinse Agent Dispenser
6	Clamp, Hose
7	WP4171000 Whirlpool Dishwasher Inlet Valve
8	WP693304 Whirlpool Screw
9	Strap (Flexible Connector to Tank)
10	Screw
11	WP9743413 Whirlpool Dishwasher Switch
12	W10207863 Whirlpool Dishwasher Switch
13	WP8531743 Whirlpool Dishwasher Float Switch Base Gasket
14	Nut, Standpipe
15	Float & Retainer Assembly
16	Lever, Overflow Switch
