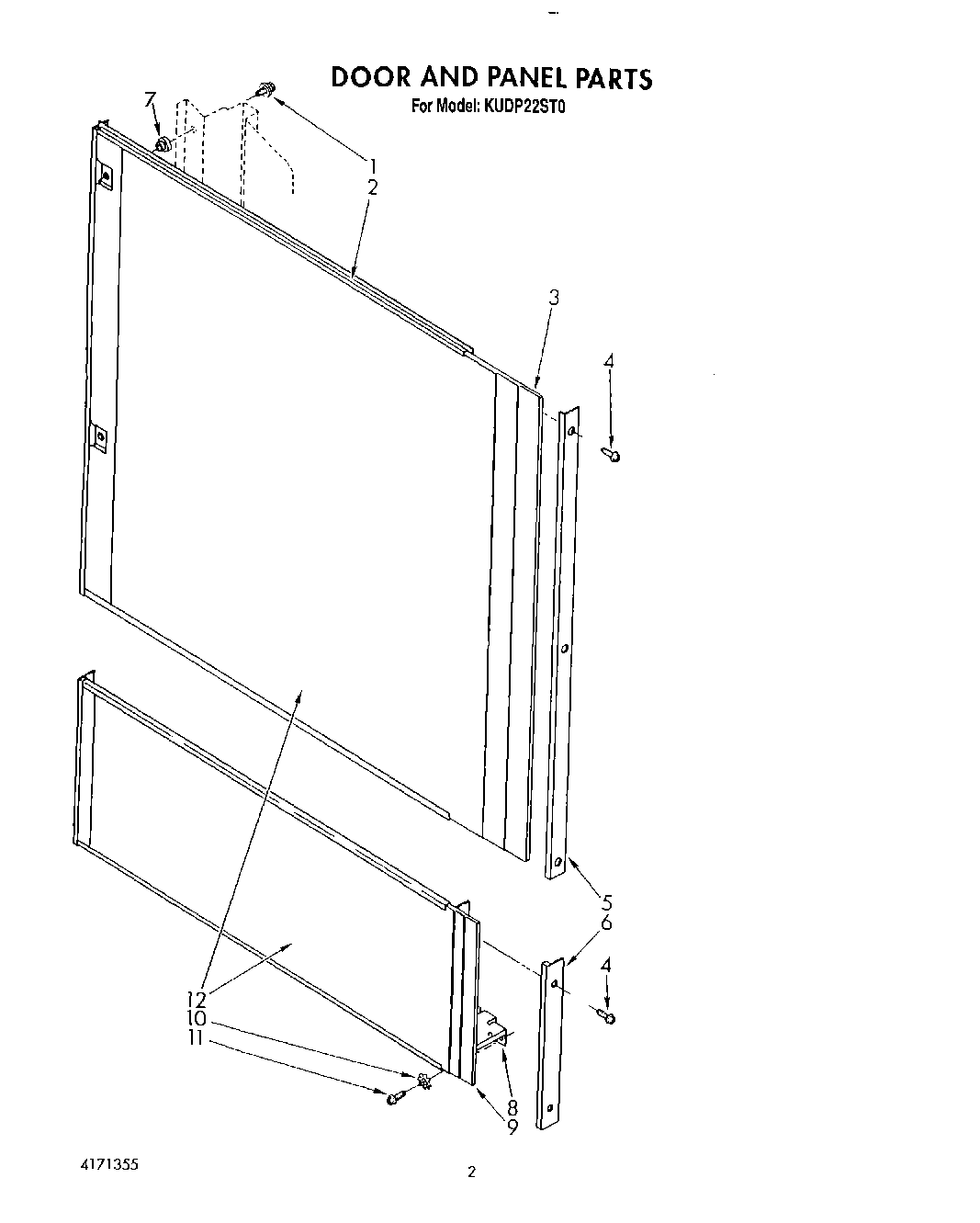

KUDP22ST0 02 – DOOR AND PANELadmin2025-04-26T12:59:00+00:00KUDP22ST0 02 – DOOR AND PANEL ProductsPositionProduct1Screw2Upper Mounting Panel Assembly (Includes Upper & Lower Trim)3Filler (Upper Panel)4Screw, 6 X 1/45Side Trim (Upper Panel)6Side Trim (Lower Panel)7Grommet, Panel8Lower Mounting Panel Assembly (Includes Upper & Lower Trim)9Filler (Lower Panel)10Lock Washer No.10 Ext. Shake- proof11WP693304 Whirlpool Screw12Panel Insert Kits (Stainless Steal (Optional))12Panel Insert Kits (Platinum/Toast (Optional))12Panel Insert Kits (Sand/Onyx Black (Optional))12Panel Insert Kits (Silver/Onyx Black (Optional))12Panel Insert Kits (Harvest Gold/Onyx Black)12Panel Insert Kits (Fresh Avocado/Coffee (Optional))12Panel Insert Kits (Almond/White)
