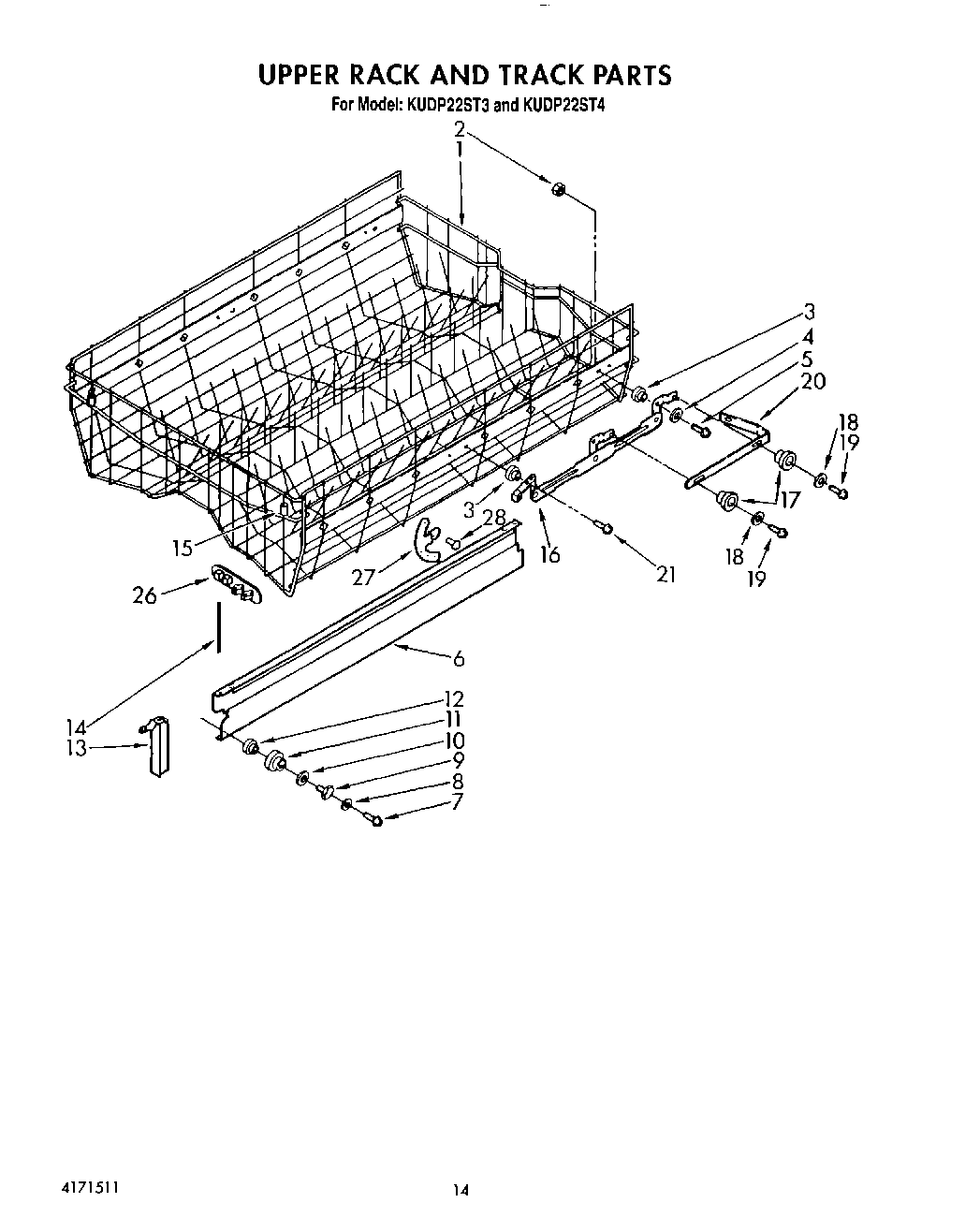

KUDP22ST4 11 – UPPER RACK AND TRACK

Products

Position	Product
1	Upper Rack Assembly (Includes Items 2, 3, 4, 5 & 15)
1	Complete Upper Rack Assembly (Includes Upper Sprayarm Parts)
2	Nut, Roller
3	Bearing & Spacer, Rack Roller
4	Washer
6	Track, Rack
7	Screw, 10-16 X 3/8
8	Gasket, Rack Stud
9	Stud, Rack Roller
10	Washer, Roller Spacing
11	Roller, Rack Track
12	Bushing, Rack Roller
13	Bumper, Rack Track
14	Stud, Bumper Retaining
15	Bumper, Upper Rack
16	Track, Adjustable (R.H.)
16	Track, Adjustable (L.H.)
17	Roller, Upper Rack Track
18	Washer
19	Screw, 8-32 X 1/4 (4)
20	Lift, Receiver (L.H.)
20	Lift, Receiver (R.H.)
21	Screw, 10-16 X 5/8
26	Clip, Wash Arm Guard
27	Rackstop (R.H.)
27	Rackstop (L.H.)
28	Rivet
