KUDP230BWH0 03 – CONTROL PANEL, LIT/OPTIONAL

KUDP230BWH0 03 – CONTROL PANEL, LIT/OPTIONAL

Written by

in

KUDP230BWH0 03 – CONTROL PANEL, LIT/OPTIONAL

Products

Position	Product
	350930 Whirlpool White Spray Paint
	WPL LIT9742003
	WPL LIT9741871
	WPL 4172056
	W10840471 Whirlpool Dishwasher Touch Up
	Tine Tip Repair Kit (Blue-Enough For Two Complete Dishracks)
	Kit, Epoxy Patch (White)
	Adjustable Kickboard Kit
	White (R.H.)
	Almond (R.H.)
	White (L.H.)
	Almond (L.H.)
	WPL 9741358
	WPL LIT9742114
	WPL LIT9742211
	285006 Whirlpool Spray
	WPL 72112
	350956 Whirlpool Spray Assembly
	72017 Whirlpool Appliance Touch-Up Paint White
	799344 Whirlpool Refrigerator Paint
	WP72107 Whirlpool Touchup
	Almond (Uncut)
	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
	72113 Whirlpool Touch-Up Paint
	Golden Harvest
	Golden Harvest (Uncut)
	Toast
	Paint, Spray (13 Oz.) (Platinum)
	Enamal, Toast (1 Qt. Uncut)
	Platinum (Uncut)
	Wood Top Kit

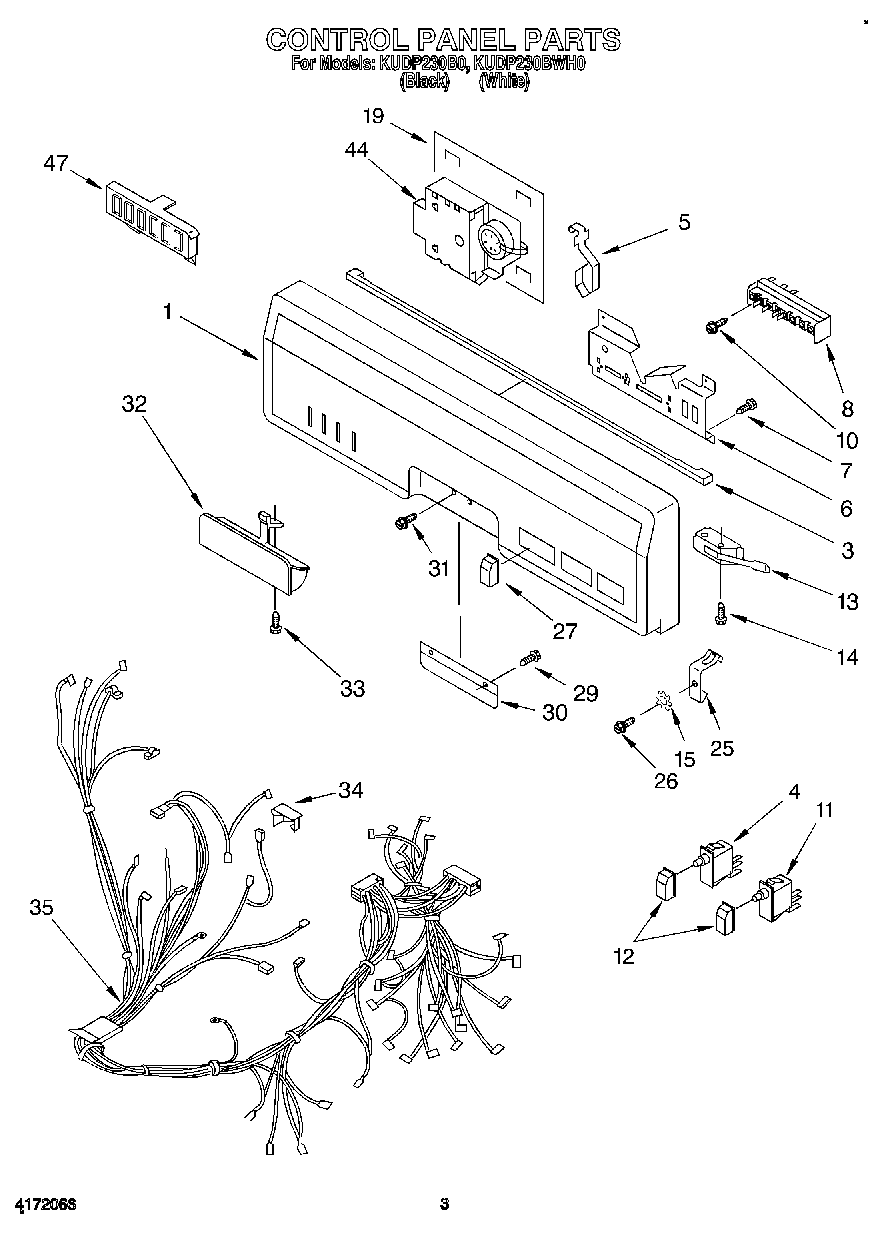

1	Control Panel, (Includes Insert, No.3 Seal, & No.30 Bracket (White Model)
1	Control Panel, (Includes Insert, No.3 Seal, & No.30 Bracket (Black Model)
3	Seal, Control Panel
4	Switch, Time Delay
5	Spring, Switch Cancel
6	Bracket, Program Switch
7	SCREW
8	Switch, Program
10	Screw, 10-16 X 5/8
11	Switch, start
12	Button, Time Delay (2) (White Model)
12	Button, Time Delay (2) (Black Model)
13	Switch, Interlock
14	W11596033 Whirlpool Microwave Screw
15	4159493 Whirlpool Lockwasher
19	Barrier, Timer
25	Clip, Grounding (Front Panel)
26	Screw, 8-18 x 1/2
27	Button, Program Switch (6) (Black Model)
27	Button, Program Switch (8) (White Model)
29	Screw
30	Bracket, Support
31	WP912618 Whirlpool Dishwasher Screw
31	Screw, 8-32 x 1/2 (Black Model)
32	Handle, Latch (Black Model)
32	Handle, Latch (White Model)
33	Screw, 10-32 x 5/8
34	Clip, Harness Guide
35	WPL 4159349
35	Wiring Harness (Main)
44	Timer Assembly
47	Light Package Assembly
