KUDP23HB0 01 – DOOR AND PANEL

KUDP23HB0 01 – DOOR AND PANEL

Written by

in

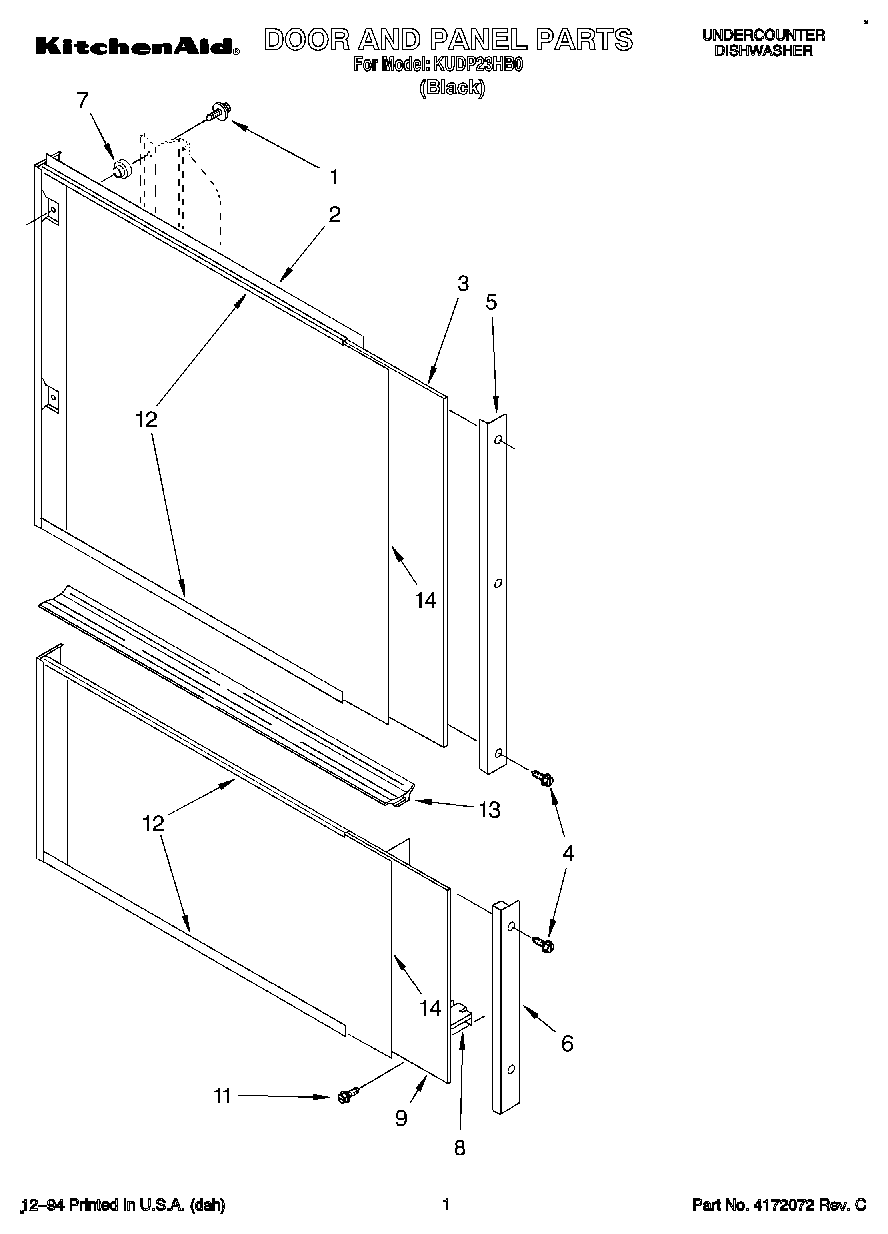

KUDP23HB0 01 – DOOR AND PANEL

Products

PositionProduct
1Screw
2Upper Mounting Panel Assembly (Includes Upper & Lower Trim) (Black Model)
3Filler (Upper Panel)
4Screw (Black Model)
5Side Trim (Upper Panel) (Black Model)
6Side Trim (Lower Panel) (Black Model)
7Grommet, Panel
8Lower Mounting Panel Assembly (Includes Upper & Lower Trim) (Black Model)
9Filler (Lower Panel)
11Screw
12Trim, Panel (Upper & Lower) (Black Model)
13Channel, Evaporation
14Panel Insert Kits (OPTIONAL KITS) (Stainless Steel)
14Panel Insert Kits (OPTIONAL KITS) (Almond/White)
14Panel Insert Kits (OPTIONAL KITS) (Harvest Gold/Onyx Black)
14Panel Insert Kits (OPTIONAL KITS) (Harvest Gold/Almond)
14Panel Insert Kits (White/Black)
14Panel Insert Kits (OPTIONAL KITS) (Fresh Avocado/ Coffee)
