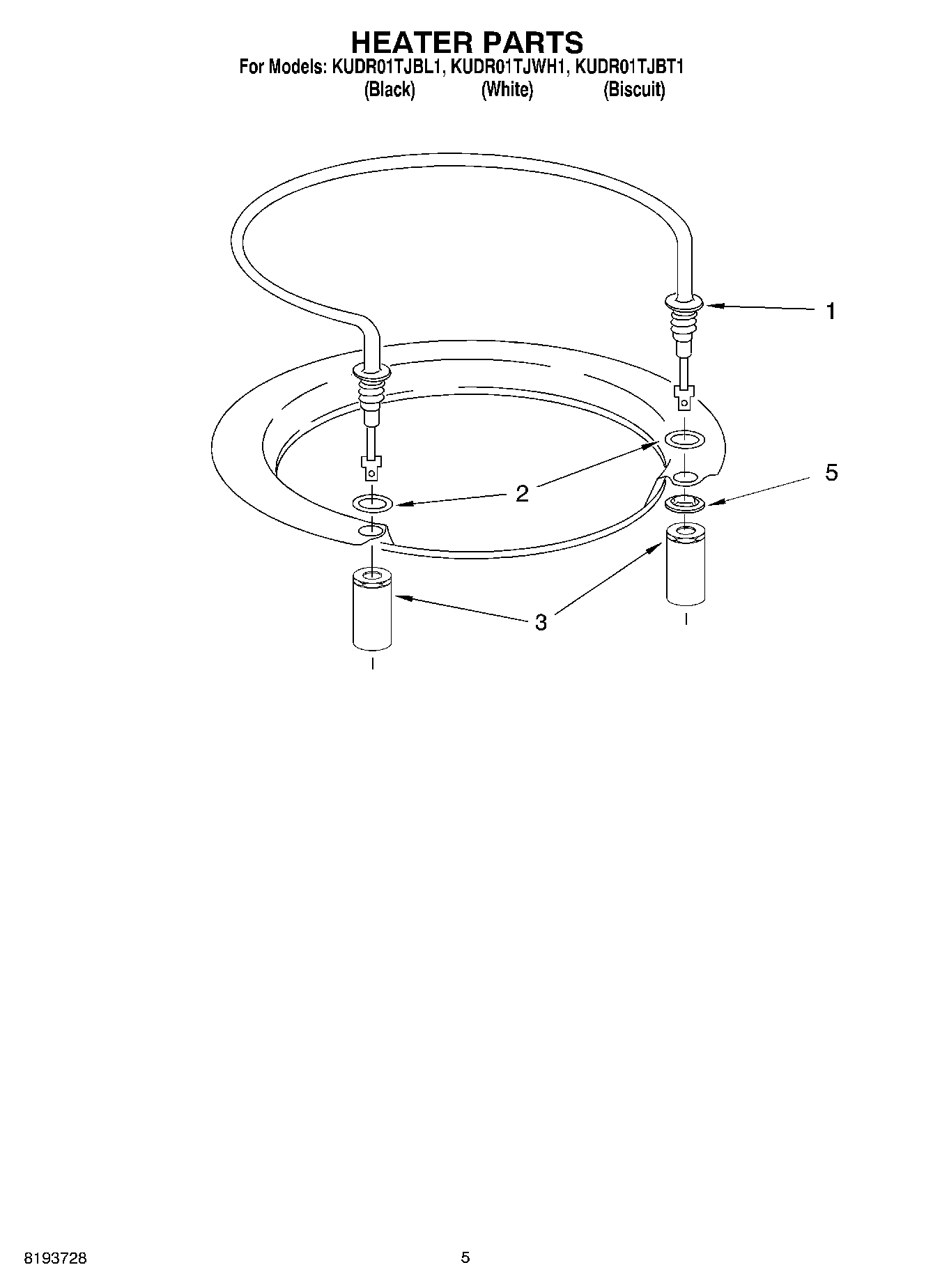

KUDR01TJBL1 05 – HEATER PARTS

Written by

Products

Position	Product
1	Heater Element Assembly (Also Includes Item 2)
2	WP717273 Whirlpool Dishwasher Rubber Washer
3	WPW10477552 Whirlpool Dishwasher Terminal Nut
5	Retainer, Spring Grip
5	NOTE: If heater element is removed, it must be replaced.
