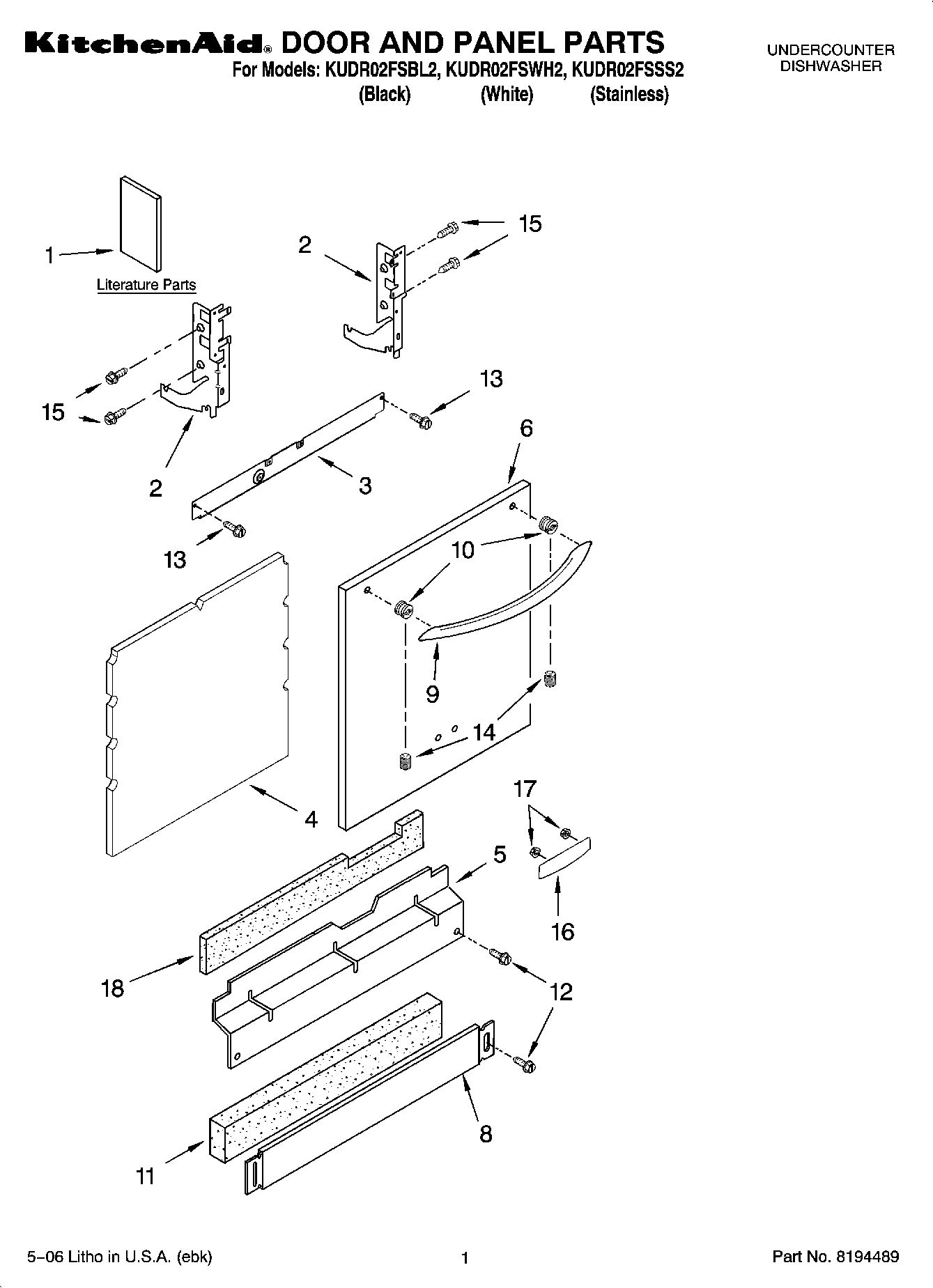

KUDR02FSBL2 01 – DOOR AND PANEL PARTS

Products

Position	Product
1	Guide, Consumer Reference
1	Instructions, Installation
1	DVD, Use & Care
1	Guide, Use & Care
1	Tech Sheet
1	Energy Guide
2	W11612302 Whirlpool Dishwasher Door Hinge
2	W11612303 Whirlpool Door Hinge
3	Stiffener, Door
4	WPW10073520 Whirlpool Dishwasher Insulation Pad
5	PANEL
5	W10909066 Whirlpool Dishwasher Panel
6	Panel, Full Front (Includes Items 16 & 17) (White)
6	Panel, Full Front (Includes Items 16 & 17) (Black)
6	Panel, Full Front (Includes Items 16 & 17) (Stainless)
8	WPW10586591 Whirlpool Dishwasher Toe Panel
8	W10909064 Whirlpool Dishwasher Black Access Panel
9	W10083931A Whirlpool Dishwasher Stainless Steel Handle
9	Handle (Black)
9	Handle (White)
10	WP8564951 Whirlpool Dishwasher Stud
11	SHIELD
12	WP302868 Whirlpool Screw
13	WP489069 Whirlpool Compactor Screw
14	WP8534008 Whirlpool Screw
15	WP3400071 Whirlpool Screw
16	Nameplate (White)
16	Nameplate (Black)
17	WP2004333 Whirlpool Refrigerator Nut
