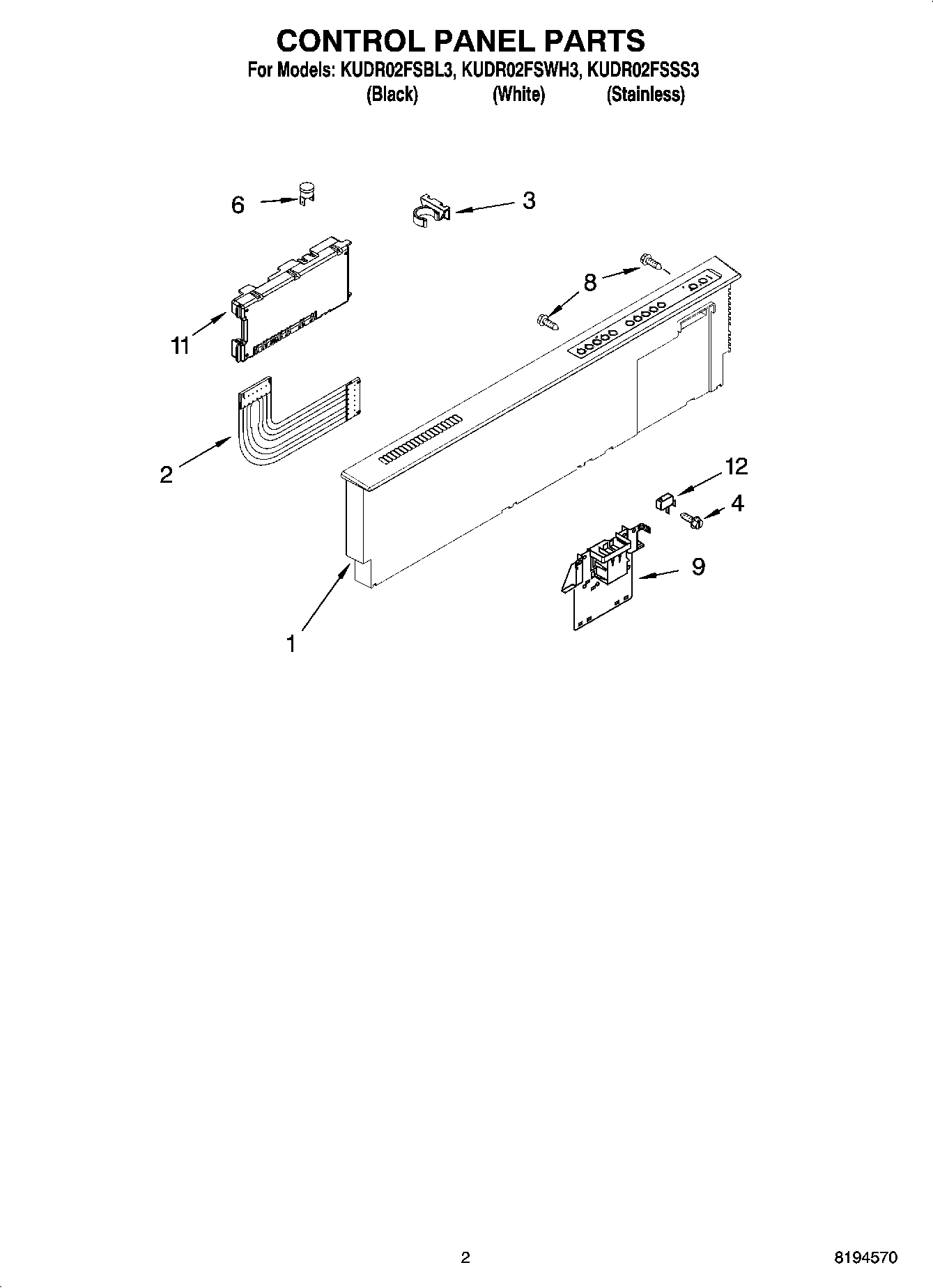

KUDR02FSBL3 02 – CONTROL PANEL PARTS

KUDR02FSBL3 02 – CONTROL PANEL PARTS

Written by

in

KUDR02FSBL3 02 – CONTROL PANEL PARTS

Products

PositionProduct
1Console Assembly (Includes Insert) (Stainless)
1Console Assembly (Includes Insert) (White)
1Console Assembly (Includes Insert) (Black)
2W10850507 Whirlpool Dishwasher Ribbon Cable
3Clip, BI-Metal
4WP3400412 Whirlpool Dishwasher Screw
6W10258275 Whirlpool Dishwasher Bimetal Fuse
8WPW10348409 Whirlpool Screw
98193830 Whirlpool Dishwasher Door Latch Switch Kit
11WPW10084141-includeCORE Whirlpool WPW10084141 Dishwasher Electronic Control Board
12WP8269209 Whirlpool Door Switch
