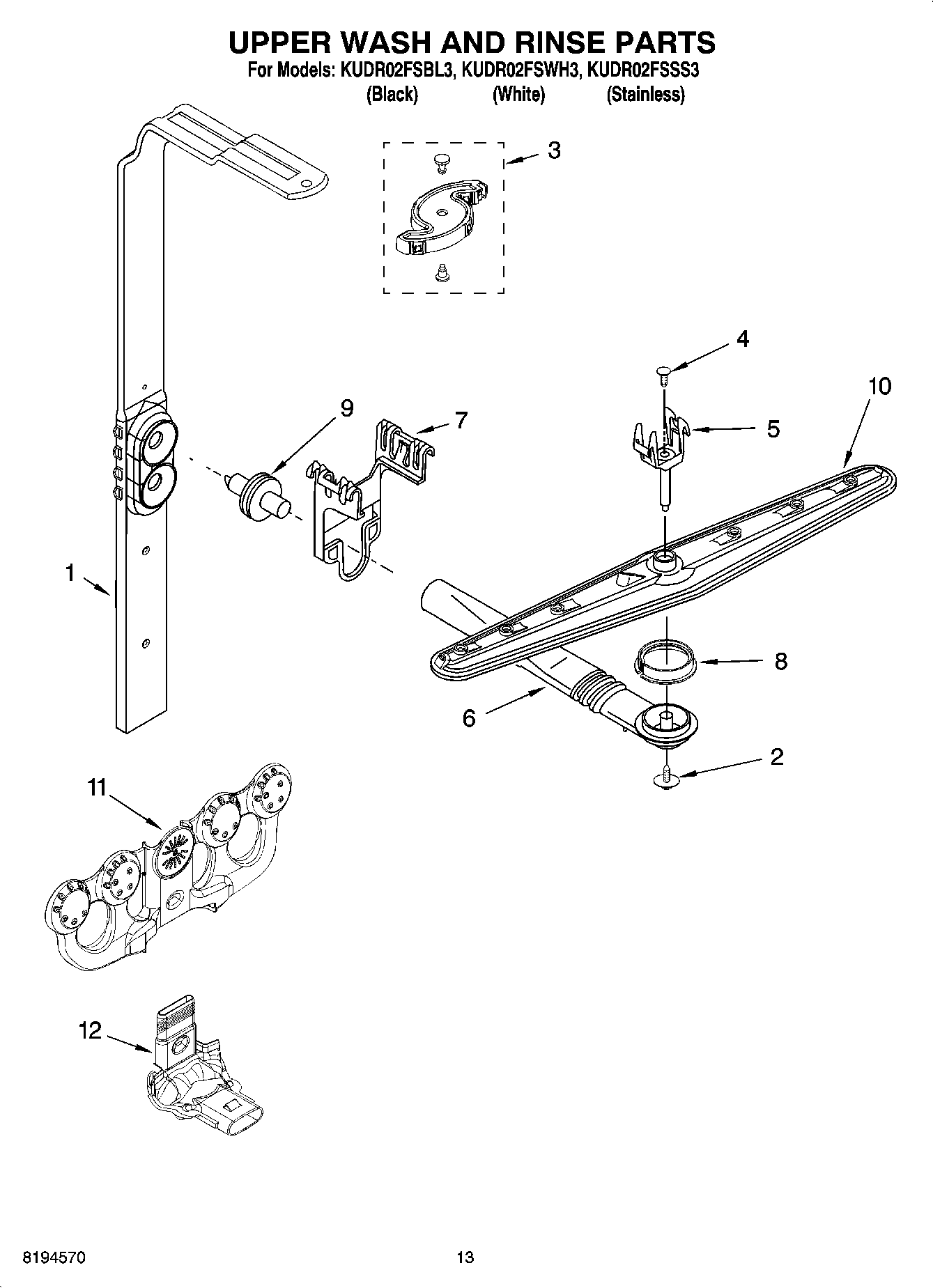

KUDR02FSBL3 10 – UPPER WASH AND RINSE PARTS

Products

Position	Product
1	WPW10077859 Whirlpool Dishwasher Tube
2	WPW10349488 Whirlpool Screw
3	8193983 Whirlpool Spinner Kit
4	WP3400920 Whirlpool Screw Cover
5	WP8268321 Whirlpool Dishwasher Mount
6	WPW10323423 Whirlpool Manifold
7	WP8268349 Whirlpool Dishwasher Spray Arm Tube Hanger
8	WP8268433 Whirlpool Seal Assembly
9	WPW10082831 Whirlpool Dishwasher Probe
10	WP8535086 Whirlpool Dishwasher Spray Arm
11	Manifold, Spray Zone
12	Valve Assembly, Manifold
