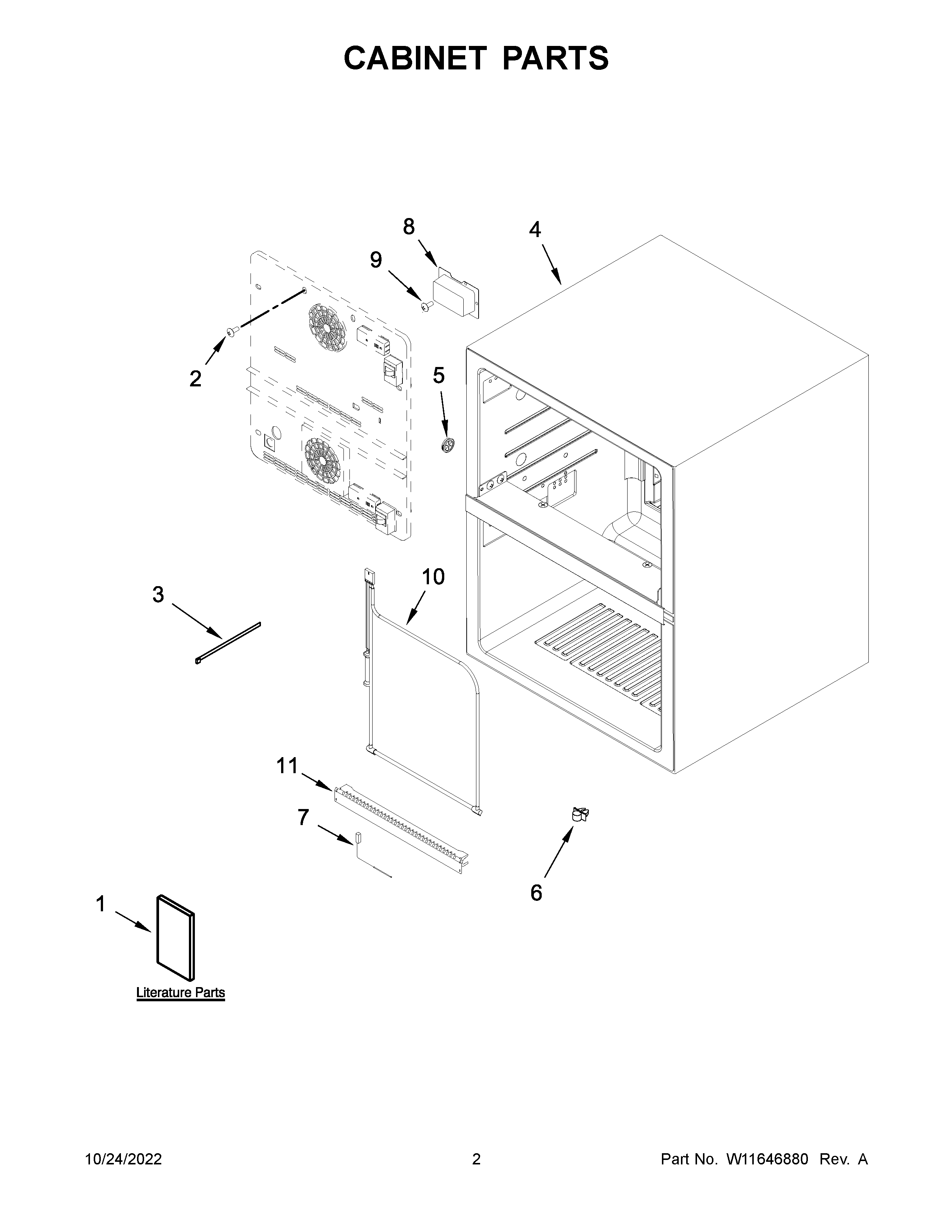

KUDR204EPA01 02 – CABINET PARTS

Products

Position	Product
1	ENERGY GUIDE
1B	USE & CARE GUIDE
1A	SERVICE & WIRING SHEET
2	SCREW
3	4344829 Whirlpool Tie Wire
4	CABINET (NOT A SERVICEABLE PART)
5	W10621514 Whirlpool Refrigerator Temperature Control Pad
6	W10238022 Whirlpool Refrigerator Clip
7	W11573590 Whirlpool Refrigerator Thermistor
8	COVER
9	4344826 Whirlpool Refrigerator Screw
10	W10292475 Whirlpool Refrigerator Defrost Bimetal
11	4344747 Whirlpool Refrigerator Shield
