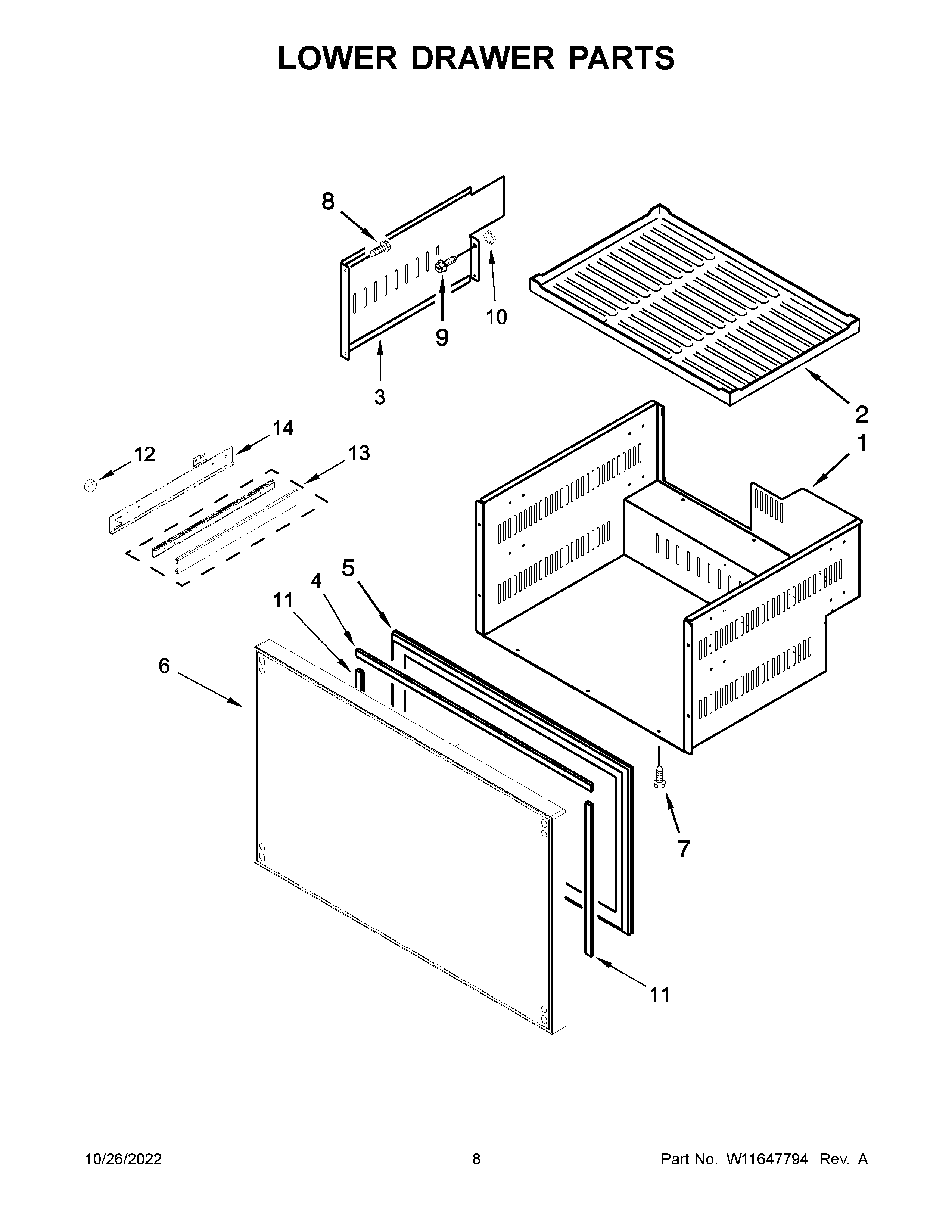

KUDR204EPA02 05 – LOWER DRAWER PARTS

KUDR204EPA02 05 – LOWER DRAWER PARTS

Written by

in

KUDR204EPA02 05 – LOWER DRAWER PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NIW10788702 Whirlpool Refrigerator Hardware Pack
1DRAWER BOX ASSEMBLY, LOWER
2MAT, LOWER DRAWER
3DRAWER BOX ASSEMBLY, LOWER
4W10204889 Whirlpool Refrigerator Gasket
5WPW10622006 Whirlpool Refrigerator Gasket
6DOOR
7SCREW
8SCREW
9W10204810 Whirlpool Screw
10W10204920 Whirlpool Refrigerator Nut
11W10204897 Whirlpool Refrigerator Gasket
12W10624158 Whirlpool Refrigerator Support
13WPW10233777 Whirlpool Refrigerator Slide
14W10789525 Whirlpool Refrigerator Support
14AW10789528 Whirlpool Refrigerator Support
