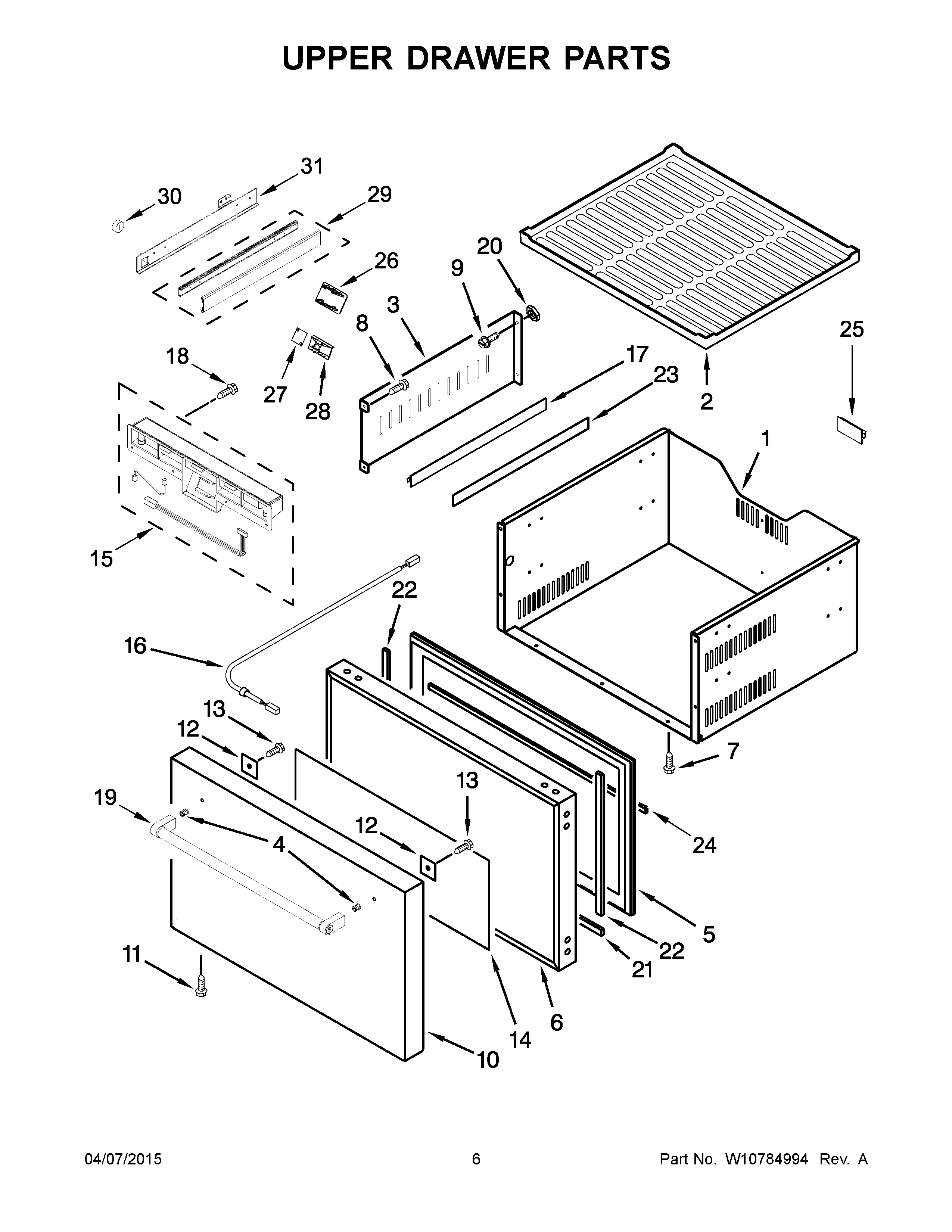

KUDR204ESB00 04 – UPPER DRAWER PARTS
Written by
in
KUDR204ESB00 04 – UPPER DRAWER PARTS
Products
Position
Product
NI
CABINET (NOT A SERVICEABLE PART)
NI
W10788702 Whirlpool Refrigerator Hardware Pack
1
W10789523 Whirlpool Refrigerator Drawer
2
MAT, UPPER DRAWER
3
DRAWER PARTITION
4
W11179356 Whirlpool Refrigerator Stud Handle
5
WPW10622006 Whirlpool Refrigerator Gasket
6
TOP FOAMED DOOR ASSEMBLY
7
SCREW
8
SCREW
9
W10204810 Whirlpool Screw
10
W10796876 Whirlpool Refrigerator Front Drawer
11
W11051564 Whirlpool Refrigerator Screw
12
W11263339 Whirlpool Refrigerator Plate
13
W10859467 Whirlpool Refrigerator Screw
14
W10204867 Whirlpool Front Drawer
15
W10796879 Whirlpool Refrigerator Display
16
W10789534 Whirlpool Refrigerator Wire Harness
17
W10622013 Whirlpool Refrigerator Clip
18
W10204808 Whirlpool Refrigerator Screw
19
W10708004 Whirlpool Dishwasher Handle
20
W10204920 Whirlpool Refrigerator Nut
21
W10204889 Whirlpool Refrigerator Gasket
22
W10204897 Whirlpool Refrigerator Gasket
23
W10205081 Whirlpool Refrigerator Tape
24
W10287957 Whirlpool Refrigerator Gasket
25
W10772901 Whirlpool Refrigerator Clip
26
W10204929 Whirlpool Cover
27
W10204930 Whirlpool Refrigerator Light Lens
28
W10204931 Whirlpool Socket Assembly
29
WPW10233777 Whirlpool Refrigerator Slide
30
W10624158 Whirlpool Refrigerator Support
31
W10789525 Whirlpool Refrigerator Support
31A
W10789528 Whirlpool Refrigerator Support
←
