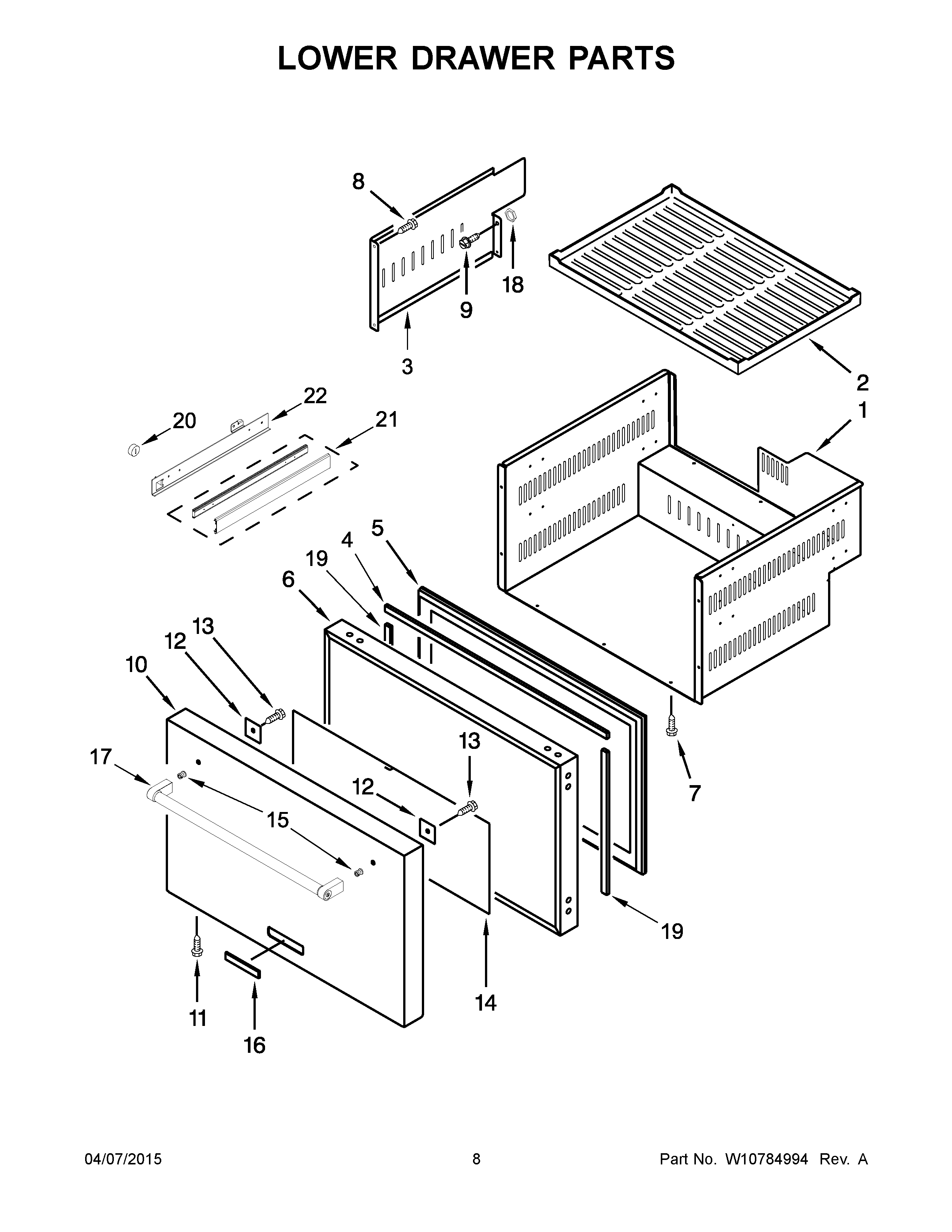

KUDR204ESB00 05 – LOWER DRAWER PARTS

KUDR204ESB00 05 – LOWER DRAWER PARTS

Written by

in

KUDR204ESB00 05 – LOWER DRAWER PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NIW10788702 Whirlpool Refrigerator Hardware Pack
1DRAWER BOX ASSEMBLY, LOWER
2W10622026 Whirlpool Refrigerator Mat
3W10796446 Whirlpool Refrigerator Divider
4W10204889 Whirlpool Refrigerator Gasket
5WPW10622006 Whirlpool Refrigerator Gasket
6BOTTOM FOAMED DOOR ASSEMBLY
7SCREW
8SCREW
9W10204810 Whirlpool Screw
10W10796876 Whirlpool Refrigerator Front Drawer
11W11051564 Whirlpool Refrigerator Screw
12W11263339 Whirlpool Refrigerator Plate
13W10859467 Whirlpool Refrigerator Screw
14W10204867 Whirlpool Front Drawer
15W11179356 Whirlpool Refrigerator Stud Handle
16W11179312 Whirlpool Refrigerator Nameplate
17W10708004 Whirlpool Dishwasher Handle
18W10204920 Whirlpool Refrigerator Nut
19W10204897 Whirlpool Refrigerator Gasket
20W10624158 Whirlpool Refrigerator Support
21WPW10233777 Whirlpool Refrigerator Slide
22W10789525 Whirlpool Refrigerator Support
22AW10789528 Whirlpool Refrigerator Support
