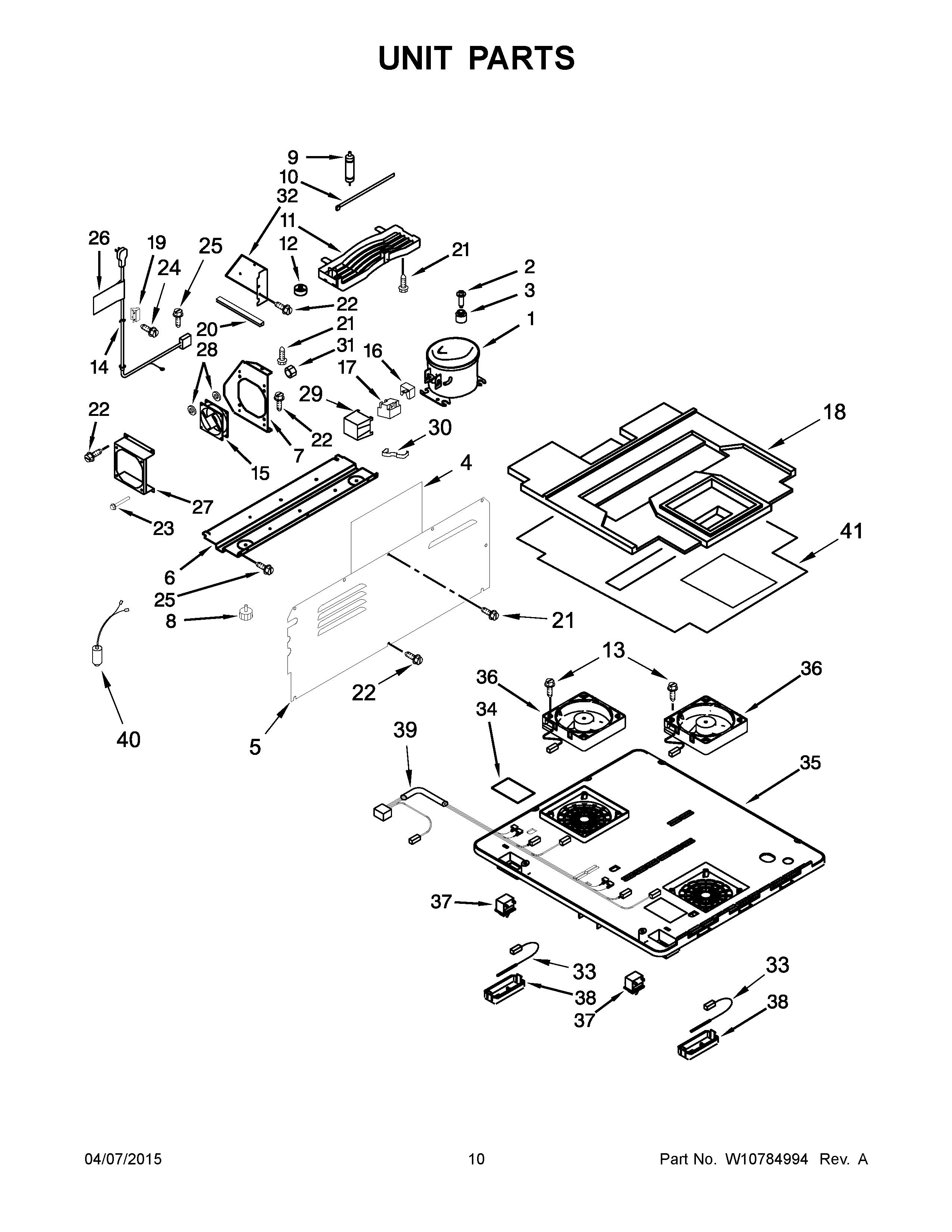

KUDR204ESB00 06 – UNIT PARTS
Written by
in
KUDR204ESB00 06 – UNIT PARTS
Products
Position
Product
NI
CABINET (NOT A SERVICEABLE PART)
NI
W10266810 Whirlpool Refrigerator Repair Kit
1
8201787 Whirlpool Refrigerator Compressor
2
W10772873 Whirlpool Screw
3
WP4344779 Whirlpool Refrigerator Grommet
4
INSULATION, REAR COVER
5
W10796445 Whirlpool Refrigerator Back Cover
6
CABINET BASE PLATE
7
W10204674 Whirlpool Refrigerator Baffle
8
W11106296 Whirlpool Refrigerator Leveler
9
W10163273 Whirlpool Refrigerator Tube
10
4344829 Whirlpool Tie Wire
11
W10316689 Whirlpool Refrigerator Drip Pan
12
W10163276 Whirlpool Refrigerator Trap
13
W10205061 Whirlpool Screw Assembly
14
WPW10204676 Whirlpool Refrigerator Power Cord
15
W10772882 Whirlpool Refrigerator Condenser Motor
16
W10778965 Whirlpool Refrigerator Overload Relay
17
W10778966 Whirlpool Refrigerator Thermistor
18
INSULATION, FAN COVER
19
CLAMP, CORD
20
TRIM, EDGE
21
SCREW
22
W11380570 Whirlpool Microwave Screw
23
SCREW
24
W10837731 Whirlpool Screw Assembly
25
4344797 Whirlpool Screw
26
4344913 Whirlpool Label Assembly
27
W11506521 Whirlpool Refrigerator Bracket
28
W10204688 Whirlpool Plate Assembly
29
COVER, RELAY
30
CLIP, RELAY COVER
31
NUT
32
BRACKET, DEFROST TIMER
33
W11238391 Whirlpool Refrigerator Thermistor
34
W10205062 Whirlpool Wire Cover
35
COVER, FAN
36
W10854409 Whirlpool Refrigerator Evaporator Motor
37
W10721454 Whirlpool Refrigerator Switch
38
SENSOR CASE
39
W10772918 Whirlpool Refrigerator Wire Harness
40
W10778969 Whirlpool Refrigerator Capacitor
41
PLATE COVER
←
