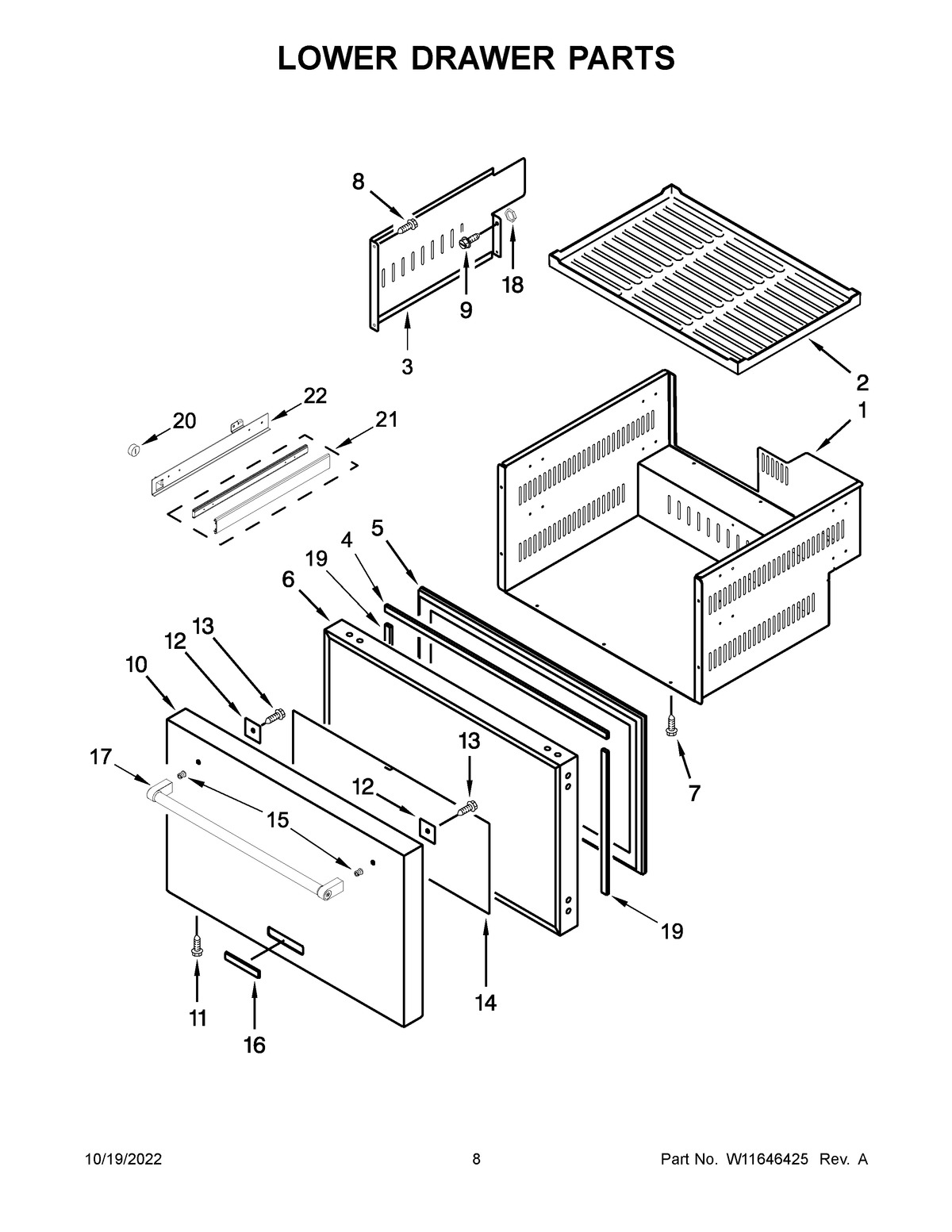

KUDR204ESB01 05 – LOWER DRAWER PARTS
Written by
in
KUDR204ESB01 05 – LOWER DRAWER PARTS
Products
Position
Product
NI
CABINET (NOT A SERVICEABLE PART)
NI
W10788702 Whirlpool Refrigerator Hardware Pack
1
DRAWER BOX ASSEMBLY, LOWER
2
MAT, LOWER DRAWER
3
DRAWER BOX ASSEMBLY, LOWER
4
W10204889 Whirlpool Refrigerator Gasket
5
WPW10622006 Whirlpool Refrigerator Gasket
6
DOOR
7
SCREW
8
SCREW
9
W10204810 Whirlpool Screw
10
W10796876 Whirlpool Refrigerator Front Drawer
11
W11051564 Whirlpool Refrigerator Screw
12
W11263339 Whirlpool Refrigerator Plate
13
W10859467 Whirlpool Refrigerator Screw
14
W10204867 Whirlpool Front Drawer
15
W11179356 Whirlpool Refrigerator Stud Handle
16
W11179312 Whirlpool Refrigerator Nameplate
17
W10708004 Whirlpool Dishwasher Handle
18
W10204920 Whirlpool Refrigerator Nut
19
W10204897 Whirlpool Refrigerator Gasket
20
W10624158 Whirlpool Refrigerator Support
21
WPW10233777 Whirlpool Refrigerator Slide
22
W10789525 Whirlpool Refrigerator Support
22A
W10789528 Whirlpool Refrigerator Support
←
