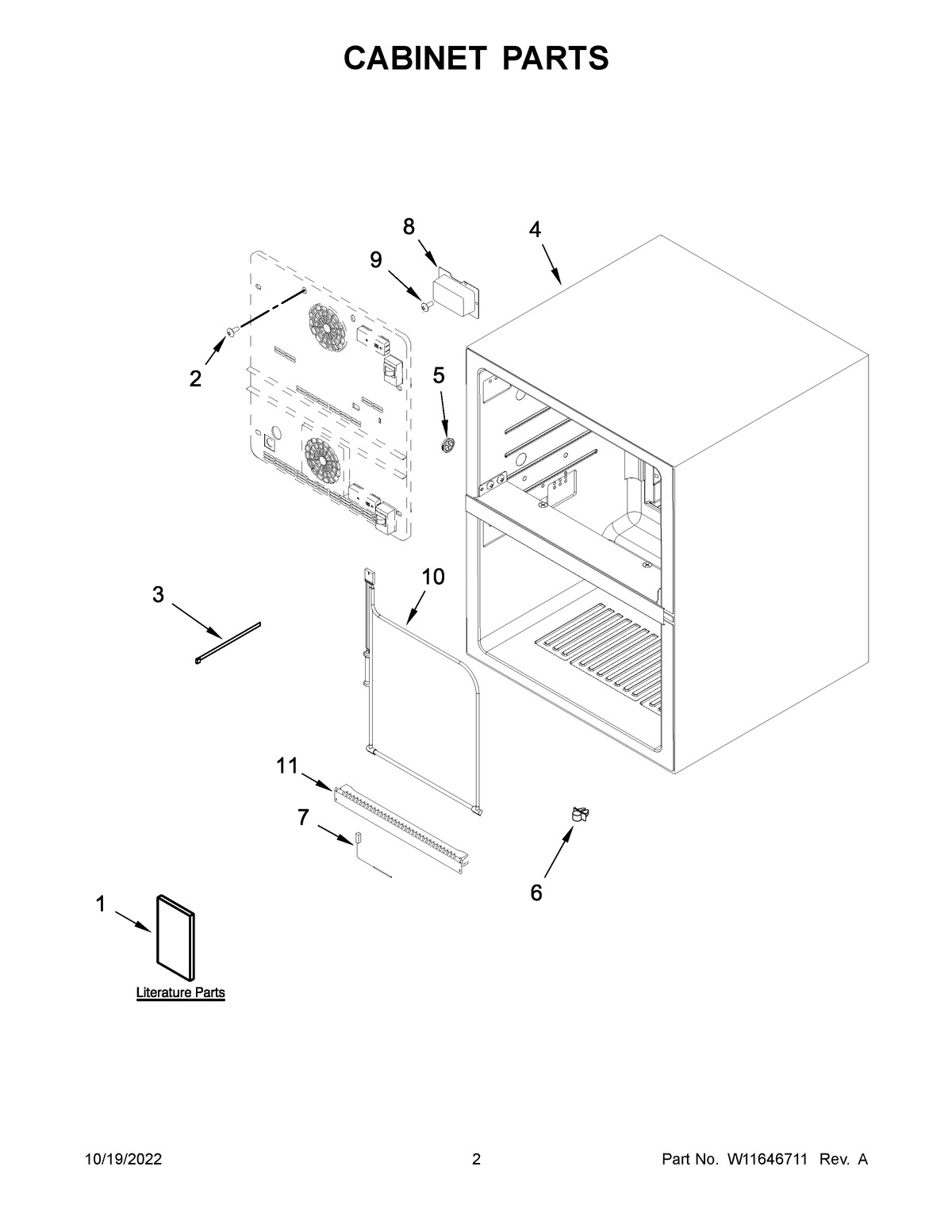

KUDR204ESB02 02 – CABINET PARTS

Products

PositionProduct
1ENERGY GUIDE
1BUSE & CARE GUIDE
1ASERVICE & WIRING SHEET
2SCREW
34344829 Whirlpool Tie Wire
4CABINET (NOT A SERVICEABLE PART)
5W10621514 Whirlpool Refrigerator Temperature Control Pad
6W10238022 Whirlpool Refrigerator Clip
7W11573590 Whirlpool Refrigerator Thermistor
8COVER
94344826 Whirlpool Refrigerator Screw
10W10292475 Whirlpool Refrigerator Defrost Bimetal
114344747 Whirlpool Refrigerator Shield
