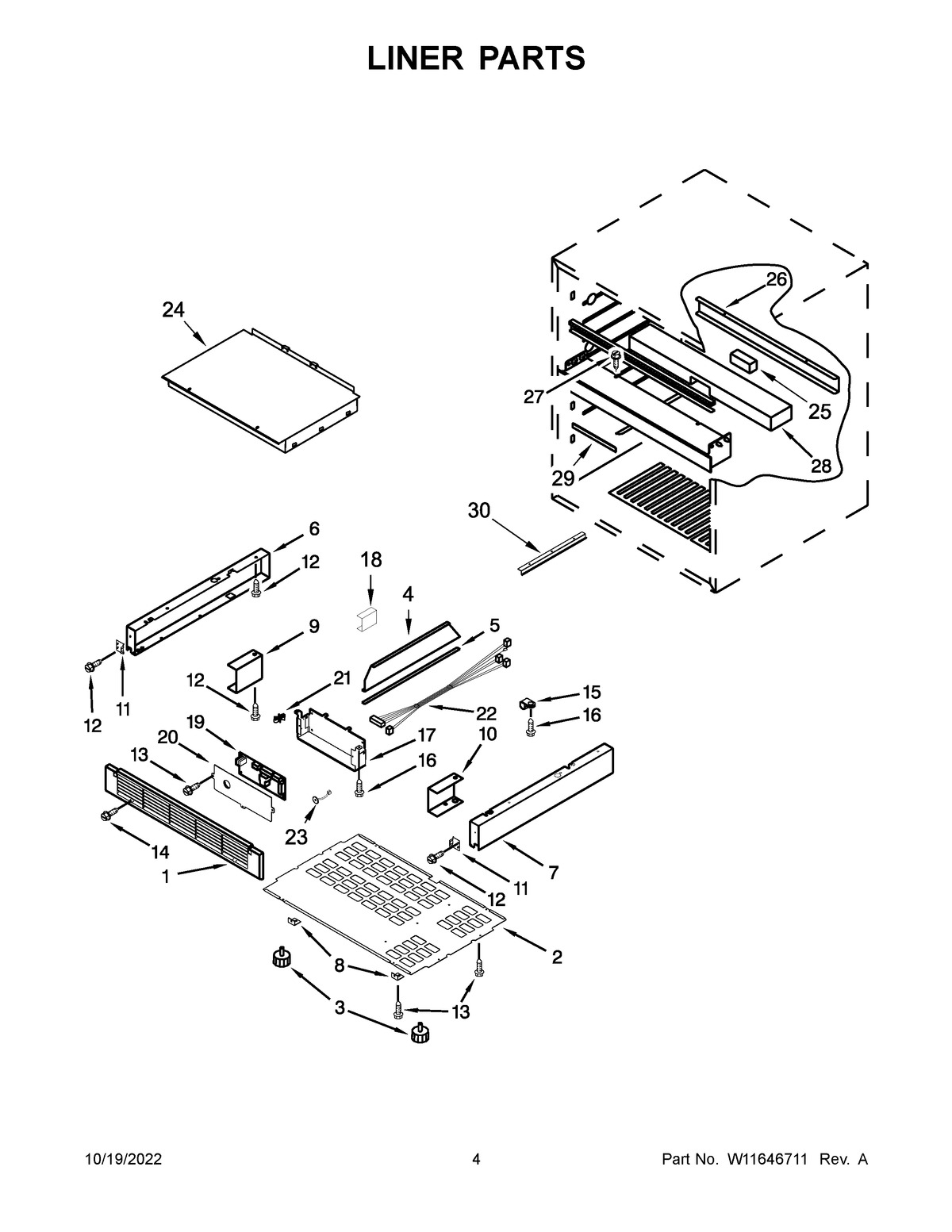

KUDR204ESB02 03 – LINER PARTS

KUDR204ESB02 03 – LINER PARTS

Written by

in

KUDR204ESB02 03 – LINER PARTS

Products

PositionProduct
1W10204635 Whirlpool Refrigerator Grille
2W10772863 Whirlpool Refrigerator Cabinet Base
3W11106296 Whirlpool Refrigerator Leveler
4AUXILIARY PLATE
54344823 Whirlpool Refrigerator Seal
6W10621525 Whirlpool Refrigerator Support
7W10621526 Whirlpool Refrigerator Support
8W10239388 Whirlpool Brace
94344820 Whirlpool Refrigerator Support
104344821 Whirlpool Refrigerator Support
11W10204640 Whirlpool Refrigerator Clip
124344797 Whirlpool Screw
134344826 Whirlpool Refrigerator Screw
14W10319184 Whirlpool Refrigerator Screw
15CABLE CLAMP
16SCREW
17W10772866 Whirlpool Refrigerator Control Box
18BRACKET, PCB BOX
19WPW10772868-includeCORE Whirlpool WPW10772868 Refrigerator Electronic Control Board + Core
20W10788698 Whirlpool Refrigerator Cover
21W10204659 Whirlpool Refrigerator Spacer
22W10772870 Whirlpool Refrigerator Wire Harness
23W10788693 Whirlpool Refrigerator Speaker
24MULLION BODY ASSEMBLY
25W10205072 Whirlpool Refrigerator Insulation
26MULLION CASE COVER
27SCREW
28W10621528 Whirlpool Refrigerator Insulation
29MULLION CASE INSULATION FRONT
30BLOCK AIR CIRCULATION
