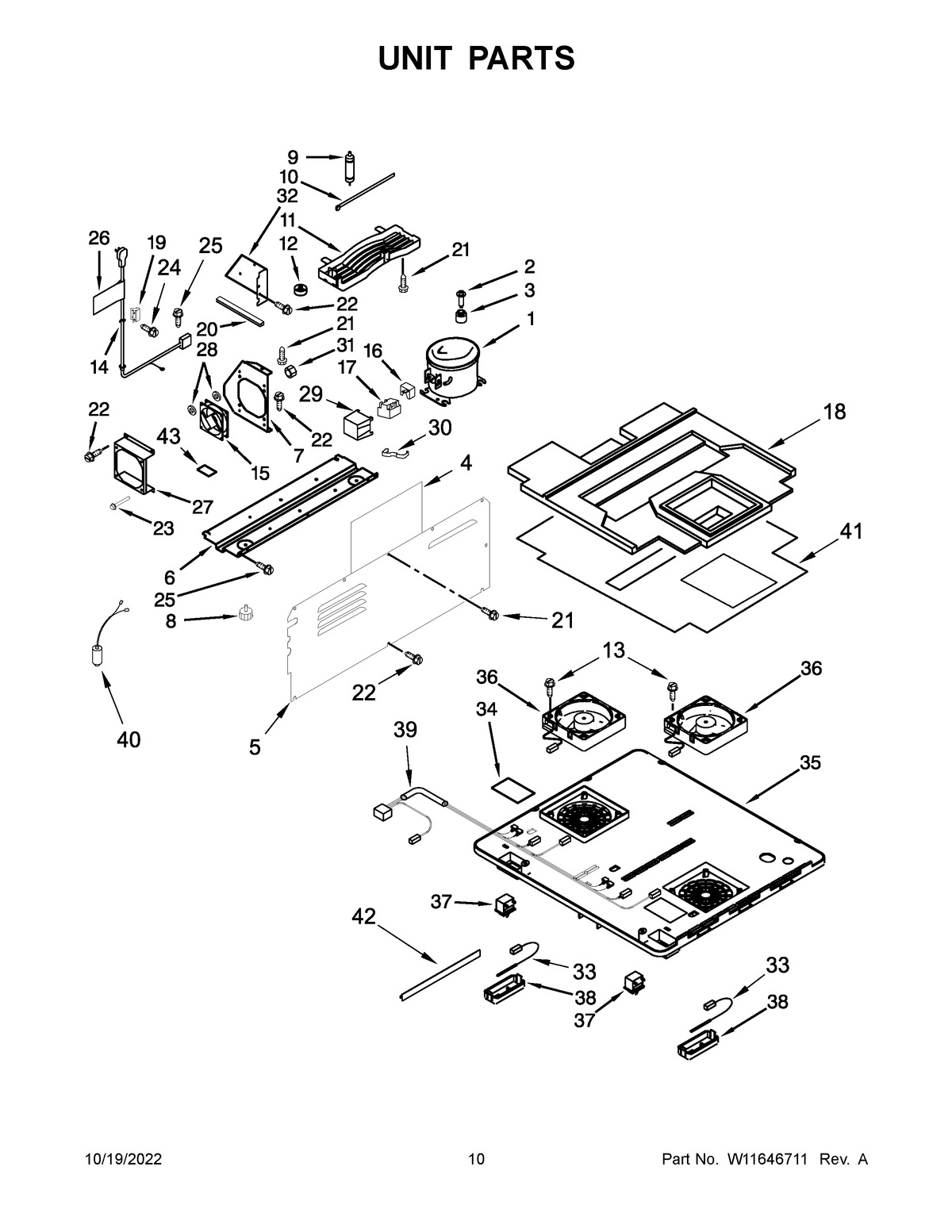

KUDR204ESB02 06 – UNIT PARTSadmin2025-04-26T13:01:32+00:00KUDR204ESB02 06 – UNIT PARTS ProductsPositionProductNICABINET (NOT A SERVICEABLE PART)NIW10266810 Whirlpool Refrigerator Repair Kit1W11422743 Whirlpool Compressor2W10772873 Whirlpool Screw3WP4344779 Whirlpool Refrigerator Grommet4INSULATION, REAR COVER5W10796445 Whirlpool Refrigerator Back Cover6CABINET BASE PLATE7W10204674 Whirlpool Refrigerator Baffle8W11106296 Whirlpool Refrigerator Leveler9W10163273 Whirlpool Refrigerator Tube104344829 Whirlpool Tie Wire11W10316689 Whirlpool Refrigerator Drip Pan12W10163276 Whirlpool Refrigerator Trap13W10205061 Whirlpool Screw Assembly14WPW10204676 Whirlpool Refrigerator Power Cord15W10772882 Whirlpool Refrigerator Condenser Motor16OVERLOAD17W11596023 Whirlpool Start Device18INSULATION, FAN COVER19CLAMP, CORD20TRIM, EDGE21SCREW22W11380570 Whirlpool Microwave Screw23SCREW24W10837731 Whirlpool Screw Assembly254344797 Whirlpool Screw26W11618463 Whirlpool Power Cord27W11506521 Whirlpool Refrigerator Bracket28W10204688 Whirlpool Plate Assembly29COVER, RELAY30W11498144 Whirlpool Retainer31NUT32BRACKET, (DEFROST TIMER)33W11238391 Whirlpool Refrigerator Thermistor34W10205062 Whirlpool Wire Cover36W10854409 Whirlpool Refrigerator Evaporator Motor37W10721454 Whirlpool Refrigerator Switch38W10204948 Whirlpool Refrigerator Control Box39W10772918 Whirlpool Refrigerator Wire Harness40W10778969 Whirlpool Refrigerator Capacitor41PLATE COVER42SEAL43BLOCK, SEAL AIR
