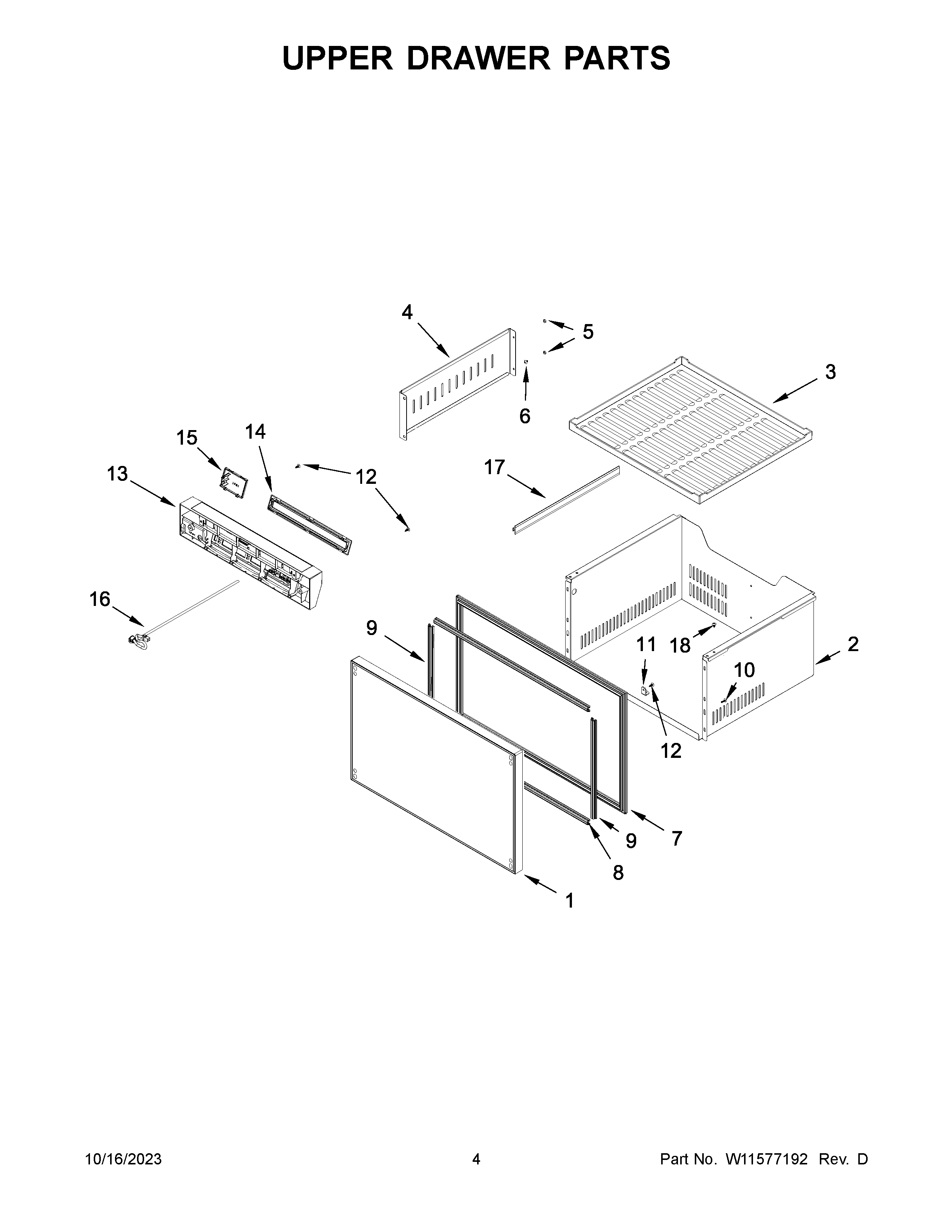

KUDR204KPA00 03 – UPPER DRAWER PARTS

Products

PositionProduct
NIFOLLOWING PARTS NOT ILLUSTRATED
NIW11598387 Whirlpool Hardware Pack
NICOMPLETE, DOOR ASSEMBLY
1W11568830 Whirlpool Refrigerator Front Drawer
2DRAWER BOX ASSEMBLY, UPPER
3MAT, UPPER DRAWER
4DRAWER PARTITION
5W10204920 Whirlpool Refrigerator Nut
6W10204810 Whirlpool Screw
7GASKET, DOOR
8GASKET, SASH (TOP/BOTTOM)
9DOOR GASKET, SHORT
10W10204808 Whirlpool Refrigerator Screw
11W11579579 Whirlpool Refrigerator Plate
12W11675284 Whirlpool Screw
13W11568936 Whirlpool Display
14W11312450 Whirlpool Light Lens
15LAMP COVER
16W11592421 Whirlpool Wire Harness
17SUPPORT, LEAD WIRE
18SCREW
