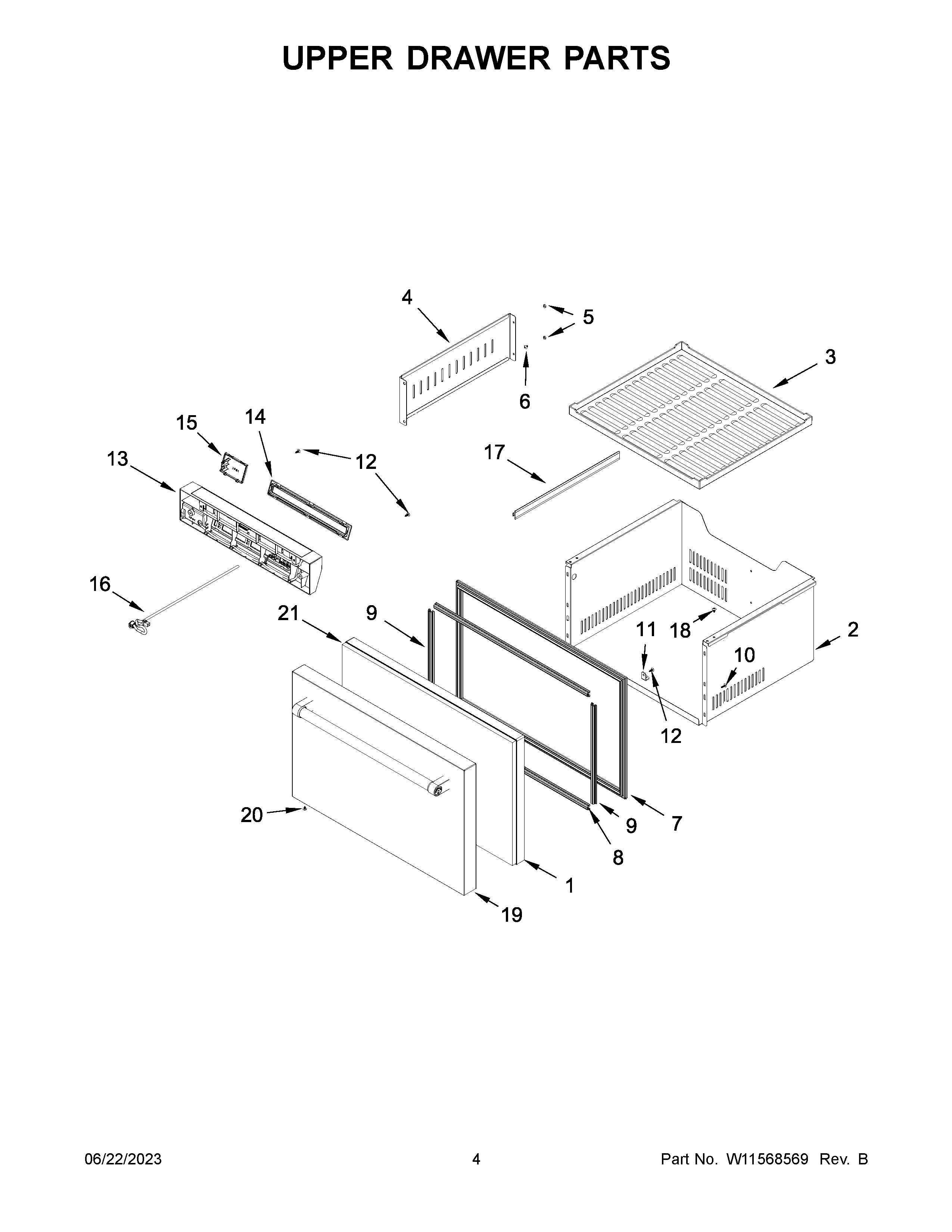

KUDR204KSB00 03 – UPPER DRAWER PARTS

Products

Position	Product
NI	FOLLOWING PARTS NOT ILLUSTRATED
NI	COMPLETE, DOOR ASSEMBLY
1	W11568830 Whirlpool Refrigerator Front Drawer
2	DRAWER BOX ASSEMBLY, UPPER
3	MAT, UPPER DRAWER
4	DRAWER PARTITION
5	W10204920 Whirlpool Refrigerator Nut
6	W10204810 Whirlpool Screw
7	GASKET, DOOR
8	GASKET, SASH (TOP/BOTTOM)
9	DOOR GASKET, SHORT
10	W10204808 Whirlpool Refrigerator Screw
11	W11579579 Whirlpool Refrigerator Plate
12	W11675284 Whirlpool Screw
13	W11568936 Whirlpool Display
14	W11312450 Whirlpool Light Lens
15	LAMP COVER
16	W11592421 Whirlpool Wire Harness
17	SUPPORT, LEAD WIRE
18	SCREW
19	W11568932 Whirlpool Door Skin
20	W10319185 Whirlpool Screw
21	INSULATION, DOOR
