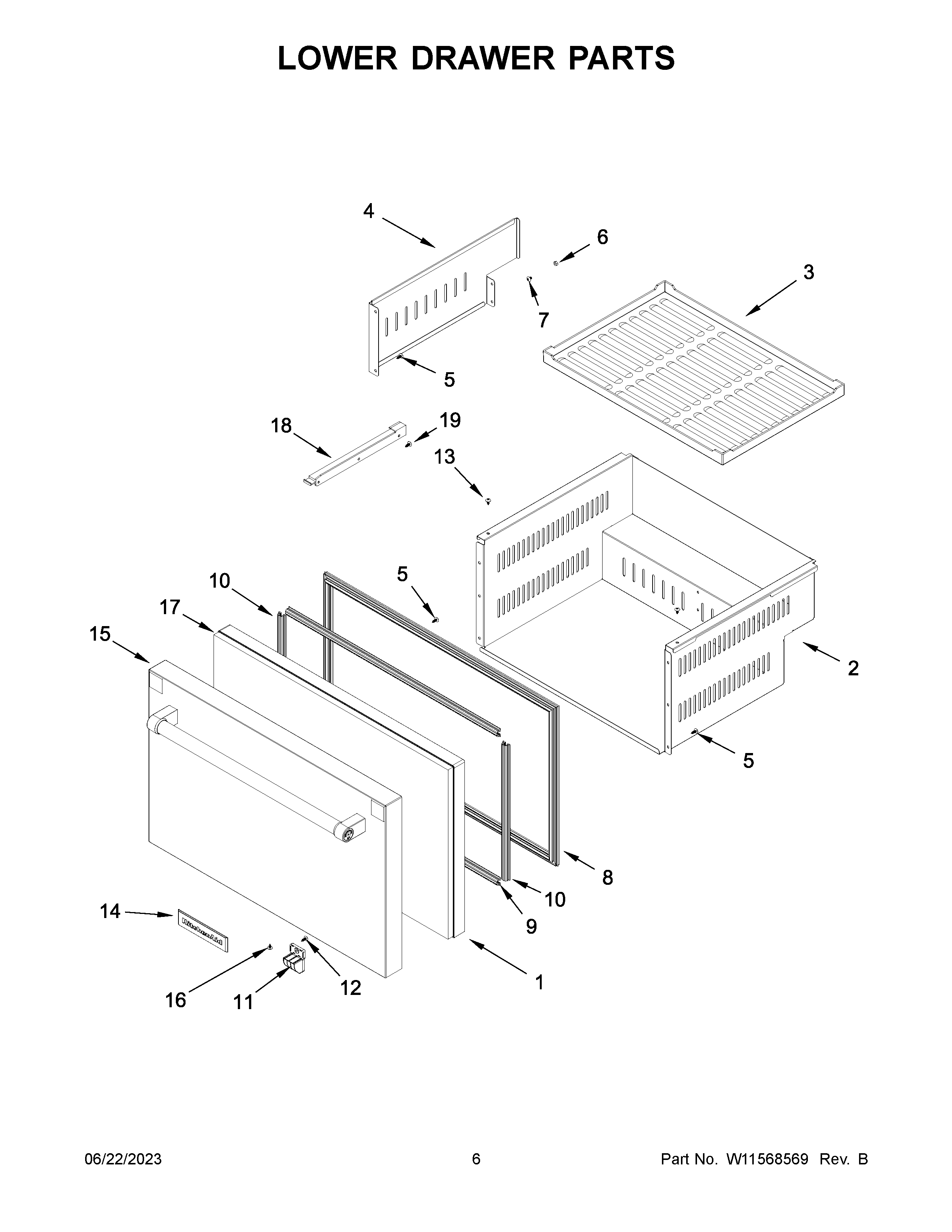

KUDR204KSB00 04 – LOWER DRAWER PARTS

KUDR204KSB00 04 – LOWER DRAWER PARTS

Written by

in

KUDR204KSB00 04 – LOWER DRAWER PARTS

Products

PositionProduct
NIFOLLOWING PARTS NOT ILLUSTRATED
NICOMPLETE, DOOR ASSEMBLY
1W11568937 Whirlpool Refrigerator Drawer
2DRAWER BOX ASSEMBLY, BOTTOM
3MAT, LOWER DRAWER
4BOTTOM DRAWER PARTITION
5SCREW
6W10204920 Whirlpool Refrigerator Nut
7W10204810 Whirlpool Screw
8GASKET
9GASKET, SASH (TOP/BOTTOM)
10DOOR GASKET, SHORT
11W11678576 Whirlpool Bracket
12W11675284 Whirlpool Screw
13SCREW
14W11179312 Whirlpool Refrigerator Nameplate
15W11568932 Whirlpool Door Skin
16W10319185 Whirlpool Screw
17INSULATION, DOOR
18RAIL, SIDE (LEFT HAND)
18ARAIL, SIDE (RIGHT HAND)
194344797 Whirlpool Screw
