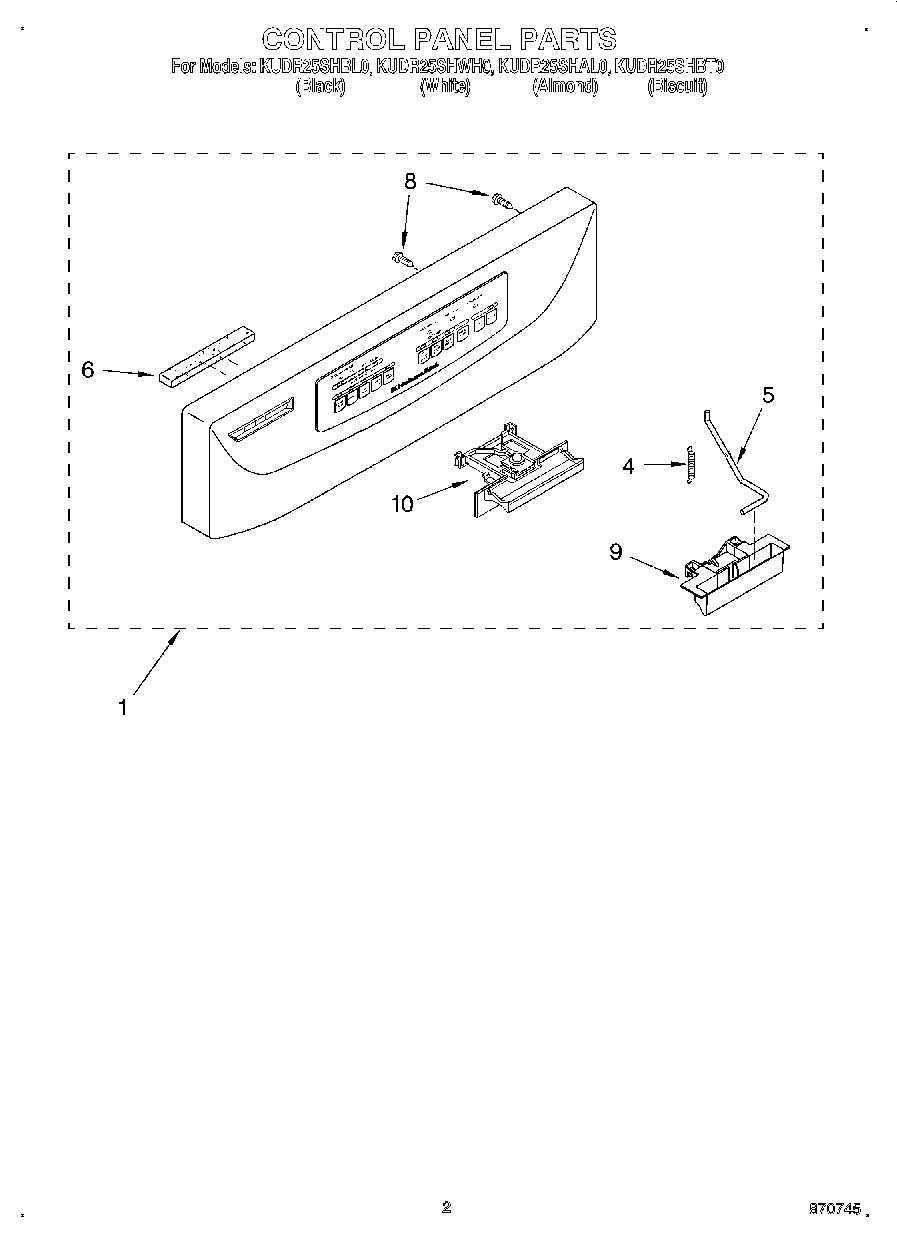

KUDR25SHBL0 02 – CONTROL PANEL

Products

PositionProduct
1Console, complete (Biscuit Mdl.)
1Console, complete (Almond Mdl.)
1Console, complete (White Mdl.)
1Console, complete (Black Mdl.)
4WP9743573 Whirlpool Dishwasher Spring
5Link, Handle
6Sponge, Vent
8WPW10348409 Whirlpool Screw
9WP9743903 Whirlpool Dishwasher Handle
10Latch Lever Asm.
