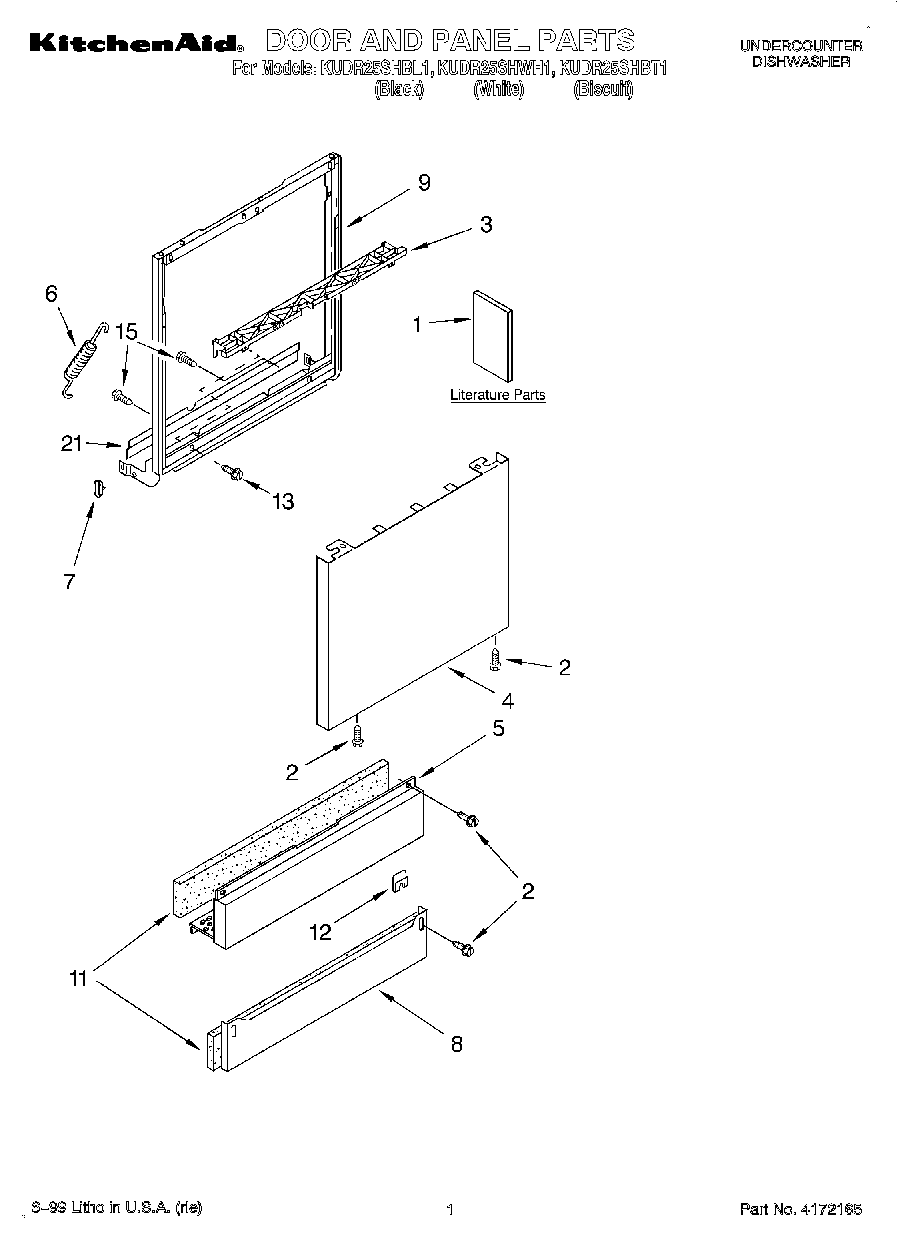

KUDR25SHBL1 01 – DOOR AND PANEL, LITERATURE

Products

Position	Product
1	Literature Parts (Energy Guide)
1	Instructions, Installation
1	Literature Parts (Tech Sheet) (English)
1	Literature Parts (Tech Sheet) (French)
1	Guide, Use & Care
2	WP302868 Whirlpool Screw
3	Stiffener, Door
4	Panel Front (White Model)
4	Panel Front (Black Model)
4	Panel, Front (Biscuit)
5	Access Panel & Clip Assembly (Biscuit)
5	Access Panel & Clip Assembly (Includes Items 11 & 12) (White Model)
5	Access Panel & Clip Assembly (Includes Items 11 & 12) (Black Model)
6	WP9743986 Whirlpool Spring
7	WP3373234 Whirlpool Dishwasher Bearing
8	WP3379921 Whirlpool Dishwasher Toe Panel
8	WP3379920 Whirlpool Dishwasher Toe Panel
8	Toe Panel (Includes Item 11) (Biscuit)
9	WP9743028 Whirlpool Dishwasher Frame
11	Insulation
12	Clip, Grounding
13	WP308685 Whirlpool Microwave Screw
15	WP488234 Whirlpool Air Conditioner Screw
21	Barrier, Lower vent
