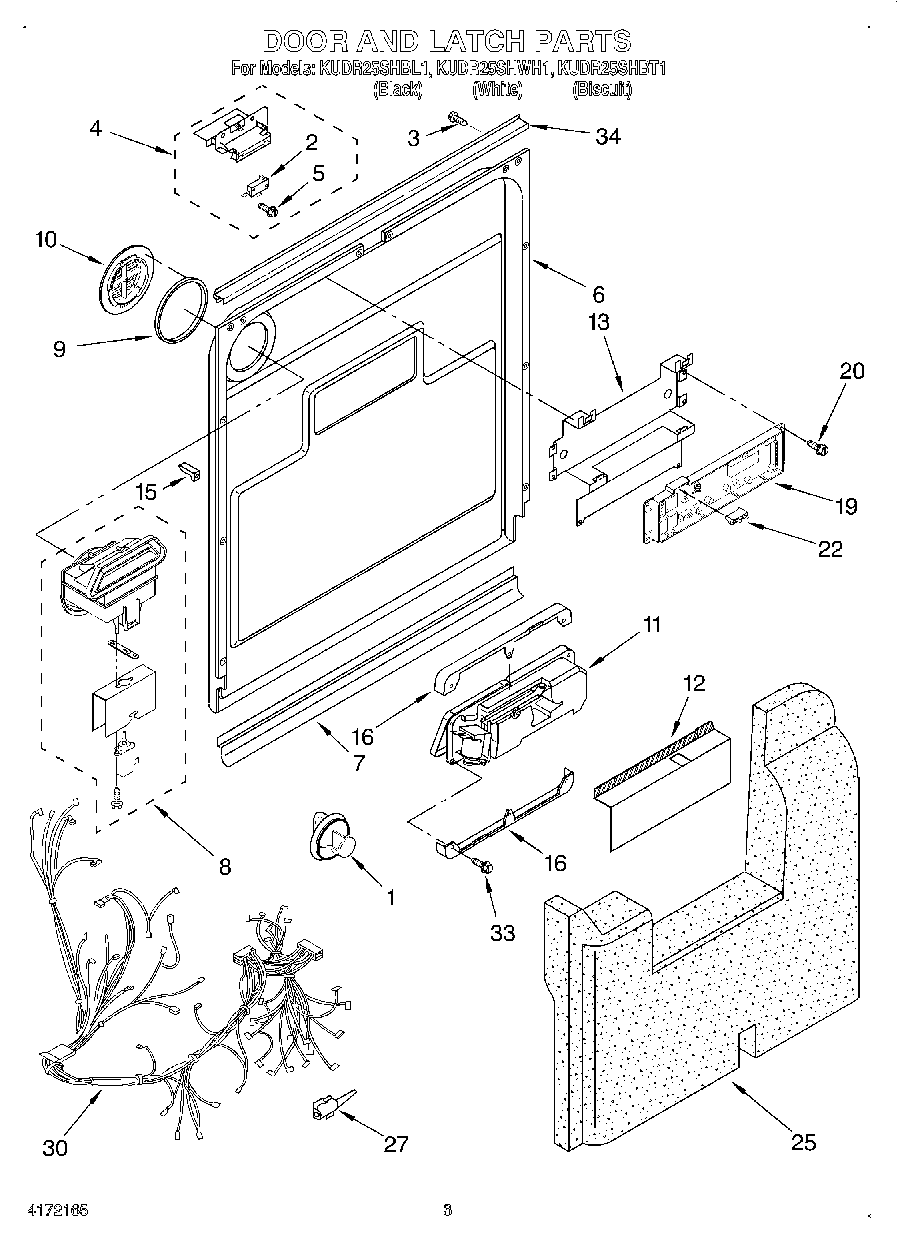

KUDR25SHBT1 03 – DOOR AND LATCH

Products

PositionProduct
1Cap, Dispenser
2Shield, Switch
3WPW10348409 Whirlpool Screw
4Latch, Bolt Assy. (Includes Item 2)
5Screw
6Inner Door Mastic Assembly (Also Includes Items 7, 9 & 10)
74172127 Whirlpool Dishwasher Bottom Door Seal
8Vent Assembly (Also Order Item 9)
9Gasket, Vent
10Deflector, Vent (Also Order Item 9)
11WPW10616003 Whirlpool Dishwasher Dispenser Assembly
12Shield, Dispenser
13Bracket, Controls
15Guide, Door
16Bracket, Dispenser (2)
19Control, Electronic
20WP3177991 Whirlpool Screw
22Fuse Thermal Electronic
25Sound Absorber
273376405 Whirlpool Dishwasher Elbow
30Wiring Harness, Main
33Screw (6)
34Seal, Console/Door
