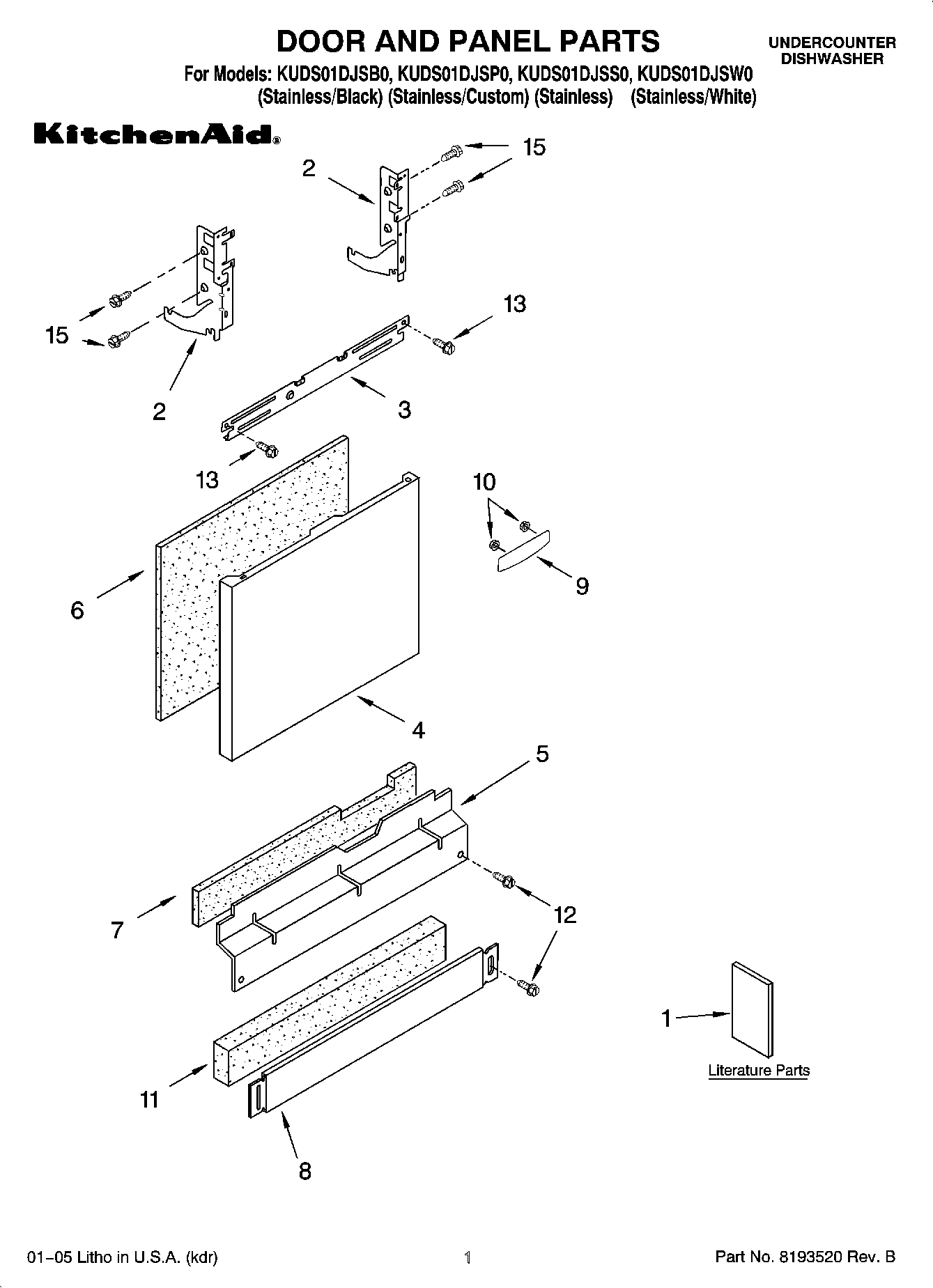

KUDS01DJSB0 01 – DOOR AND PANEL PARTS

Products

Position	Product
1	Literature Parts (Guide, Use & Care Tech Sheet)
1	Literature Parts (Energy Guide)
1	Literature Parts (French)
1	Literature Parts (English)
1	Literature Parts (Instructions, Installation)
2	W11612303 Whirlpool Door Hinge
2	W11612302 Whirlpool Dishwasher Door Hinge
3	Stiffener, Door
4	W10301577 Whirlpool Outer Door Panel
4	W10301571 Whirlpool Dishwasher Panel
4	Panel Front (White)
4	Panel Front (Custom Panel Ready)
5	W10909064 Whirlpool Dishwasher Black Access Panel
5	W10909066 Whirlpool Dishwasher Panel
6	WPW10073520 Whirlpool Dishwasher Insulation Pad
8	WPW10586591 Whirlpool Dishwasher Toe Panel
8	W10871196 Whirlpool Toekick Plate
9	Nameplate (Black)
10	WP2004333 Whirlpool Refrigerator Nut
11	SHIELD
12	WPW10503549 Whirlpool Dishwasher Retainer Clip
12	WP302868 Whirlpool Screw
13	WP693995 Whirlpool Screw
15	WP3400071 Whirlpool Screw
