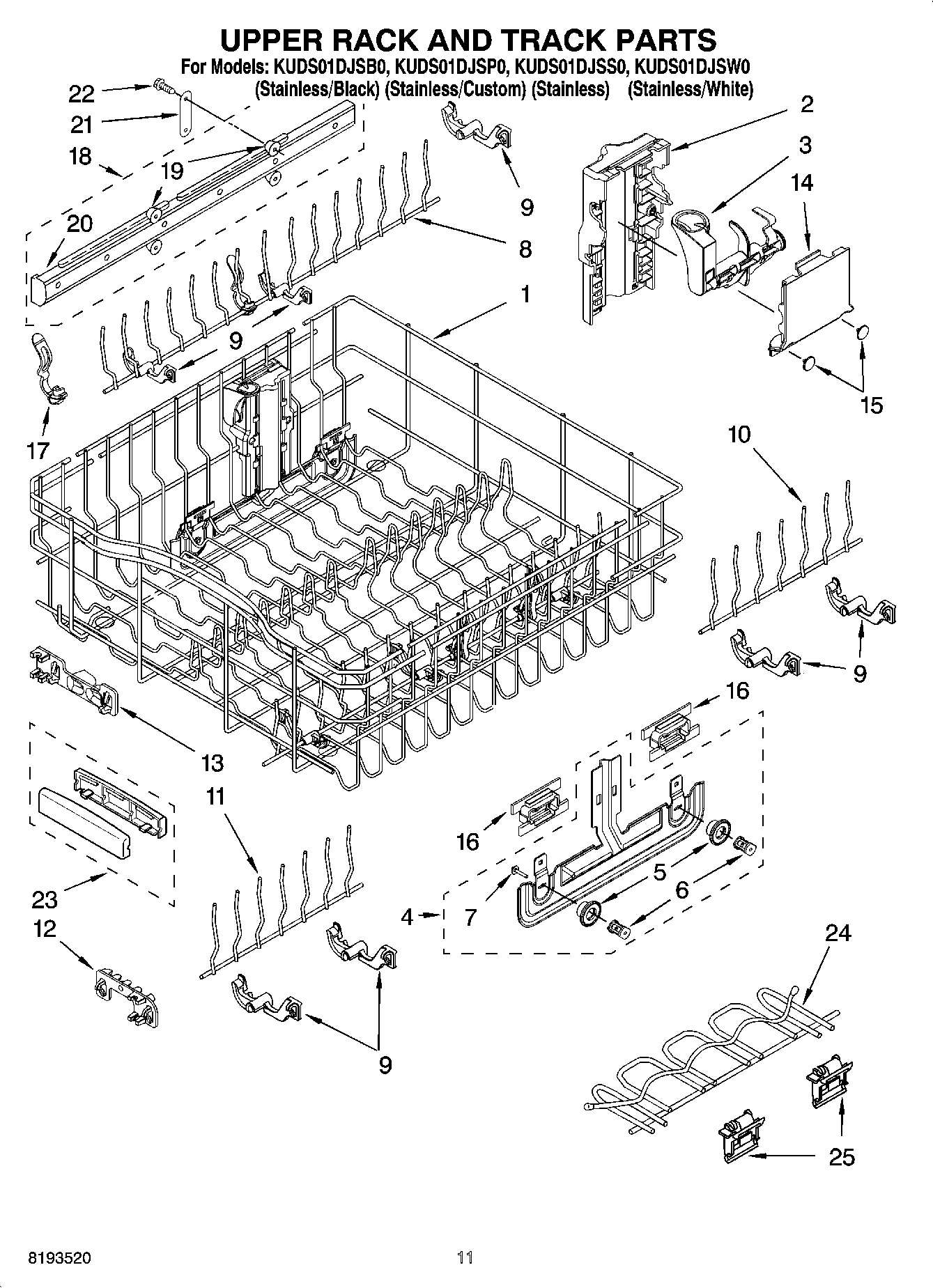

KUDS01DJSB0 09 – UPPER RACK AND TRACK PARTSadmin2025-04-26T13:03:27+00:00KUDS01DJSB0 09 – UPPER RACK AND TRACK PARTS
Products
| Position | Product |
|---|
| 1 | 8193944 Whirlpool Dishwasher Rack Assembly |
| 2 | 8193741 Whirlpool Dishwasher Adjuster P1 |
| 3 | Actuator, Adjuster (Also Order Item 15) (Right Hand) |
| 3 | WP8268701 Whirlpool Dishwasher Adjuster |
| 4 | W10728567 Whirlpool Dishwasher Adjuster |
| 5 | WP8270138 Whirlpool Dishwasher Upper Wheel |
| 6 | WP8268703 Whirlpool Dishwasher Rack Axle |
| 7 | WP8281156 Whirlpool Dishwasher Screw |
| 8 | W10727426 Whirlpool Dishwasher Rack Tine |
| 9 | Clip, Pivot |
| 10 | Tine Row, Rear |
| 11 | Tine Row, Front |
| 12 | Positioner, Dual |
| 13 | Positioner, Multi |
| 15 | WP3400918 Whirlpool Fastener |
| 16 | WP8268738 Whirlpool Dishwasher Positioner |
| 17 | Clip, No-Flip |
| 18 | W10404344 Whirlpool Dishwasher Track |
| 19 | Mount, Track (Also Order Item 21) |
| 20 | WP8270136 Whirlpool Dishwasher Stop |
| 21 | WP9743002 Whirlpool Dishwasher Gasket |
| 22 | WPW10348407 Whirlpool Dishwasher Screw |
| 23 | Handle, Dishrack |
| 24 | W11125975 Whirlpool Dishwasher Cup Shelf |
| 25 | Clip, Cupshelf |
