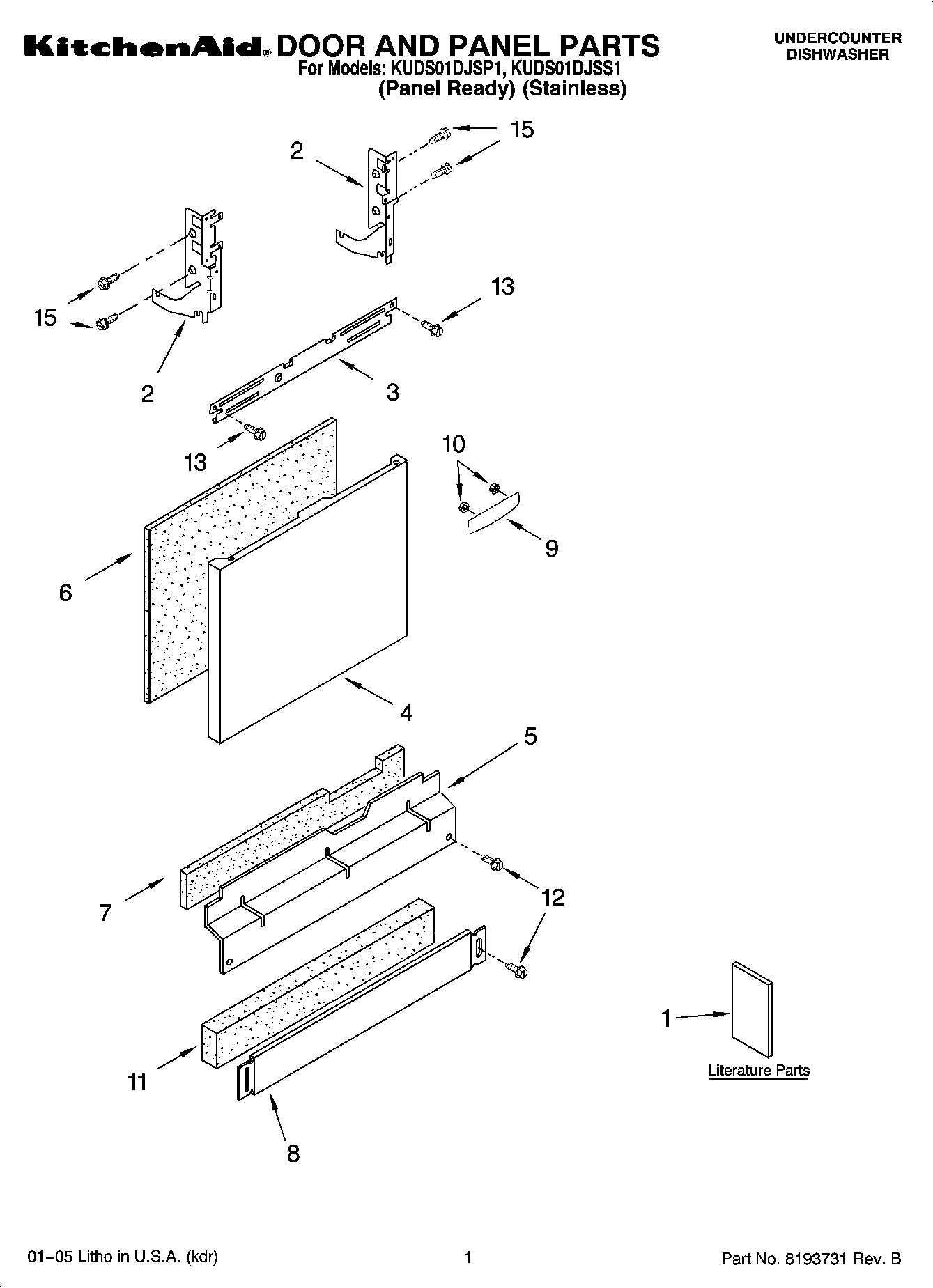

KUDS01DJSS1 01 – DOOR AND PANEL PARTS

Products

Position	Product
1	Literature Parts (English/French)
1	Literature Parts (Instructions, Installation)
1	Literature Parts (Guide, Use & Care Tech Sheet)
1	Literature Parts (Guide, Energy)
2	W11612302 Whirlpool Dishwasher Door Hinge
2	W11612303 Whirlpool Door Hinge
3	Stiffener, Door
4	Panel Front (Custom Panel Ready)
4	W10301577 Whirlpool Outer Door Panel
5	W10909064 Whirlpool Dishwasher Black Access Panel
6	WPW10073520 Whirlpool Dishwasher Insulation Pad
9	Nameplate (Black)
10	WP2004333 Whirlpool Refrigerator Nut
11	SHIELD
12	WP302868 Whirlpool Screw
13	WP489069 Whirlpool Compactor Screw
15	WP3400071 Whirlpool Screw
