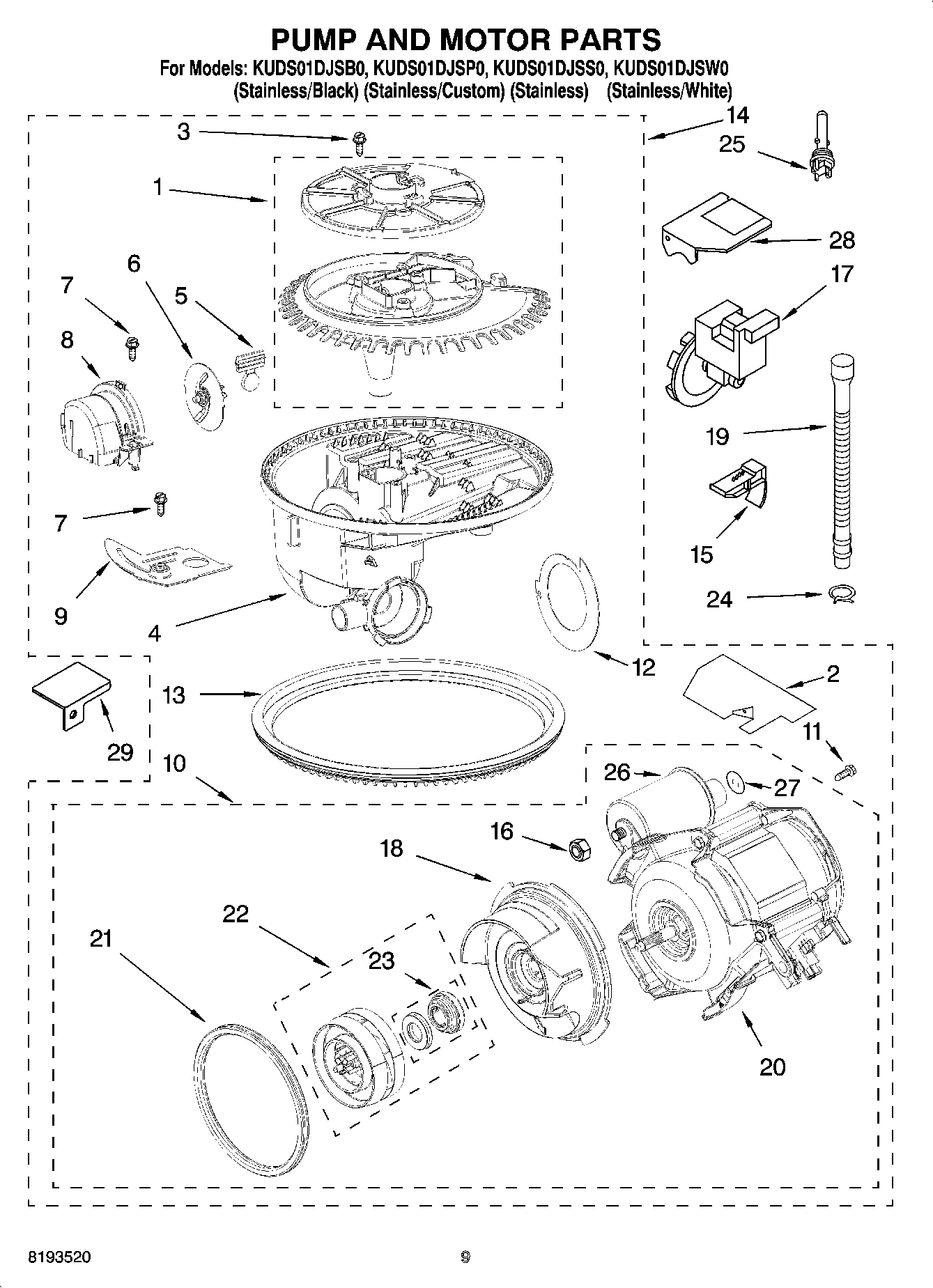

KUDS01DJSW0 08 – PUMP AND MOTOR PARTS

Products

Position	Product
1	8193918 Whirlpool Accumulator
2	WP8268522 Whirlpool Dishwasher Retainer
3	Screw
4	Sump
5	WP8268375 Whirlpool Dishwasher Check Valve
6	W10083957V Whirlpool Dishwasher Chopper
7	WP9741232 Whirlpool Dishwasher Screw
8	WP8531857 Whirlpool Dishwasher Protector
11	3400217 Whirlpool Dishwasher Screw
12	8268391 Whirlpool Dishwasher Screen
13	Seal, Sump
14	W10782773 Whirlpool Diswasher Pump & Motor Assembly
15	WPW10300599 Whirlpool Dishwasher Sump Tab
16	Nut
17	Pump, Drain
19	8269144A Whirlpool Dishwasher Drain Hose
21	W11622922 Whirlpool Dishwasher Volute
22	WPW10757217 Whirlpool Circulation Pump and Motor
23	8193951A Whirlpool Impeller Assembly
24	WP356138 Whirlpool Hose Clamp
25	Thermister
26	WPW10334457 Whirlpool Dishwasher Capacitor
27	Shield, Capacitor
28	Shield, Drain Pump
29	Shield, Pressure Switch
