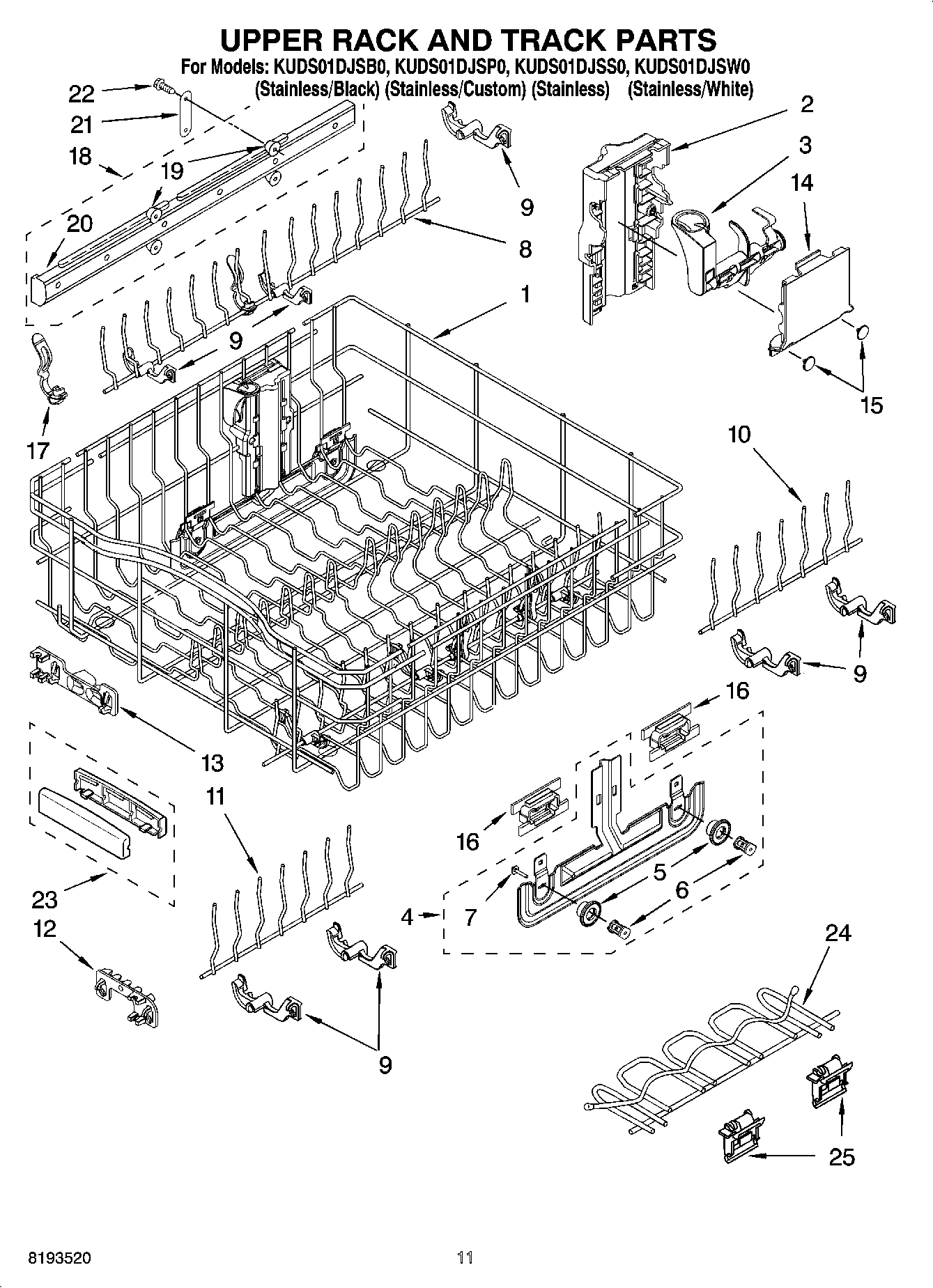

KUDS01DJSW0 09 – UPPER RACK AND TRACK PARTS

Products

Position	Product
1	8193944 Whirlpool Dishwasher Rack Assembly
2	8193741 Whirlpool Dishwasher Adjuster P1
3	Actuator, Adjuster (Also Order Item 15) (Right Hand)
3	WP8268701 Whirlpool Dishwasher Adjuster
4	W10728567 Whirlpool Dishwasher Adjuster
5	WP8270138 Whirlpool Dishwasher Upper Wheel
6	WP8268703 Whirlpool Dishwasher Rack Axle
7	WP8281156 Whirlpool Dishwasher Screw
8	W10727426 Whirlpool Dishwasher Rack Tine
9	Clip, Pivot
10	Tine Row, Rear
11	Tine Row, Front
12	Positioner, Dual
13	Positioner, Multi
15	WP3400918 Whirlpool Fastener
16	WP8268738 Whirlpool Dishwasher Positioner
17	Clip, No-Flip
18	W10404344 Whirlpool Dishwasher Track
19	Mount, Track (Also Order Item 21)
20	WP8270136 Whirlpool Dishwasher Stop
21	WP9743002 Whirlpool Dishwasher Gasket
22	WPW10348407 Whirlpool Dishwasher Screw
23	Handle, Dishrack
24	W11125975 Whirlpool Dishwasher Cup Shelf
25	Clip, Cupshelf
