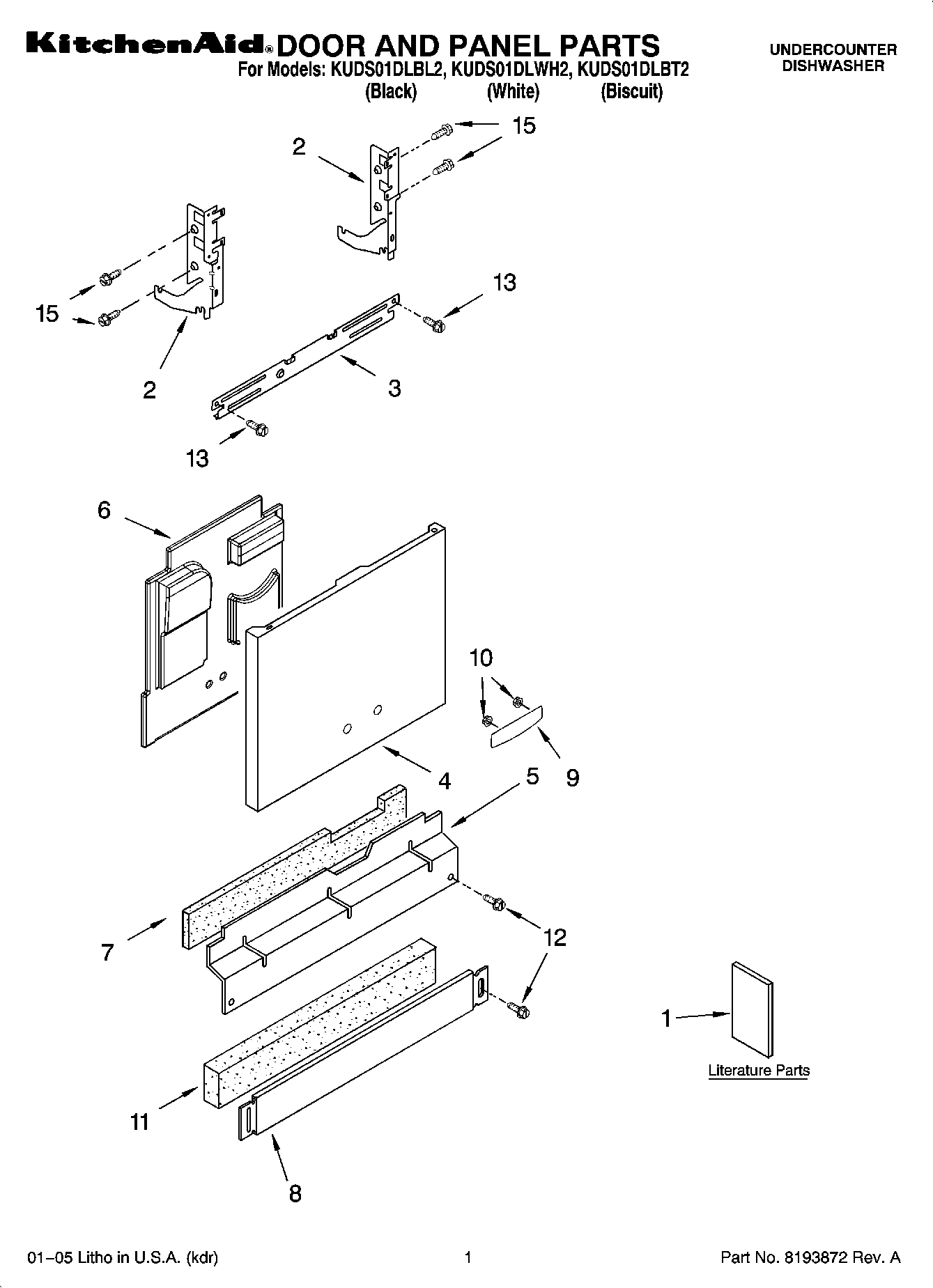

KUDS01DLBL2 01 – DOOR AND PANEL PARTS

Products

Position	Product
1	Literature Parts (Guide, Use & Care Tech Sheet)
1	Literature Parts (English/French)
1	Literature Parts (Guide, Energy)
1	Literature Parts (Instructions, Installation)
2	W11612302 Whirlpool Dishwasher Door Hinge
2	W11612303 Whirlpool Door Hinge
3	Stiffener, Door
4	Panel Front (Includes Item 6) (Black)
4	Panel Front (Includes Item 6) (Biscuit)
4	Panel Front (Includes Item 6) (White)
5	W10871198 Whirlpool Dishwasher Panel
5	W10909064 Whirlpool Dishwasher Black Access Panel
5	W10909066 Whirlpool Dishwasher Panel
6	Brace, Foam
8	WPW10586591 Whirlpool Dishwasher Toe Panel
8	Toe Panel (Includes Item 11) (Biscuit)
9	Nameplate (White)
9	Nameplate (Black)
9	Nameplate (Biscuit)
10	WP2004333 Whirlpool Refrigerator Nut
11	SHIELD
12	WP302868 Whirlpool Screw
13	WP489069 Whirlpool Compactor Screw
15	WP3400071 Whirlpool Screw
