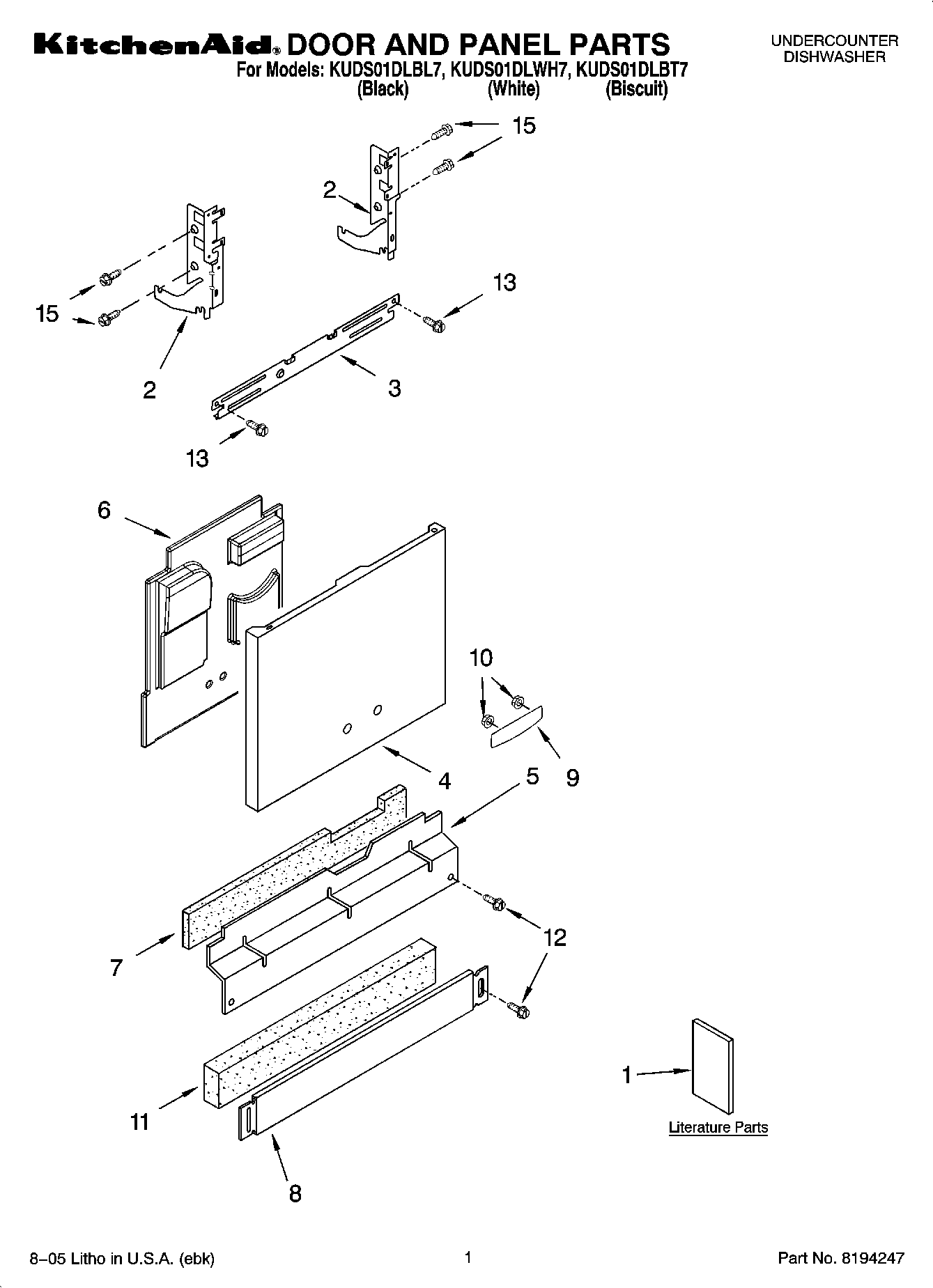

KUDS01DLBL7 01 – DOOR AND PANEL PARTS

KUDS01DLBL7 01 – DOOR AND PANEL PARTS

Written by

in

KUDS01DLBL7 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1Guide, Consumer Reference
1Guide, Use & Care
1Guide, Use & Care DVD Tech Sheet
1English/French
1Instructions, Installation
1Energy Guide
2W11612303 Whirlpool Door Hinge
2W11612302 Whirlpool Dishwasher Door Hinge
3Stiffener, Door
4Panel Front (Includes Item 6) (Black)
4Panel Front (Includes Item 6) (White)
4Panel Front (Includes Item 6) (Biscuit)
5W10871198 Whirlpool Dishwasher Panel
5W10909066 Whirlpool Dishwasher Panel
6Brace, Foam
8WPW10586591 Whirlpool Dishwasher Toe Panel
8W10909064 Whirlpool Dishwasher Black Access Panel
8Toe Panel (Includes Item 11) (Biscuit)
9Nameplate (White)
9Nameplate (Biscuit)
9Nameplate (Black)
10WP2004333 Whirlpool Refrigerator Nut
11SHIELD
12WPW10503550 Whirlpool Dishwasher Retainer
12WP302868 Whirlpool Screw
12WPW10503549 Whirlpool Dishwasher Retainer Clip
13WP489069 Whirlpool Compactor Screw
15WP3400071 Whirlpool Screw
