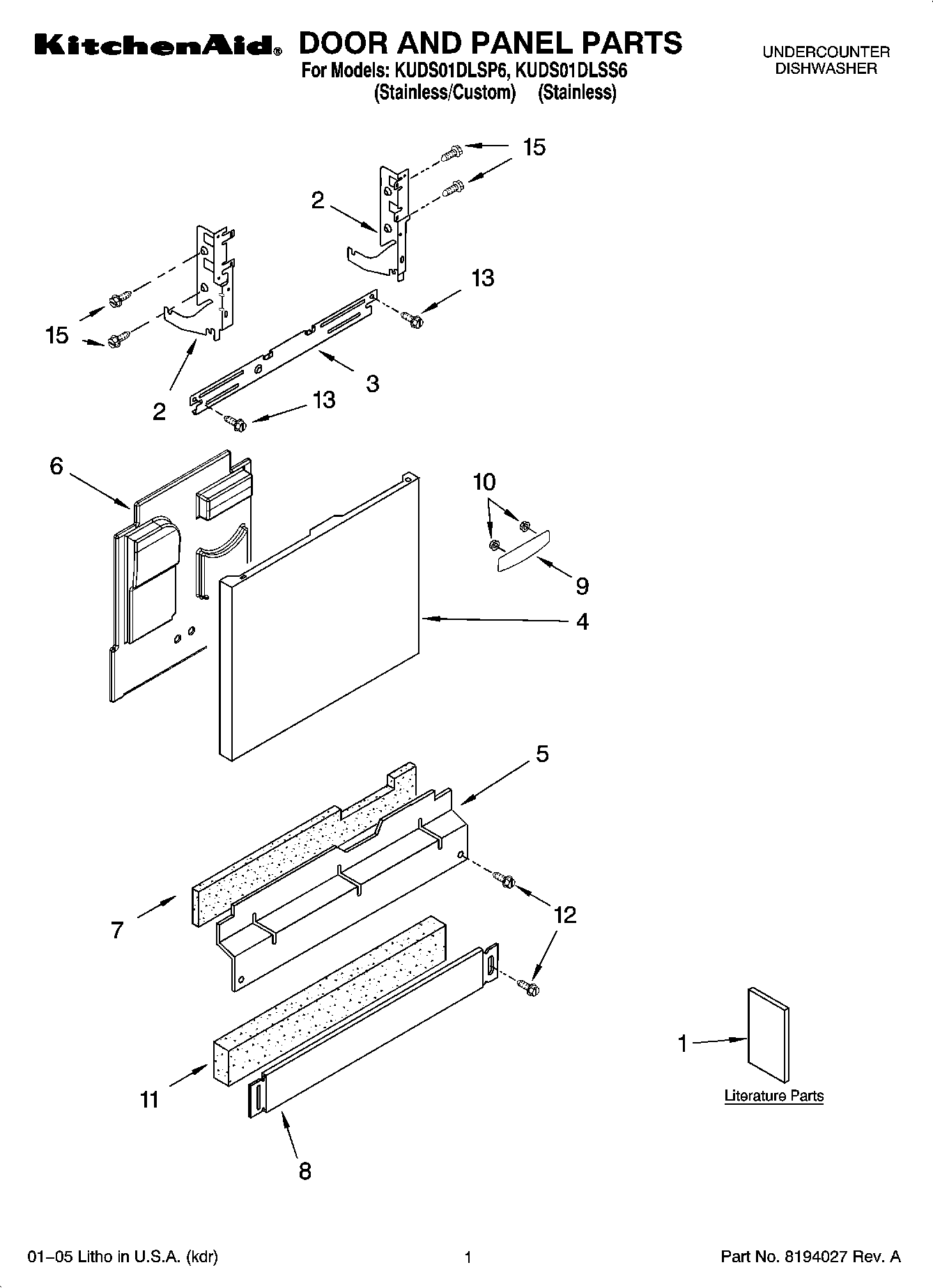

KUDS01DLSS6 01 – DOOR AND PANEL PARTS

KUDS01DLSS6 01 – DOOR AND PANEL PARTS

Written by

in

KUDS01DLSS6 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1Energy Guide
1Instructions, Installation
1English/French
1Guide, Use & Care DVD Tech Sheet
1Guide, Use & Care
2W11612302 Whirlpool Dishwasher Door Hinge
2W11612303 Whirlpool Door Hinge
3Stiffener, Door
4W10301577 Whirlpool Outer Door Panel
4Panel Front (Custom Panel Ready)
6Brace, Foam
8W10909064 Whirlpool Dishwasher Black Access Panel
9Nameplate (Black)
10WP2004333 Whirlpool Refrigerator Nut
11SHIELD
12WP302868 Whirlpool Screw
13WP489069 Whirlpool Compactor Screw
15WP3400071 Whirlpool Screw
