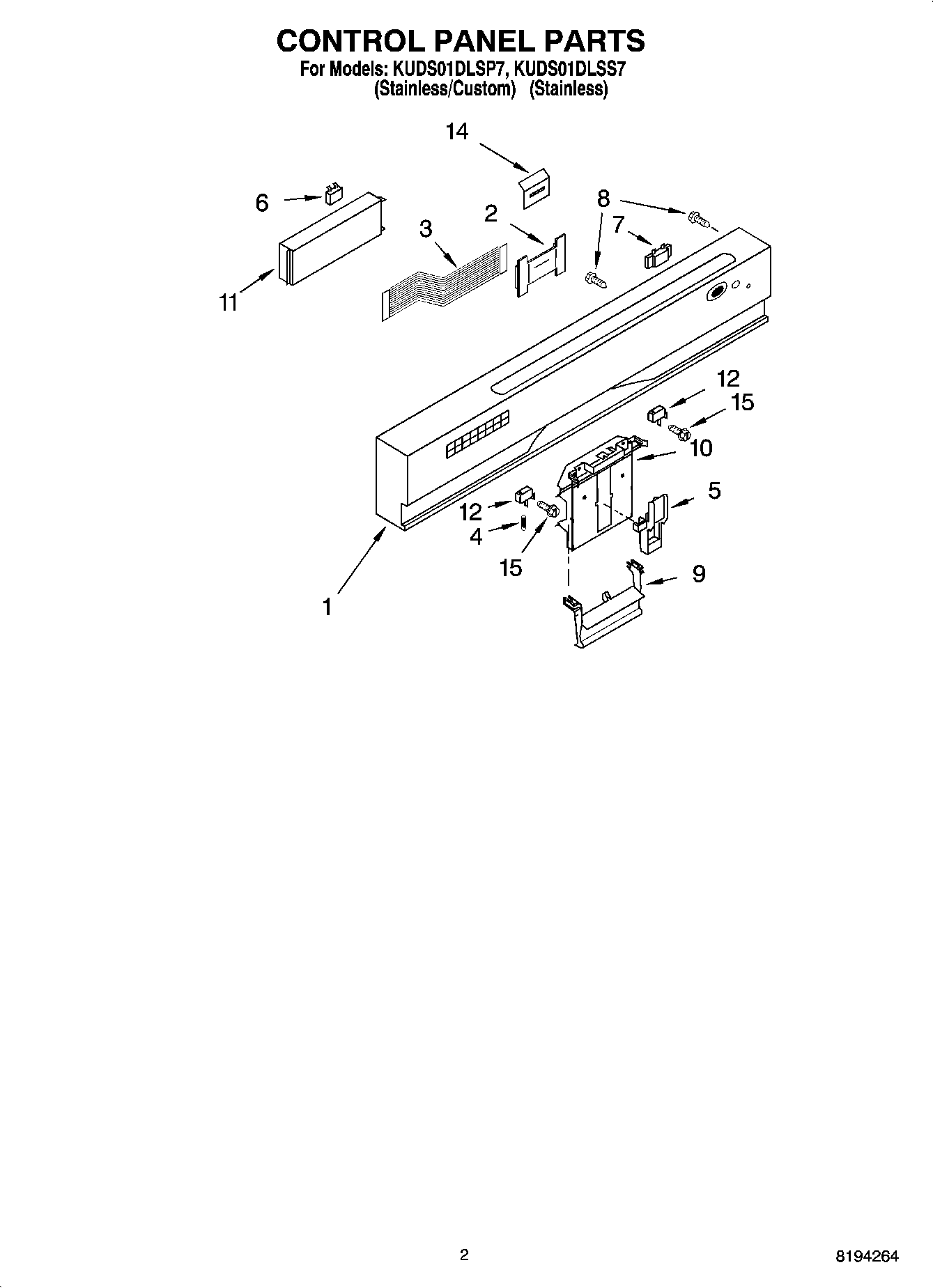

KUDS01DLSS7 02 – CONTROL PANEL PARTS

Products

PositionProduct
1Console Asm. (Includes Active Overlay, Insert, & Items 2 & 3)
2Board, Interconnect
3Tail – Active Overlay
4WP8268540 Whirlpool Door Handle Spring
5WP8524471 Whirlpool Dishwasher Actuator
68193762 Whirlpool Fuse Kit
7WP8269206 Whirlpool Dishwasher Display
8WPW10348409 Whirlpool Screw
9WP8269117 Whirlpool Dishwasher Handle
108193882 Whirlpool Dishwasher Primary Latch Bolt
11Control, Electronic
12WP8269209 Whirlpool Door Switch
14Shield
15WP3400412 Whirlpool Dishwasher Screw
