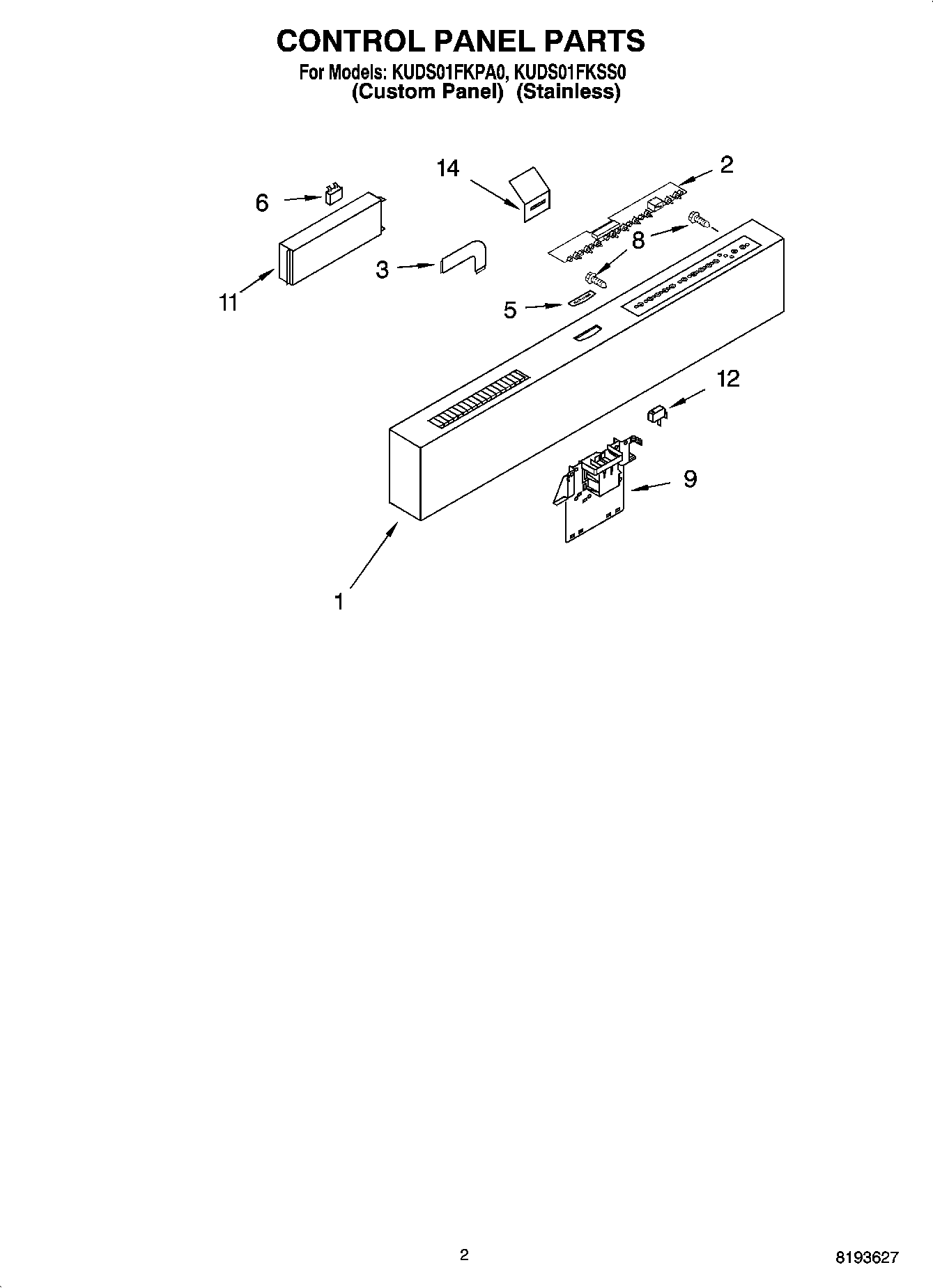

KUDS01FKPA0 02 – CONTROL PANEL PARTS

Products

Position	Product
1	WP8524443 Whirlpool Dishwasher Control Panel
2	WP8270168-includeCORE Whirlpool WP8270168 Dishwasher Electronic Control Board
3	Cable, Ribbon
5	Medallion
6	8193762 Whirlpool Fuse Kit
8	WPW10348409 Whirlpool Screw
9	8193830 Whirlpool Dishwasher Door Latch Switch Kit
11	Control, Electronic
12	WP8269209 Whirlpool Door Switch
14	Shield
