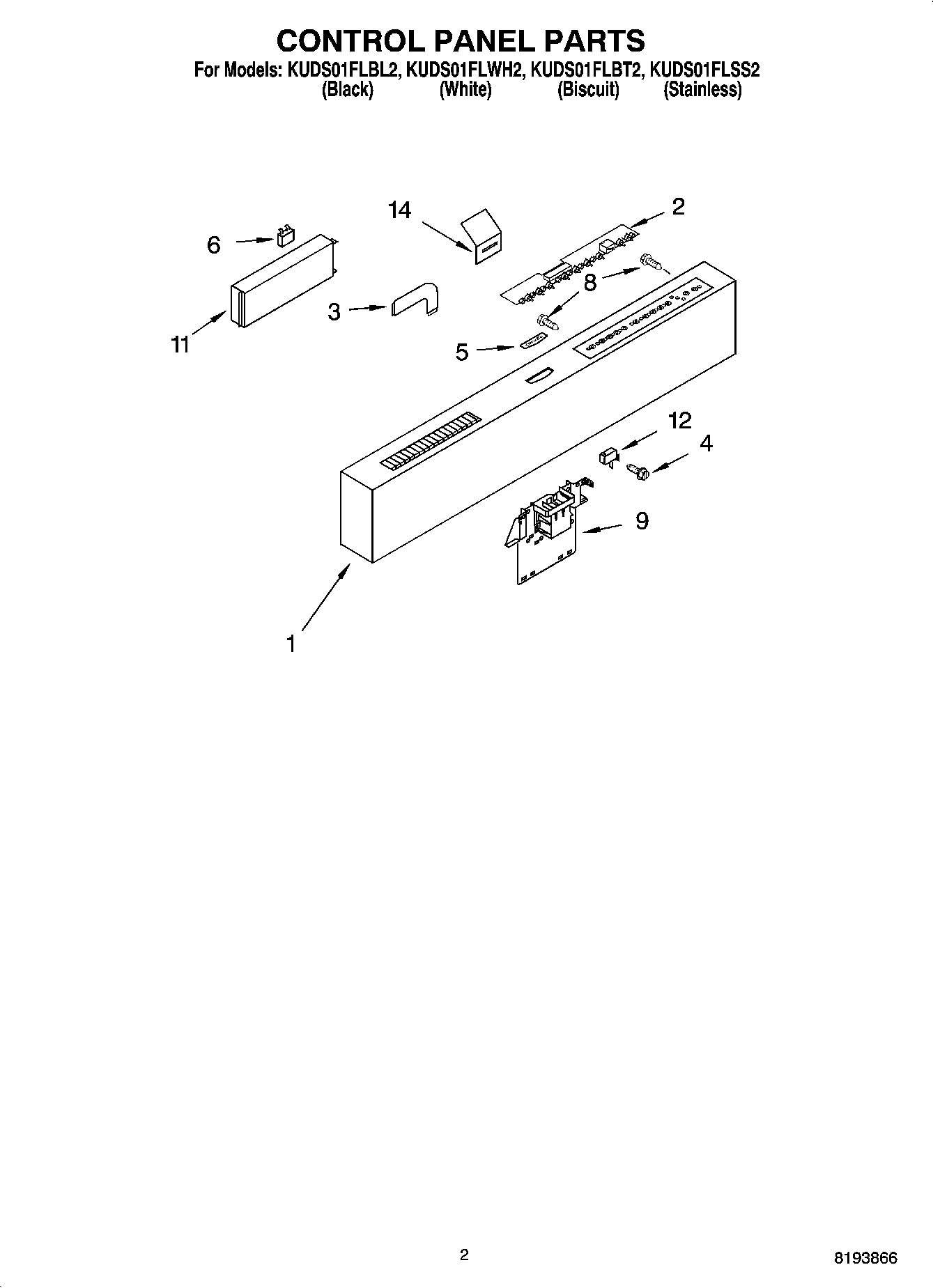

KUDS01FLBL2 02 – CONTROL PANEL PARTS

Products

PositionProduct
1W10775980 Whirlpool Black Touch Control Panel
2WP8270168-includeCORE Whirlpool WP8270168 Dishwasher Electronic Control Board
3Cable, Ribbon
4WP3400412 Whirlpool Dishwasher Screw
5Medallion
68193762 Whirlpool Fuse Kit
8WPW10348409 Whirlpool Screw
98193830 Whirlpool Dishwasher Door Latch Switch Kit
11Control, Electronic
12WP8269209 Whirlpool Door Switch
14Shield
