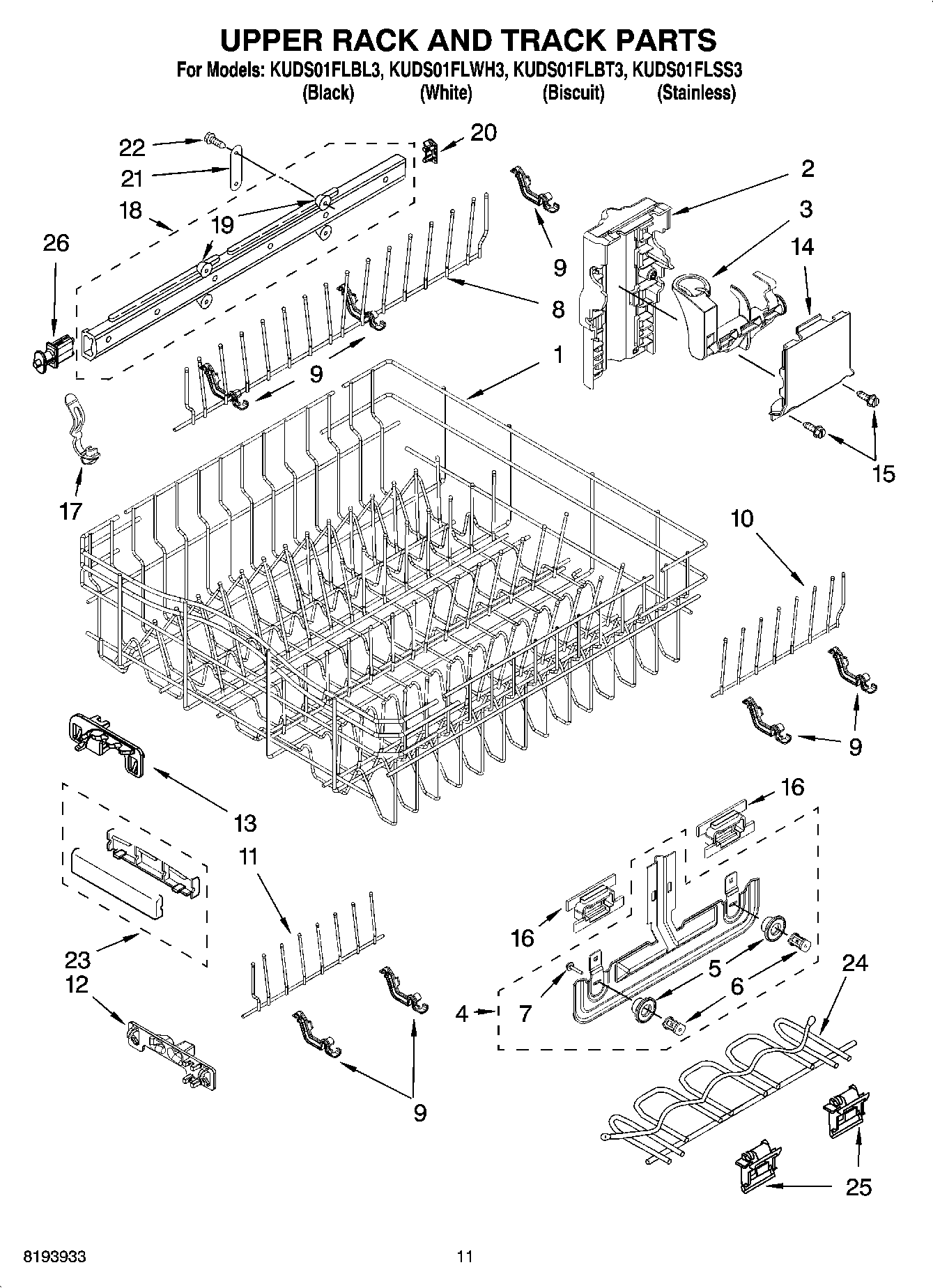

KUDS01FLBL3 09 – UPPER RACK AND TRACK PARTS

Products

Position	Product
1	W10727422 Whirlpool Dishwasher Dishrack
2	8193741 Whirlpool Dishwasher Adjuster P1
3	Actuator, Adjuster (Left Hand)
3	Actuator, Adjuster (Right Hand)
4	W10728567 Whirlpool Dishwasher Adjuster
5	WP8270138 Whirlpool Dishwasher Upper Wheel
6	WP8268703 Whirlpool Dishwasher Rack Axle
7	WP8281156 Whirlpool Dishwasher Screw
8	W10727426 Whirlpool Dishwasher Rack Tine
9	PIVOT-TINE
11	Tine Row, Rear
12	WP8539102 Whirlpool Dishwasher Positioner
13	WP8539103 Whirlpool Dishwasher Positioner
15	WP9741232 Whirlpool Dishwasher Screw
16	WP8268738 Whirlpool Dishwasher Positioner
17	WP8539101 Whirlpool Dishwasher Clip
18	W10404344 Whirlpool Dishwasher Track
19	Mount, Track (Also Order Item 21)
20	WP8270136 Whirlpool Dishwasher Stop
21	WP9743002 Whirlpool Dishwasher Gasket
22	WPW10348407 Whirlpool Dishwasher Screw
23	Handle, Dishrack
24	W11125975 Whirlpool Dishwasher Cup Shelf
25	Clip, Cupshelf
26	Stop, Track Removable
