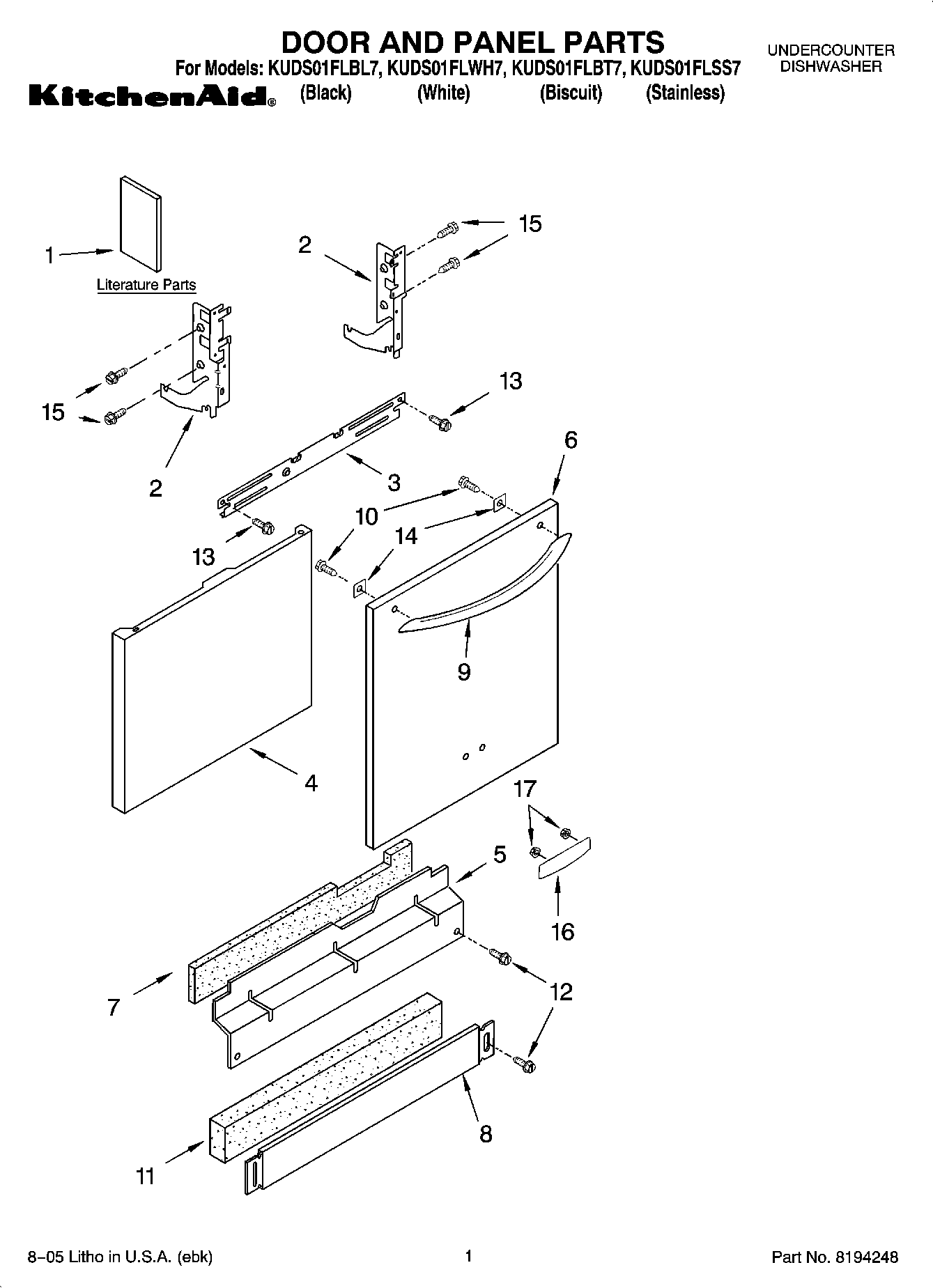

KUDS01FLBL7 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1Guide, Consumer Reference
1Energy Guide
1Instructions, Installation
1English/French
1Guide, Use & Care DVD Tech Sheet
1Guide, Use & Care
2W11612303 Whirlpool Door Hinge
2W11612302 Whirlpool Dishwasher Door Hinge
3Stiffener, Door
4W11113792 Whirlpool Dishwasher Panel
5W10909066 Whirlpool Dishwasher Panel
5W10871198 Whirlpool Dishwasher Panel
6Panel, Full Front W/Nameplate (Black)
6Panel, Full Front W/Nameplate (White)
6Panel, Full Front W/Nameplate (Biscuit)
6Panel, Full Front W/Nameplate (Stainless)
8WPW10586591 Whirlpool Dishwasher Toe Panel
8W10909064 Whirlpool Dishwasher Black Access Panel
8Toe Panel (Includes Item 11) (Biscuit)
9Handle (Includes Items 6 & 10) (Biscuit)
9Handle (Includes Items 6 & 10) (White)
9Handle (Includes Items 6 & 10) (Black)
9Handle (Includes Items 6 & 10) (Stainless)
10Screw
11SHIELD
12WP302868 Whirlpool Screw
13WP489069 Whirlpool Compactor Screw
14Washer
15WP3400071 Whirlpool Screw
16Nameplate (Biscuit)
16Nameplate (White)
16Nameplate (Black)
17WP2004333 Whirlpool Refrigerator Nut
