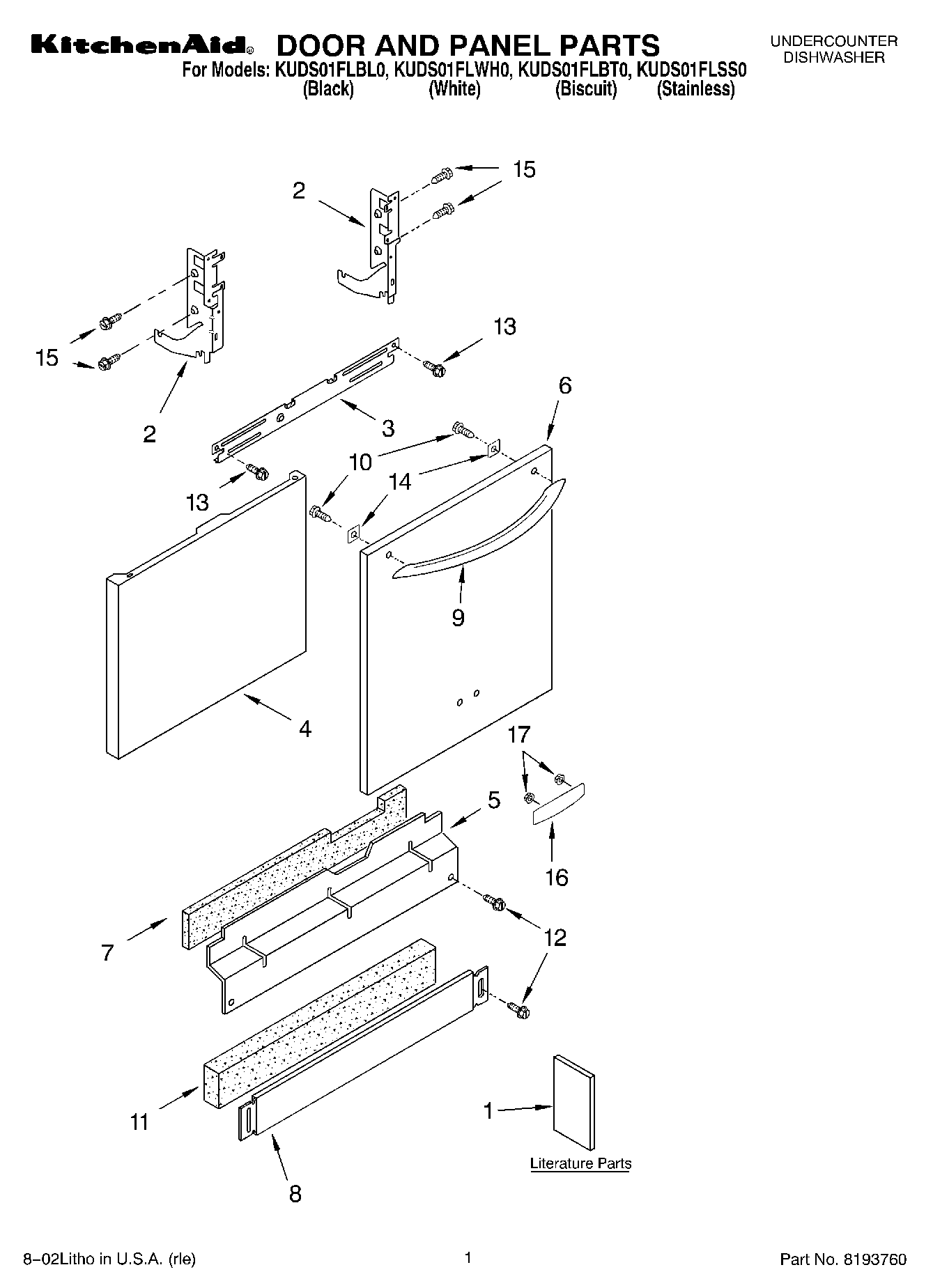

KUDS01FLBS0 01 – DOOR AND PANEL, LITERATURE

KUDS01FLBS0 01 – DOOR AND PANEL, LITERATURE

Written by

in

KUDS01FLBS0 01 – DOOR AND PANEL, LITERATURE

Products

PositionProduct
1Literature Parts (Guide, Use & Care Tech Sheet)
1Literature Parts (English/French)
1Literature Parts (Guide, Energy)
1Literature Parts (Instructions, Installation)
2W11612302 Whirlpool Dishwasher Door Hinge
2W11612303 Whirlpool Door Hinge
3Stiffener, Door
4W11113792 Whirlpool Dishwasher Panel
5W10909066 Whirlpool Dishwasher Panel
5W10909064 Whirlpool Dishwasher Black Access Panel
5W10871198 Whirlpool Dishwasher Panel
6Panel, Full Front W/Nameplate (Biscuit)
6Panel, Full Front W/Nameplate (White)
6Panel, Full Front W/Nameplate (Black)
6Panel, Full Front W/Nameplate (Stainless)
8WPW10586591 Whirlpool Dishwasher Toe Panel
8Toe Panel (Includes Item 11) (Biscuit)
9Handle (Stainless)
9Handle (Black)
9Handle (White)
9Handle (Biscuit)
10Screw
11SHIELD
12WP302868 Whirlpool Screw
13WP489069 Whirlpool Compactor Screw
14Plate, Backing
15WP3400071 Whirlpool Screw
16Nameplate (White)
16Nameplate (Black)
16Nameplate (Biscuit)
17WP2004333 Whirlpool Refrigerator Nut
