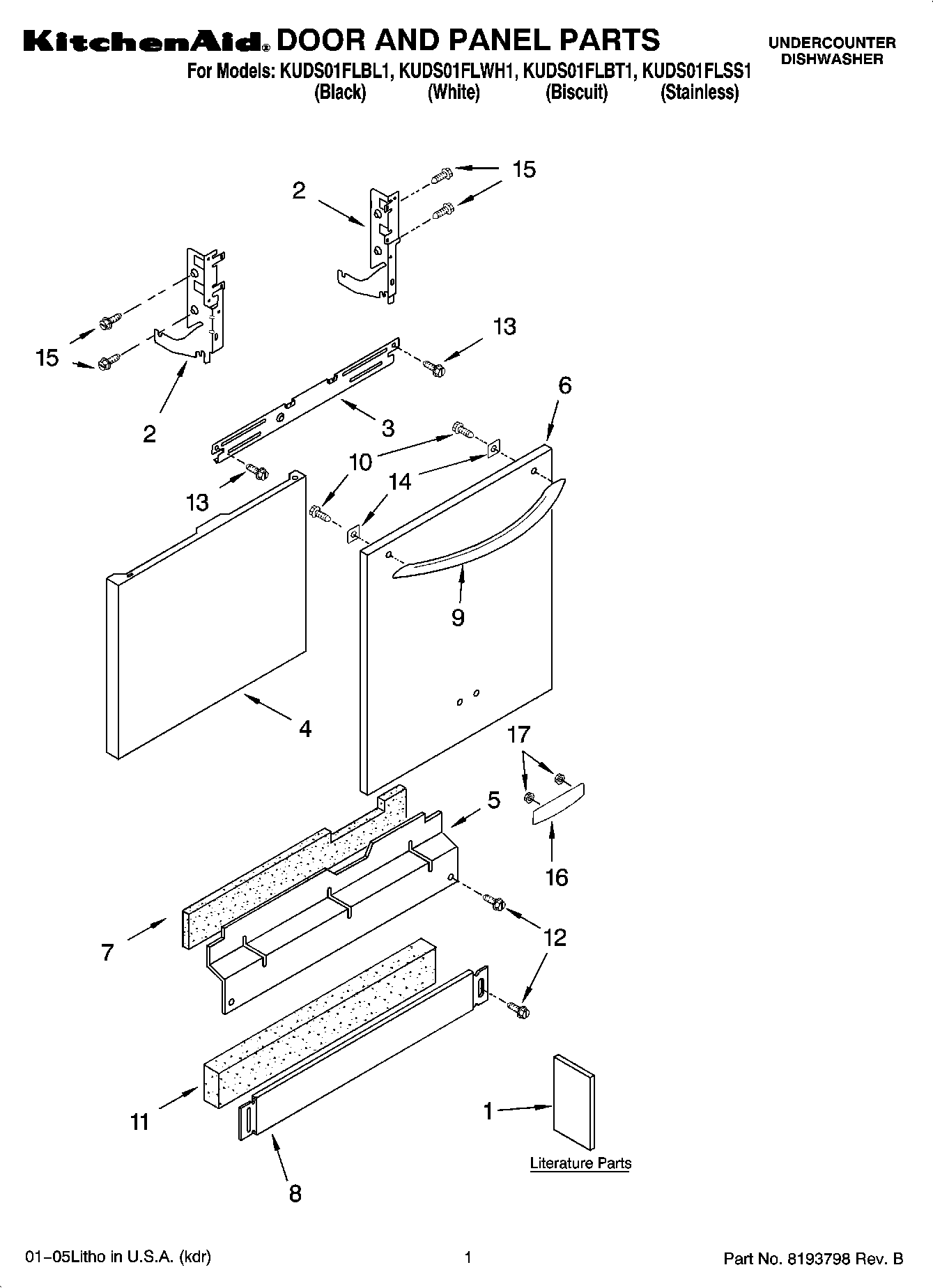

KUDS01FLBT1 01 – DOOR AND PANEL PARTS

Products

Position	Product
1	Literature Parts (Guide, Use & Care Tech Sheet)
1	Literature Parts (English/French)
1	Literature Parts (Guide, Energy)
1	Literature Parts (Instructions, Installation)
2	W11612302 Whirlpool Dishwasher Door Hinge
2	W11612303 Whirlpool Door Hinge
3	Stiffener, Door
4	W11113792 Whirlpool Dishwasher Panel
5	W10909066 Whirlpool Dishwasher Panel
5	W10909064 Whirlpool Dishwasher Black Access Panel
5	W10871198 Whirlpool Dishwasher Panel
6	Panel, Full Front W/Nameplate (Biscuit)
6	Panel, Full Front W/Nameplate (White)
6	Panel, Full Front W/Nameplate (Black)
6	Panel, Full Front W/Nameplate (Stainless)
8	WPW10586591 Whirlpool Dishwasher Toe Panel
8	Toe Panel (Includes Item 11) (Biscuit)
9	Handle (Stainless)
9	Handle (Black)
9	Handle (White)
9	Handle (Biscuit)
10	Screw
11	SHIELD
12	WP302868 Whirlpool Screw
13	WP489069 Whirlpool Compactor Screw
14	Plate, Backing
15	WP3400071 Whirlpool Screw
16	Nameplate (White)
16	Nameplate (Black)
16	Nameplate (Biscuit)
17	WP2004333 Whirlpool Refrigerator Nut
