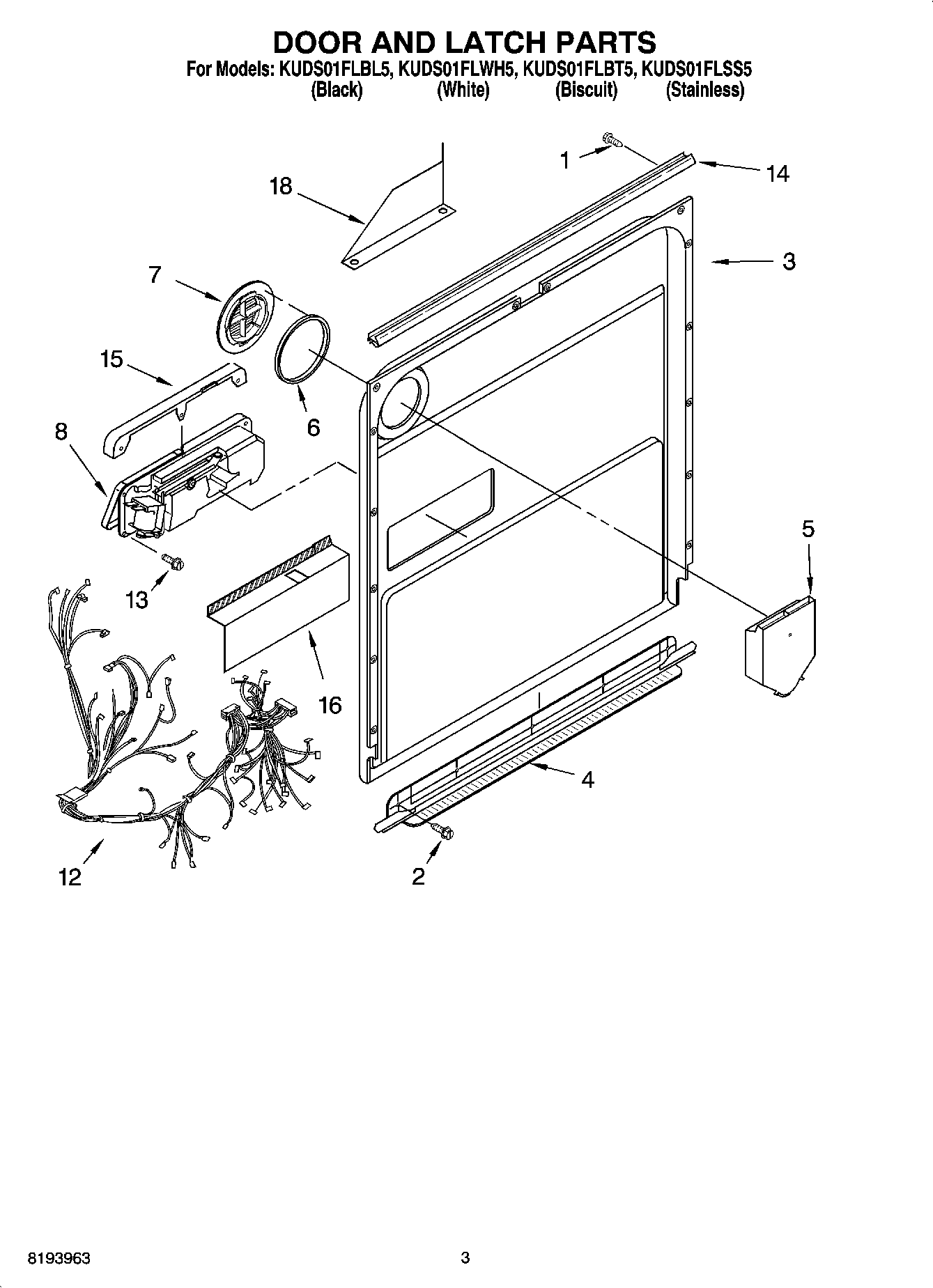

KUDS01FLWH5 03 – DOOR AND LATCH PARTS

Products

Position	Product
1	WPW10348409 Whirlpool Screw
2	W11631670 Whirlpool Screw
3	Inner Door Mastic Assembly (Also Order Item 6)
4	WP8268937 Whirlpool Dishwasher Air Inlet
5	W10328540 Whirlpool Dishwasher Vent Assembly
6	WP8269259 Whirlpool Air Vent Gasket
7	WP8545536 Whirlpool Dishwasher Deflector
8	WP8558129 Whirlpool Dishwasher Detergent Dispenser
12	Wiring Harness & Protector
13	WPW10177098 Whirlpool Dishwasher Screw
14	WP8535660 Whirlpool Dishwasher Seal
15	WPW10462232 Whirlpool Dishwasher Dispenser Mounting Bracket
16	Shield, Dispenser
18	Shield, Solenoid
